RM-200X Remote Microphone ราคา 19,240.- RM-200X Remote Microphone ราคา 19,240.-
RM-200X Remote Microphone ราคา 19,240.- RM-200X Remote Microphone ราคา 19,240.-
หมวดหมู่สินค้า: ประกาศเสียงตามสาย TOA
รหัส : RM-200X
RM-200X The RM-200X is a dedicated unit for the VX-2000 system, and permits emergency broadcast as well as general-purpose broadcast.  Specification  * 0 dB = 1 V Power Source 24 V DC (operating range: 16 - 40 V DC),
ราคา 19,240.00 บาท

15 สิงหาคม 2017

ผู้ชม 370 ผู้ชม

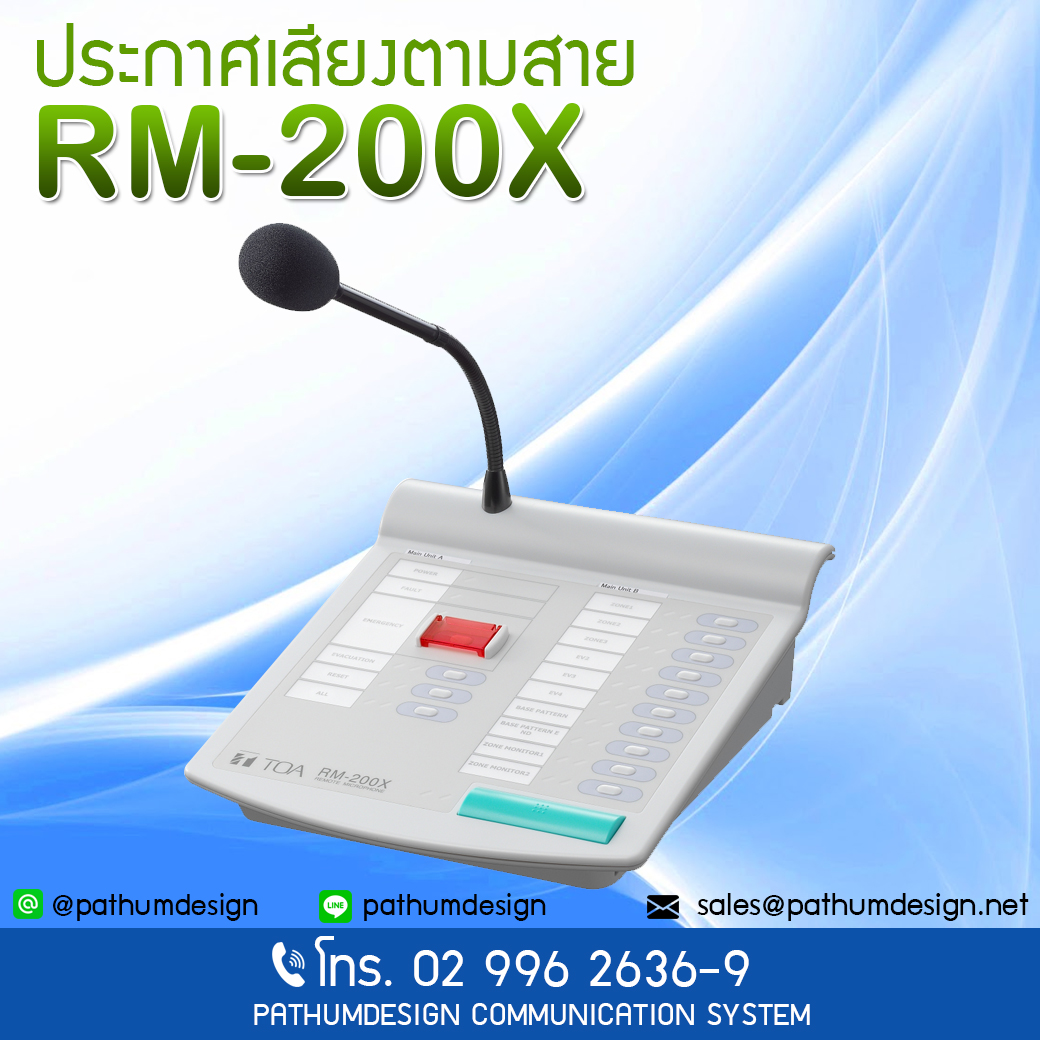

RM-200X

The RM-200X is a dedicated unit for the VX-2000 system, and permits emergency broadcast as well as general-purpose broadcast.



Specification
* 0 dB = 1 V
Power Source 24 V DC (operating range: 16 - 40 V DC), supplied from RJ45 connector
or power input jack (non-polarity type)
Usable power input plug: 5.5 mm outer diameter, 2.1 mm inner diameter,
and 9.5 mm long.
Current Consumption Under 200 mA (RM-200X), 750 mA (with 9 RM-210s connected)
Audio Output 0 dB*, 600 Ω, balanced, RJ45 connector
Gooseneck Microphone Unidirectional electret condenser microphone
External Microphone Input -40 dB*, 2.2 kΩ, unbalanced, mini jack, phantom powering
Distortion Under 1%
Frequency Response 100 - 20,000 Hz
S/N Ratio Over 60 dB
Internal Monitor Speaker 200 mW
Volume Control Microphone volume control, Monitor speaker volume control
Number of Function Keys 15, extendable up to 105 (with 9 RM-210s connected)
Key Extension 10 keys extension per RM-210, EXTENSION connector
Number of Connectable Units 8 (include RM-200XF)
Communication System LONWORKS Twisted Pair Free Topology Transceiver
Connection Cable and Connector Category 5 STP cable, RJ45 connector
Communication Distance 500 m (Free topology wiring)
Finish ABS resin, blueish gray (PANTONE 538 or its equivalent)
Dimensions 190 (W) × 76.5 (H) × 215 (D) mm (gooseneck microphone excluded)
Weight 850 g
