หมวดหมู่สินค้า: TOA
รหัส : PS15TOA1606
สินค้ารับประกัน 1 ปี
ราคายังไม่รวมภาษีมูลค่าเพิ่ม 7% ค่าแรงติดตั้ง และค่าจัดส่ง
จาก 43,000.00 บาท
ลดทันที 5%
ราคา 40,850.00 บาท
04 กุมภาพันธ์ 2569
ผู้ชม 6 ผู้ชม

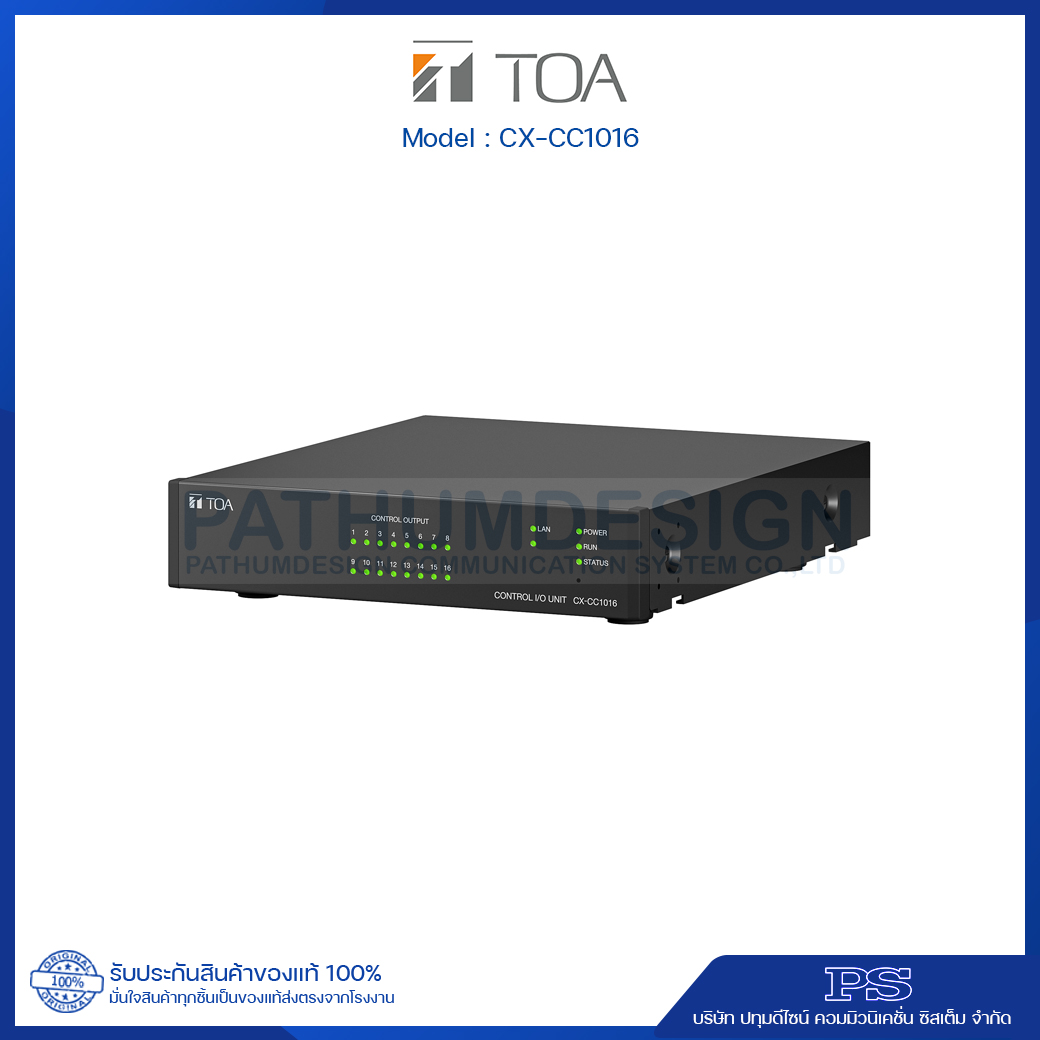

CX-CC1016 Control I/O Unit
- 16-channel relay inputs and outputs control unit for external device integration
- Supports no-voltage dry contact inputs with 24 V DC open voltage
- Maximum relay contact capacity of 30 V DC/1.0 A for outputs
- Single LAN port with 100Base-TX network interface
- Reset key for easy system reboot
- Compact design for desktop, rack, or wall mounting
- 24 V DC power input with removable terminal block
Specifications
| Model | CX-CC1016 |
| Power Supply | 24 V DC (operating range: 21.6 - 26.4 V DC) Removable terminal block ( 2 pins) or use of the optional AC adapter |
| Current Consumption | 230mA |
| Power Consumption | 5.5 W |
| Operation | Reset key x 1 |
| Indicators | LED indicators: LAN (green) x 1, POWER (green) x 1, RUN (green) x 1, STATUS (yellow, red, green) x 1 Control output indicators: CONTROL OUTPUT (green) x 16 |

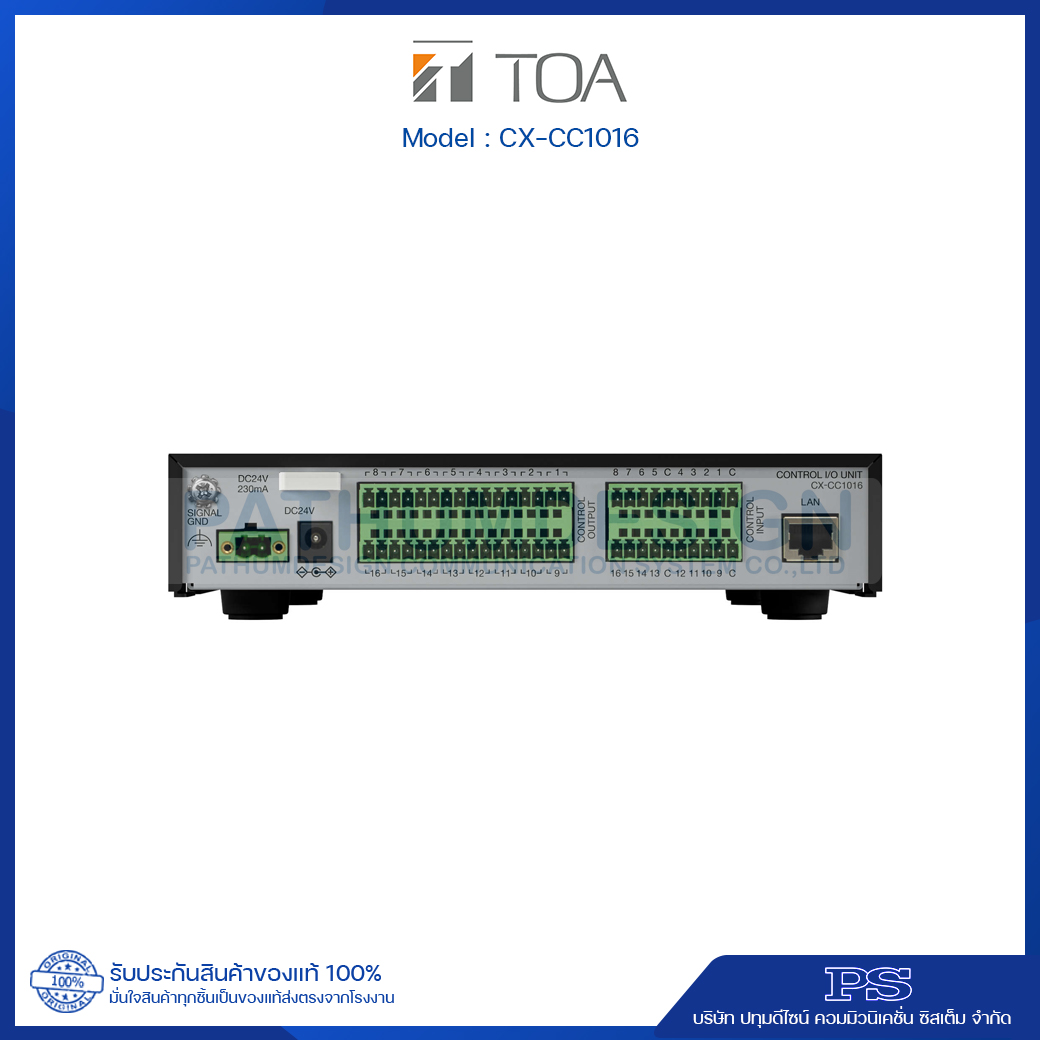

| Control Input | 16 channels, no-voltage make contact input, open voltage: 24 V DC, short-circuit current: 10 mA or less, removable terminal block (10 pins x 2) |
| Control Output | 16 channels, relay contact output, maximum contact capacity: 30 V DC/1.0 A removable terminal block (16 pins x 2) |
| Installation Method | Desktop, rack, or wall mounting (Rack or wall mounting needs optional brackets.) |
| Operating Temperature | 0° c to +40 ° c |
| Operating Humidity | 90 %RH (no condensation) |
| Finish | Panel, Case: Pre-coated steel plate, black, 30% gloss |
| Dimensions | 210 (W) X 44.3 (H) X 266.7 (D) mm |
| Weight | 1.5 kg |
| Accessory | Removable terminal plug (2 pins) ···1, Removable terminal plug (10 pins) ···2, Removable terminal plug ( 16 pins) ··-2, Plastic foot ···4, Screw for fitting plastic foot |
| Option | AC adaptor: AD-246 Wall mounting bracket: YC-850 Half width blank panel: MB-15B-BK (for rack mounting one CX-CC1016 unit) Rack joint bracket: MB-15B-J (for rack mounting two CX-CC1016 units) |
