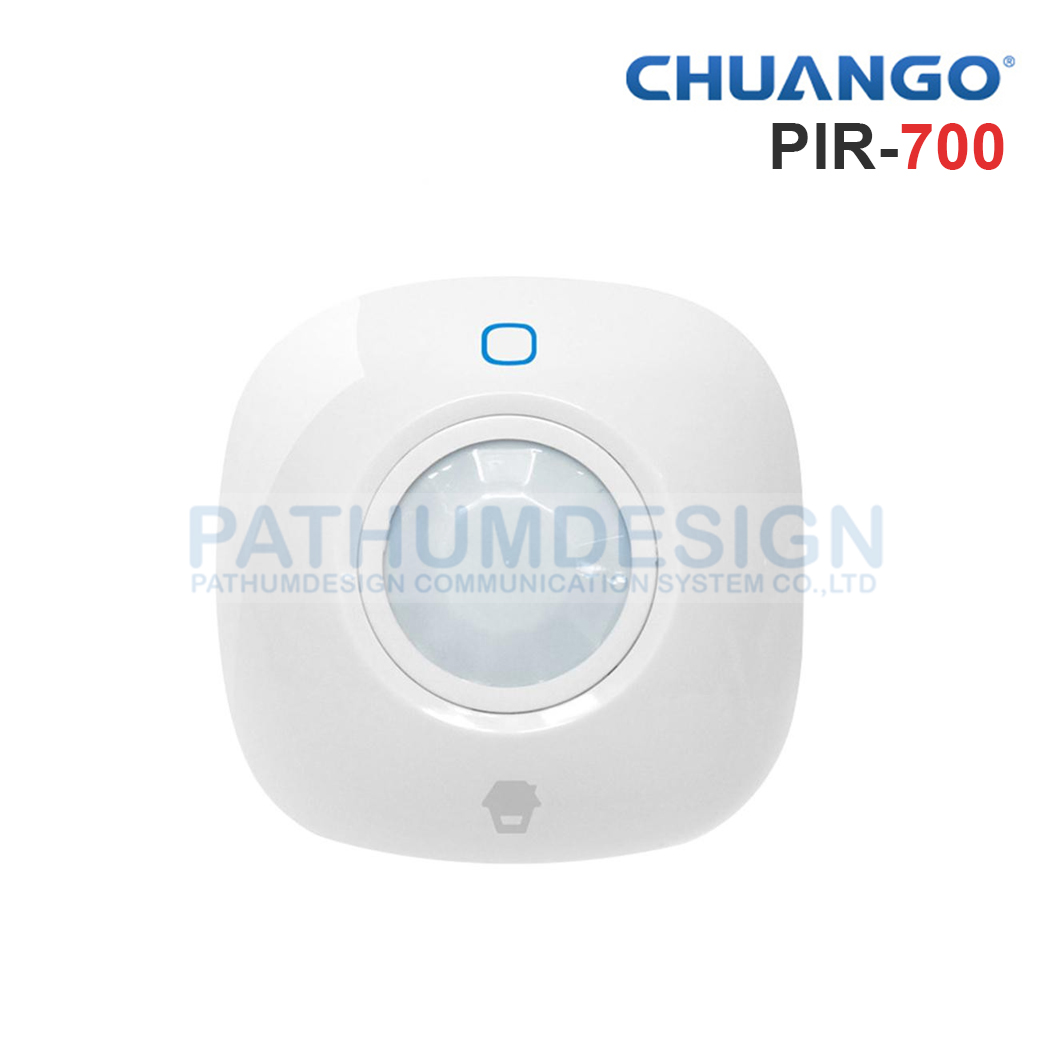

อุปกรณ์แจ้งเตือนเหตุ CHUANGO Normal รุ่น PIR-700
Ceiling-Mounted PIR Motion Detector
Features
With automatic temperature compensation and anti-draft technology, the sensor detects for tiny
variations in the environment caused by human body movements and effectively minimizes false alarms.
Easy to set up on a ceiling, it works well in banks, warehouses and all family settings, with a 360-degree effective range.
Specifications
- Power Supply DC 3V (AA LR6 1.5V Batter y x 2pcs)
- Static Current ≤50uA
- Alarm Current ≤9.5mA
- Installation Height 2.5-6m
- Detection Scope Dia. 6m/360°(when installation height is 3.6m)
- Transmitting Distance ≤80m (in open area)
- Radio Frequency 315MHz or 433.92.92MHz (±75KHz)
- Housing Material PC+ABS Plastic
- Operation Condition Temperature: -10°C~+55°C
- Relative Humidity: ≤80% (non-condensing)
- Detector Dimensions 90 x 90 x 36.8mm (L x W x H)
- Mounting Plate Dimensions 56 x 56 x 8mm (L x W x H)
