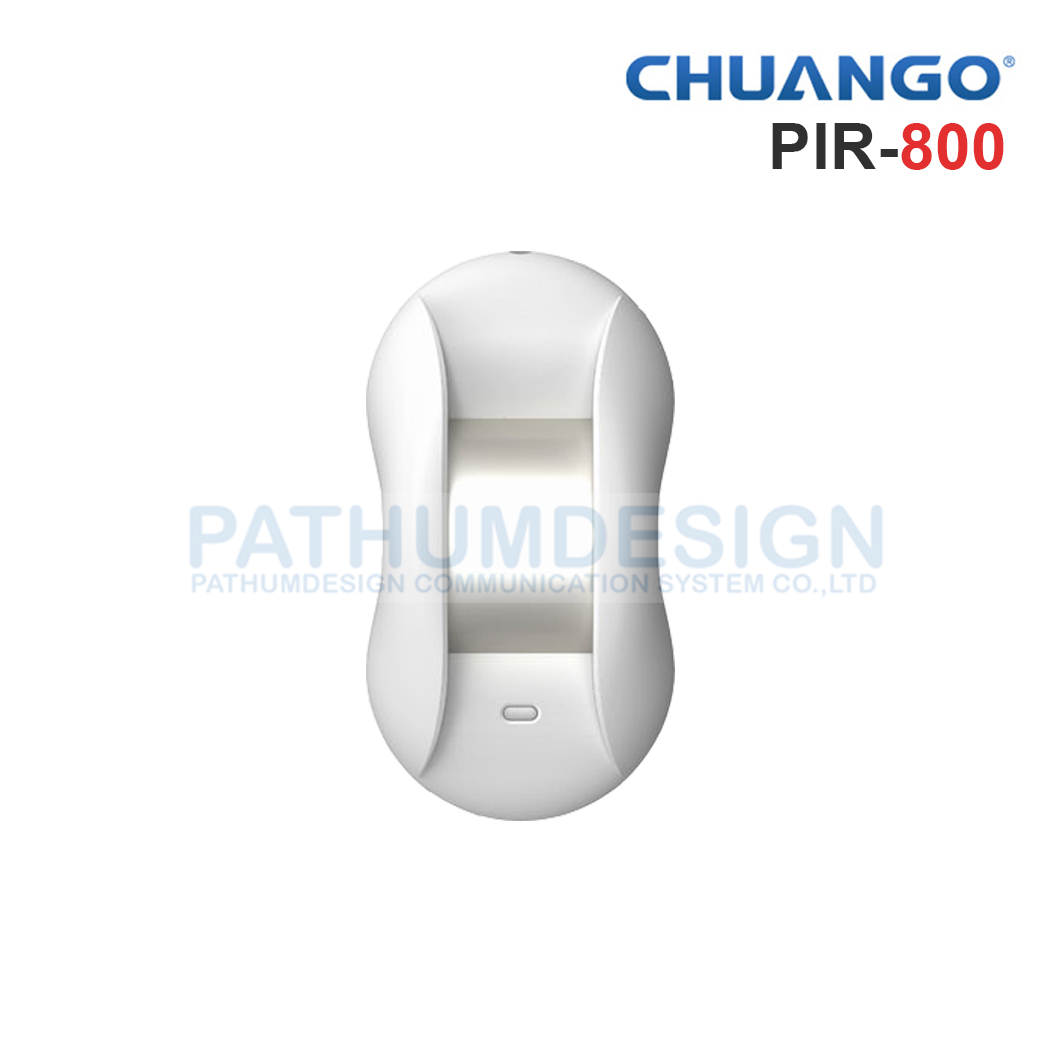

กันขโมยไร้สาย CHUANGO Normal รุ่น PIR-800 Curtain PIR Motion Detector
Curtain PIR Motion Detector
Features
Based on proprietary infrared spectrum detection technology, when human moves within the scope,
the sensor receives the signal and inputs it into microprocessor after magnification.
It works well in settings like balconies, window/door sides and corridors.
Specifications
- Power Supply DC 3V (AAA LR03 1.5V Batter y x 2pcs)
- Static Current ≤50uA
- Alarm Current ≤9.5mA
- Detection Distance 5m
- Curtain Detection Angle 15°
- Transmitting Distance ≤80m (in open area)
- Radio Frequency 315MHz or 433.92.92MHz (±75KHz)
- Housing Material ABS Plastic
- Operation Condition Temperature: -10°C ~+55°C
- Relative Humidity: ≤80% (non-condensing)
- Detector Dimensions 48 x 33 x 88mm (L x W x H)
- Mounting Plate Dimensions 52 x 30 x 11.6mm (L x W x H)
