TOA WS-5265 C04 Wireless Set TOA WS-5265 C04 Wireless Set
หมวดหมู่สินค้า: TOA
รหัส : PS15TOA0756
สินค้ารับประกัน 1 ปี ราคายังไม่รวมภาษีมูลค่าเพิ่ม ค่าแรงติดตั้ง และค่าจัดส่ง
จาก 19,700.00 บาท ลดทันที 5%
ราคา 18,715.00 บาท

18 มีนาคม 2567

ผู้ชม 712 ผู้ชม

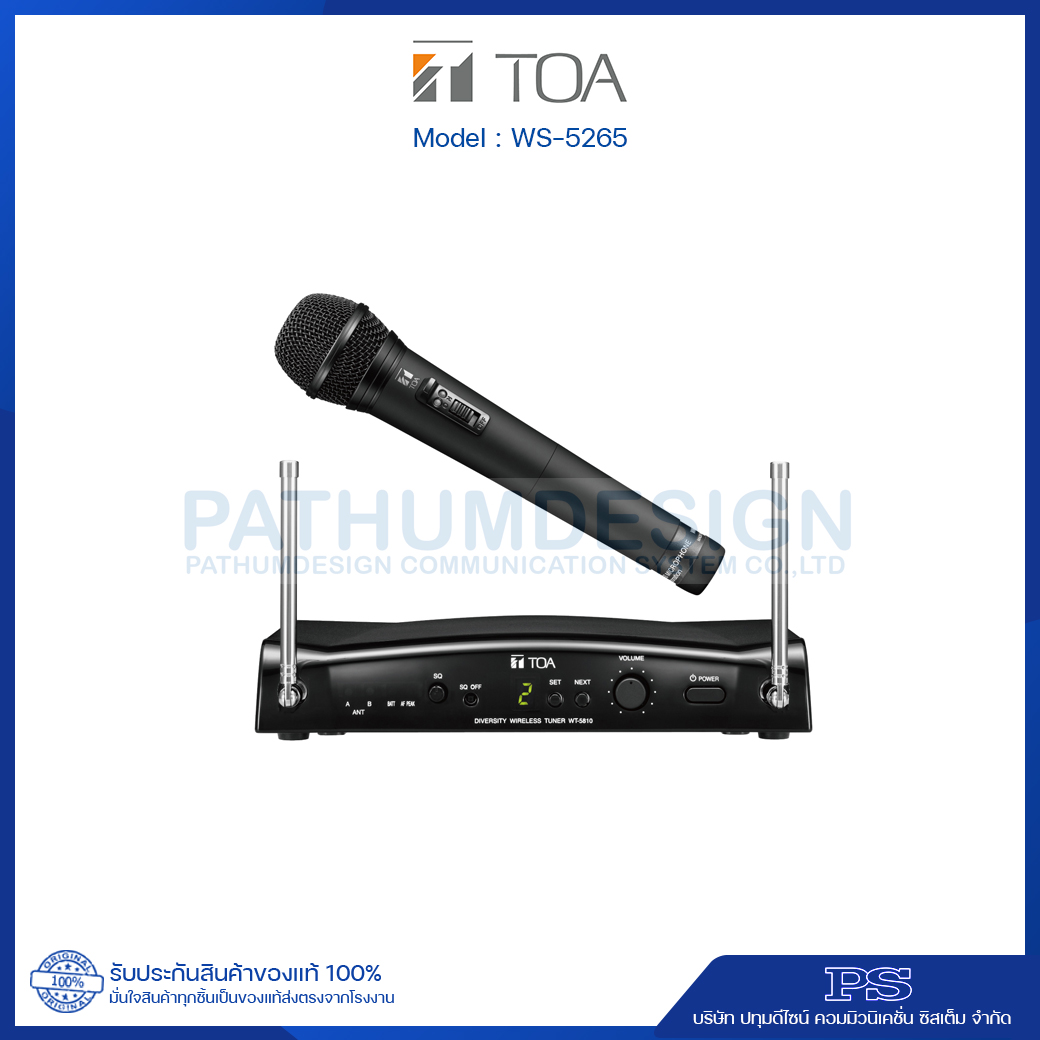

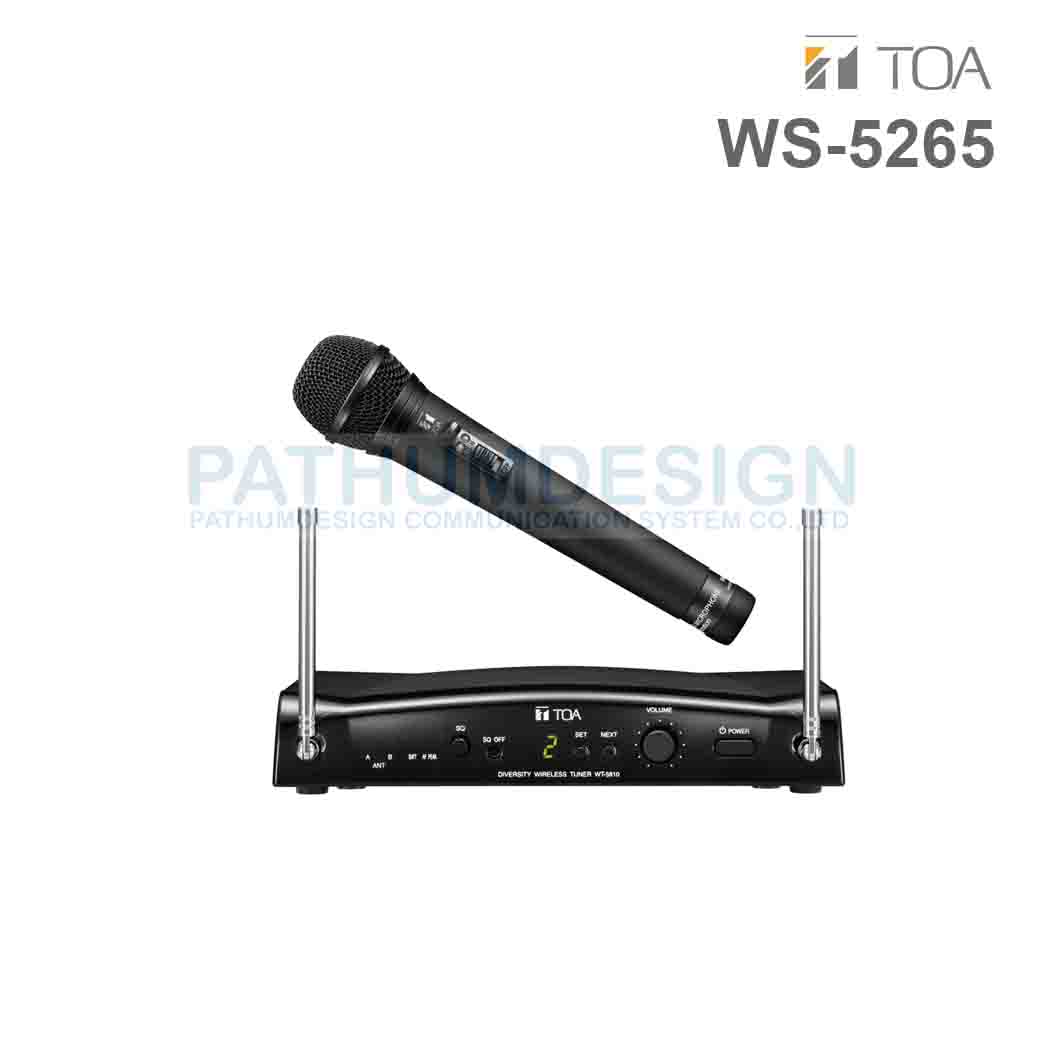

TOA WS-5265 includes a handheld wireless microphone WM-5265 and a diversity wireless tuner WT-5810. The WM-5265 wireless microphone employs an dynamic microphone capsule and is suitable for any applications. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission. The WT-5810 is a PLL-synthesizer controlled double superhetrodyne diversity tuner designed to be used with a UHF wireless system. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise.



Specification

Product Composition Handheld wireless microphone WM-5265 …1
Diversity wireless tuner WT-5810 …1
Frequency Range 576 - 865 MHz (*1), UHF
Tone Frequency 32.768 kHz
Operating Temperature -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
Accessory AC adapter (*2) …1, Screw driver …1
Microphone holder W3/8 (with stand adapter) …1," Strage case …1

Wireless microphone
Microphone Element Dynamic microphone unit: Unidirectional
Modulation Frequency modulation
Channel Selectable 64 channels (the number of channels may differ from country to country)
RF Carrier Power Less than 50 mW (Factory preset 10 mW ERP)
Oscillator PLL synthesized
Maximum Input Level 132 dB SPL
Maximum Deviation ±40 kHz
Audio Frequency Response 100 Hz - 15 kHz
Battery WB-2000 rechargeable battery (option) or AA alkaline dry cell battery
Battery Life Approx. 13 h (when the WB-2000 rechargeable battery is used)
Approx. 10 h (when the alkaline battery is used)
Indicator Power/Battery lamps
Antenna Built-in type
Finish Resin, coating
Dimensions φ50 x 229 mm (φ1.97" × 9.02")
Weight 205 g (0.45 lb) (with battery)

Diversity wireless tuner
Power Source AC mains (supplied AC adapter must be used)
Power Consumption 130 mA (12 V DC)
Channel Selectable 16 channels
Receiving System Double super-heterodyne
Diversity System Space diversity
Mixing Output MIC: -60 dB (*1), 600 Ω, balanced, XLR-3-32 type connector
LINE: -20 dB (*1), 600 Ω, unbalanced, phone jack
Mixing Input -20 dB (*1), 10 kΩ, unbalanced, phone jack
Antenna Whip antenna
Receiving Sensitivity 90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation)
Squelch Sensitivity 16 - 40 dBμV variable
Squelch System Using together of noise SQ, carrier SQ and tone SQ
Indicator ANT A/B, Audio (peak), Battery alarm, Channel number
Channel Check Usable frequencies scanning
Signal to Noise Ratio 104 dB or more (A-weight, unbalanced output)
Harmonic Distortion 1 % or less (typical)
Frequency Response 100 Hz - 15 kHz, ±3 dB
Finish Resin, black
Dimensions 206 (W) × 40.6 (H) × 152.7 (D) mm (8.11 × 1.6" × 6.01") (excluding antenna)
Weight 590 g (1.3 lb)
