TOA TS-780 Central Unit TOA TS-780 Central Unit
หมวดหมู่สินค้า: TOA
รหัส : PS15TOA0644
สินค้ารับประกัน 1 ปี ราคายังไม่รวมภาษีมูลค่าเพิม ค่าแรงติดตั้ง และค่าจัดส่ง
จาก 48,000.00 บาท ลดทันที 5%
ราคา 45,600.00 บาท

28 ตุลาคม 2566

ผู้ชม 709 ผู้ชม

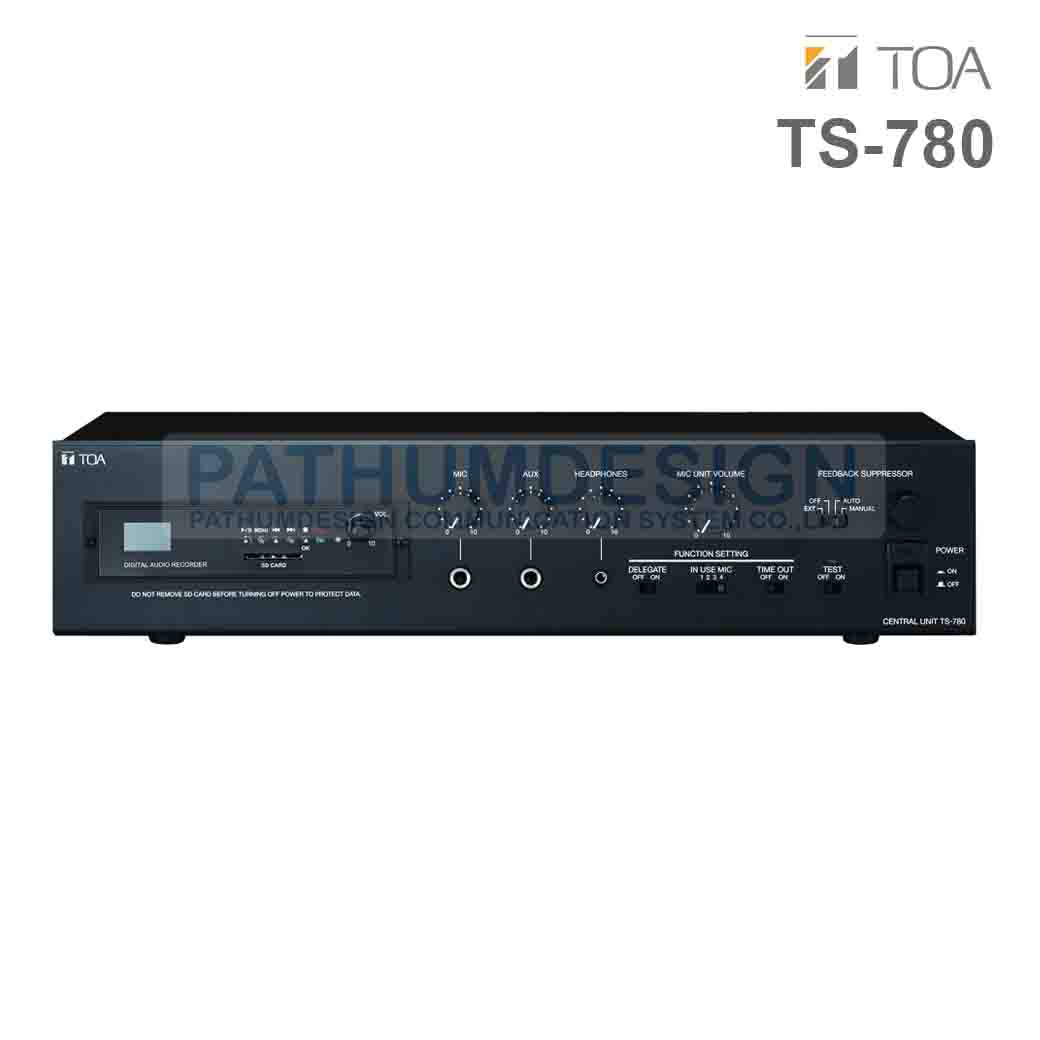

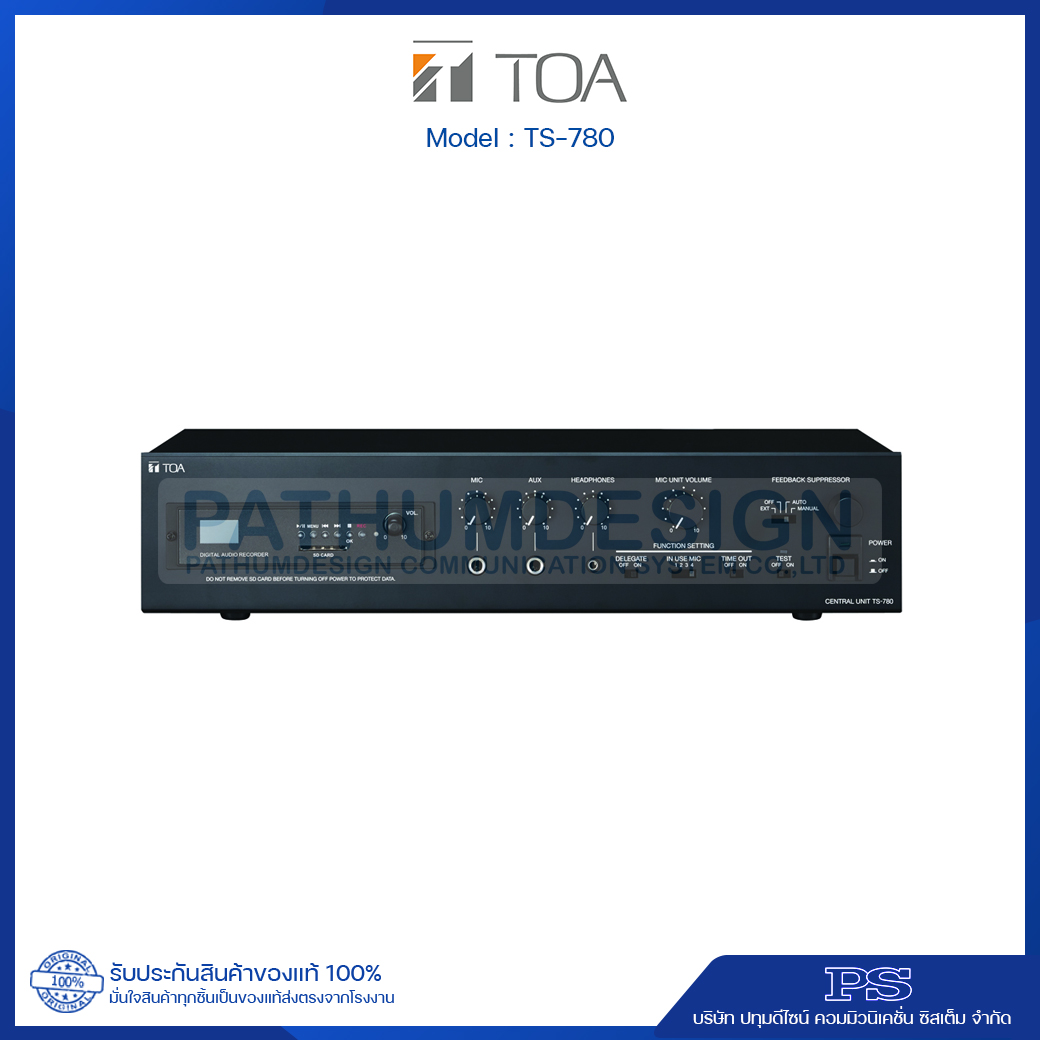

TOA TS-780 is a Central unit for TOA Conference system. Use of its line connection terminals permits connections to the conference units of TS-781 and TS-782, making up a conference system. The TS-780 is equipped with a MP3 recorder that permits conference contents to be recorded on a SD card. Up to 3 Central units can be connected. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (2 unit size).



Specification

Power Source 220 - 240 V AC, 50/60 Hz
Power Consumption 60 W
Rated Output 36 V DC, 650 mA × 2
Input MIC: -60 dB*, 600 Ω, unbalanced, phone jack
AUX: -20 dB*, 10 kΩ, unbalanced, phone jack
Output Recording: -20 dB*, 10 kΩ, unbalanced, phone jack, pin jack × 2
Headphones: Mini jack
Equalizer Insertion Input Terminal Input: 0 dB*, 10 kΩ, pin jack
Output: 0 dB*, 10 kΩ, pin jack
Expansion Input and Output Terminal Input: 0 dB*, 10 kΩ, unbalanced, pin jack × 2
Output: 0 dB*, 10 kΩ, unbalanced, pin jack × 2
Control: 10 kΩ or more, voltage output, pin jack × 2
Control Priority speech chime: Operation of TS-781's priority button activates a single-tone chime
Speaker restriction: Number of simultaneously-usable TS-782s can be set to 0 - 4.
Automatic Mic-off function: OFF, 30 s (selectable)
Feedback Suppressor function (FBS): EXT, OFF, AUTO, MANUAL mode (selectable)
MP3 recording and playback
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity 90 %RH or less (no condensation)
Finish Panel: Aluminum, black, 30 % gloss, paint
Case: Steel plate, black, 30 % gloss, paint
Dimensions 420 (W) × 96.1 (H) × 226.2 (D) mm (16.54" × 3.78" × 8.91")
Weight 3 kg (6.61 lb)
Accessory Power cord (2 m (6.56 ft))…1
Option Extension cord: YR-780-2M, YR-780-10M
Rack mounting bracket: MB-23B
