หมวดหมู่สินค้า: TOA
รหัส : PS15TOA0628
สินค้ารับประกันคุณภาพ 1 ปี ราคายังไม่รวมค่าแรงติดตั้ง และค่าจัดส่ง
ราคาสินค้ายังไม่รวมภาษีมูลค่าเพิ่ม 7%
จาก 48,000.00 บาท
ลดทันที 5%
ราคา 45,600.00 บาท
16 มีนาคม 2567
ผู้ชม 767 ผู้ชม

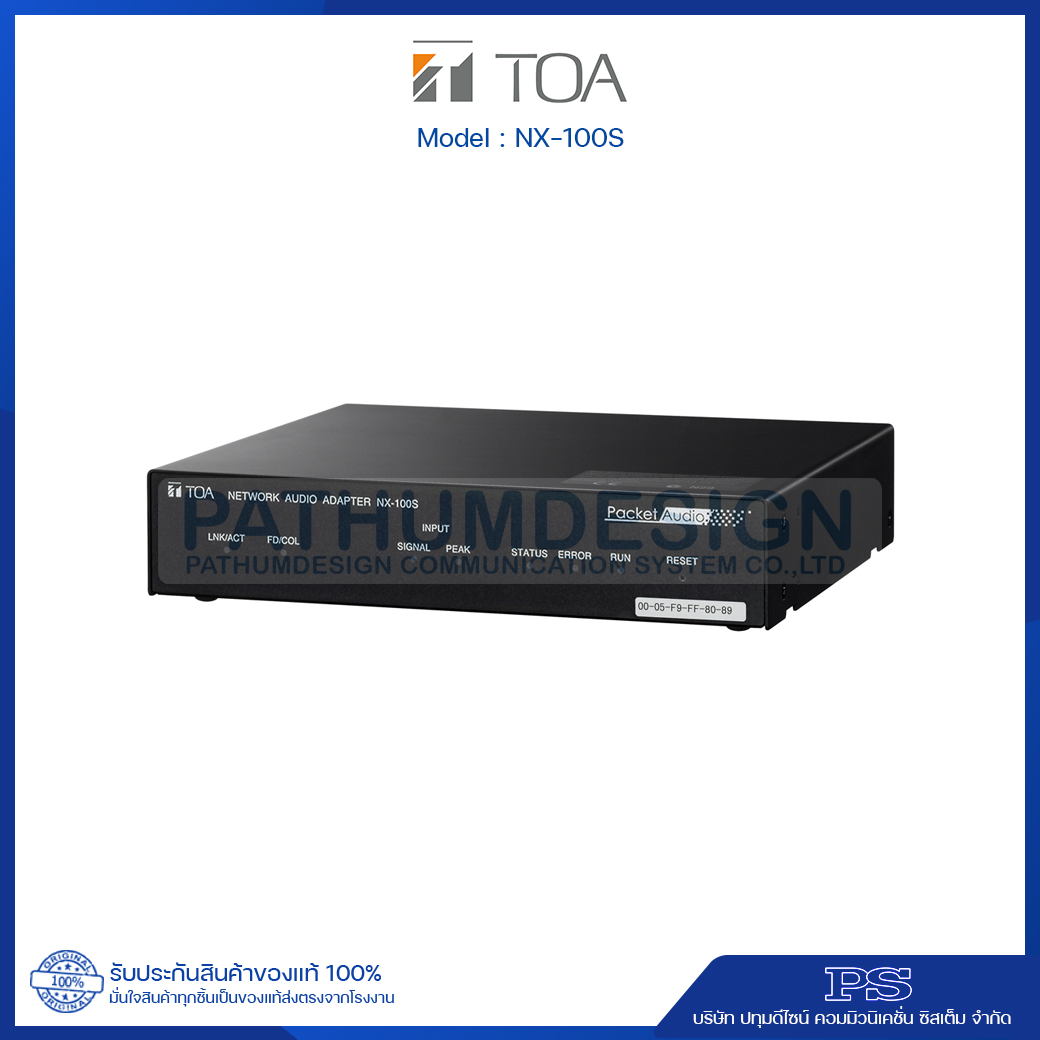

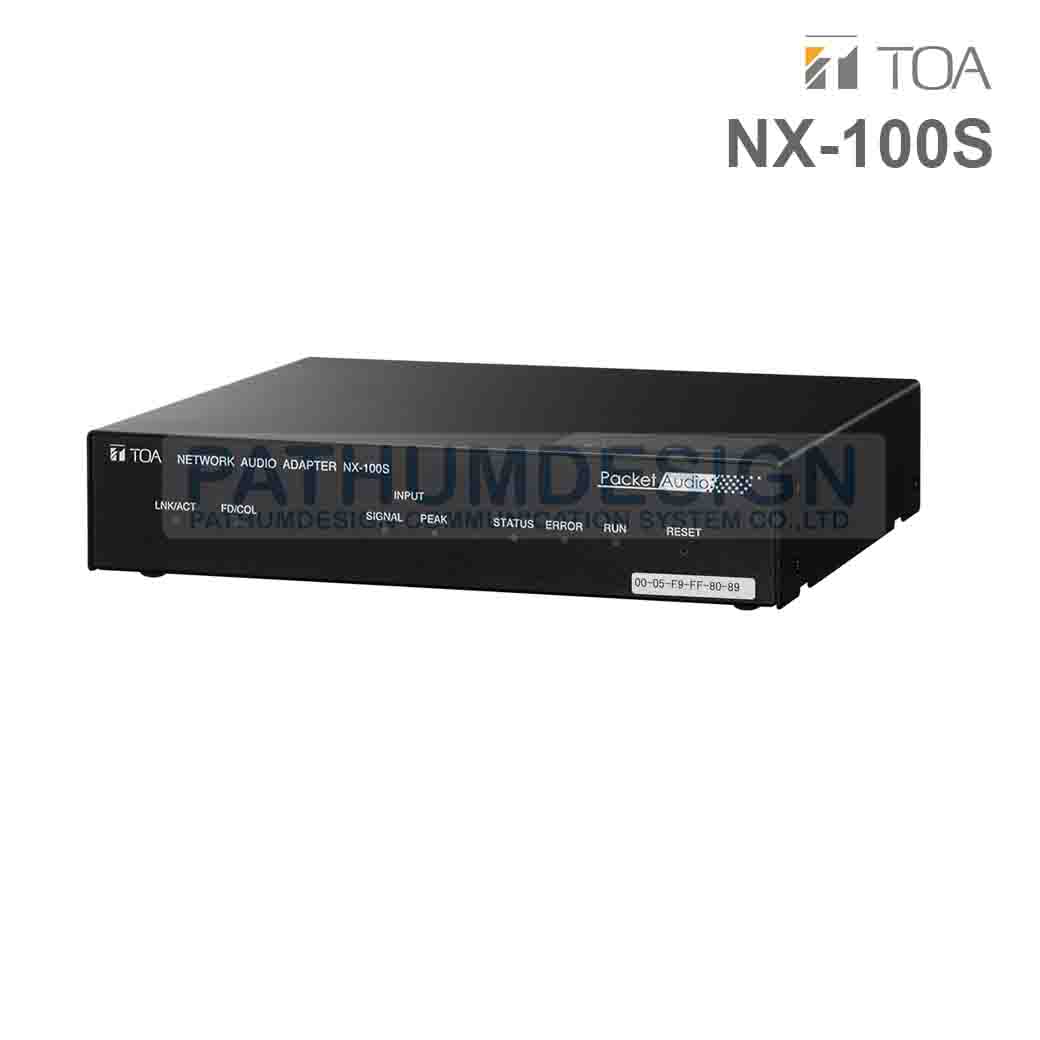

TOA NX-100S Network Audio Adapter can transmit high-quality audio signals and such control data as control input data over IP networks, such as LAN or Internet, in real time. It is especially useful when transmitting audio signals to remote locations, as Internet use keeps running costs lower than the use of dedicated lines. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard rack (1 unit size).
ระบบประกาศเสียงตามสาย
Specification
| Power Source | AC adapter AD-246 (optional) or the equivalent |
|---|---|
| Power Consumption | 7 W (when AD-246 (optional) is used) |
| Audio Input | 1 channel (transformer-isolated), -58 dB* to 0 dB*, balanced (MIC/LINE changeable, volume adjustable with volume control), 2 kΩ, removable terminal block (3 pins), phantom power supply (24 V, can be set with the switch) |
| Audio Output | 1 channel (transformer-isolated), balanced, 600 Ω, removable terminal block (3 pins) |
| Frequency Response | 50 - 14 kHz (when sampling frequency is 32 kHz) |
| Distortion | 0.3% or less (1 kHz, when sampling frequency is 32 kHz) |
| Control Input | 8 channels, no-voltage make contact input, open voltage: 12 V DC, short-circuit current: 10 mA, removable terminal block (9 pins) |
| Control Output | 8 channels, open collector output (polarized), withstand voltage: 30 V DC, control current: 50 mA max., removable terminal block (9 pins) |
| Network I/F | 10BASE-T/100BASE-TX, Auto-Negotiation |
| Network Protocol | TCP, UDP, ARP, ICMP, HTTP, RTP, IGMP |
| Audio Packet Transmission System | Unicast (Up to 4 simultaneous transmissions), Multicast (Up to 64 simultaneous transmissions) |
| Operating Temperature | 0℃ to +40℃ |
| Operating Humidity | Under 90% RH (no dew condensation should be produced) |
| Finish | Steel plate, black, 30% gloss |
| Dimensions | 210 (W) × 44.7 (H) × 188 (D) mm |
| Weight | 1.1 kg |
| Accessory | CD (PC Installation & Operation software programs, Instruction manuals)…1, Audio I/O removable terminal plug (3 pins)…2, Ferrite clamp…1, Control I/O removable terminal plug (9 pins)…2, Bracket mounting screw…8 |
| Option | Rack mounting bracket: MB-15B-BK (for rack mounting one NX-100S unit), MB-15B-J (for rack mounting two NX-100S units) AC adapter: AD-246 |
