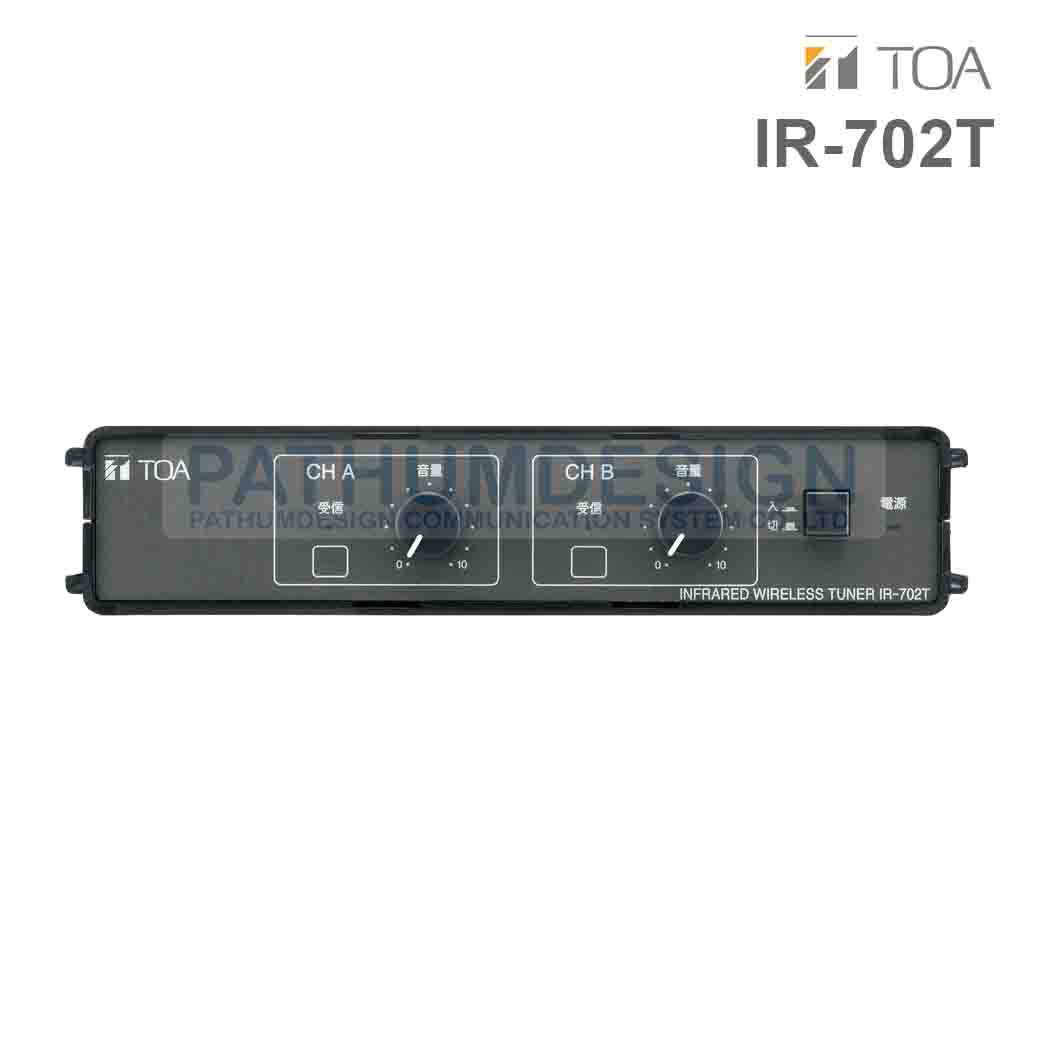

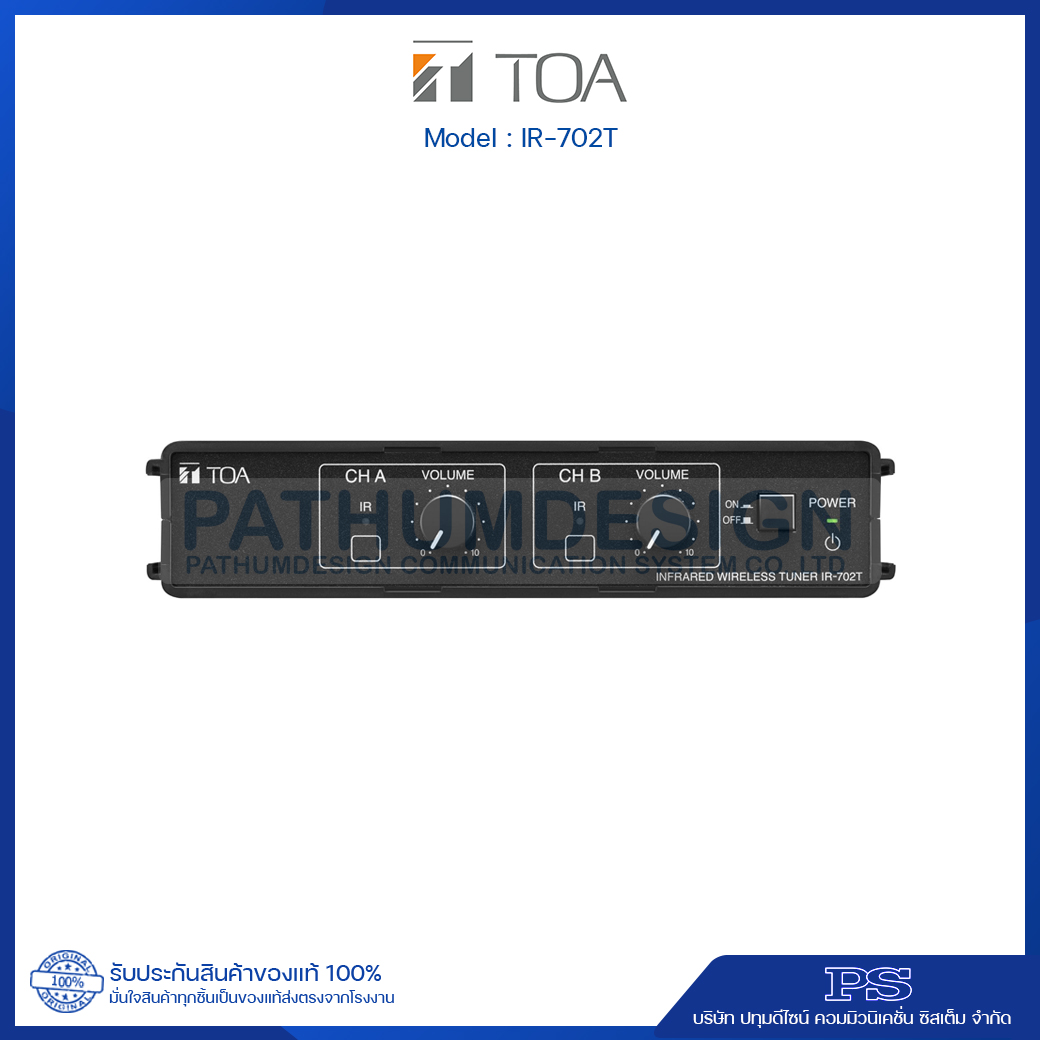

TOA IR-702T Infrared Wireless Receiver (Wall/Electrical Box) TOA IR-702T Infrared Wireless Receiver (Wall/Electrical Box)
หมวดหมู่สินค้า: TOA
รหัส : PS15TOA0637
สินค้ารับประกันคุณภาพ 1 ปี ราคายังไม่รวมค่าแรงติดตั้งและค่าจัดส่ง ราคาสินค้ายังไม่รวมภาษีมูลค่าเพิ่ม 7%
จาก 13,300.00 บาท ลดทันที 5%
ราคา 12,635.00 บาท

28 ตุลาคม 2566

ผู้ชม 702 ผู้ชม

TOA IR-702T is a 2-channel infrared wireless tuner employing a fixed frequency system. This tuner is combined with an ingraed wireless microphone and an ingraed wireless receiver to make up the ingraed wireless microphone system. The ingraed microphone system eliminates problems with interference or eavesdropping, allowing simultaneous use in adjacent conference rooms or school classrooms.



Specification

Power Source AC mains, 50/60 Hz (use of the supplied AC adapter)
Power Consumption 15 W or less
Receiving Frequency Channel A: 3.100 MHz Channel B: 3.350 MHz
Receiver Sensitivity Signal to Noise Ratio: 50 dB or more
(40 dBμV input, 1 kHz modulation, ±4.8 kHz deviation)
Signal to Noise Ratio 61 dB or more (60 dBμV input, ±4.8 kHz deviation, A-weighted)
Tone Squelch Frequency 32.768 kHz
Infrared Receiver Input 75 Ω, BNC jack × 2 (Infrared wireless receiver's power source: 24 V DC, 220 mA max. in total of 2 terminals)
Number of Connectable Conference Receiver 4 (YW-1022/YW-1024)
16 (IR-700D, YW-1024 × 4)
Output Channel A and B: -10 dB(*1) (±4.8 kHz deviation, at volume level max.), 600 Ω, electrical balanced, 3 pole phone jack.
Note: Channel A switchable to mixer output.
Frequency Response 100 Hz - 12 kHz
Operating Temperature -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
Operating Humidity 30 % to 85 %RH (no condensation)
Finish Case: ABS resin, black
Dimensions 210 (W) × 44 (H) × 210.9 (D) mm (8.27" × 1.73" × 8.3")
Weight 630 g (1.39 lb) (unit only)
Accessory AC adapter (DC cord length: 1.8 m (5.91 ft)) (*2) …1, AC Power cord (2 m (6.56 ft))(*2) …1, Rubber foot …4,
Cord with a phone plug (1 m (3.28 ft)) …1, Color label (6 colors) …1
Option Rack mounting bracket: MB-WT3
MB-WT4 (for mounting with the optional IR-700D together)
