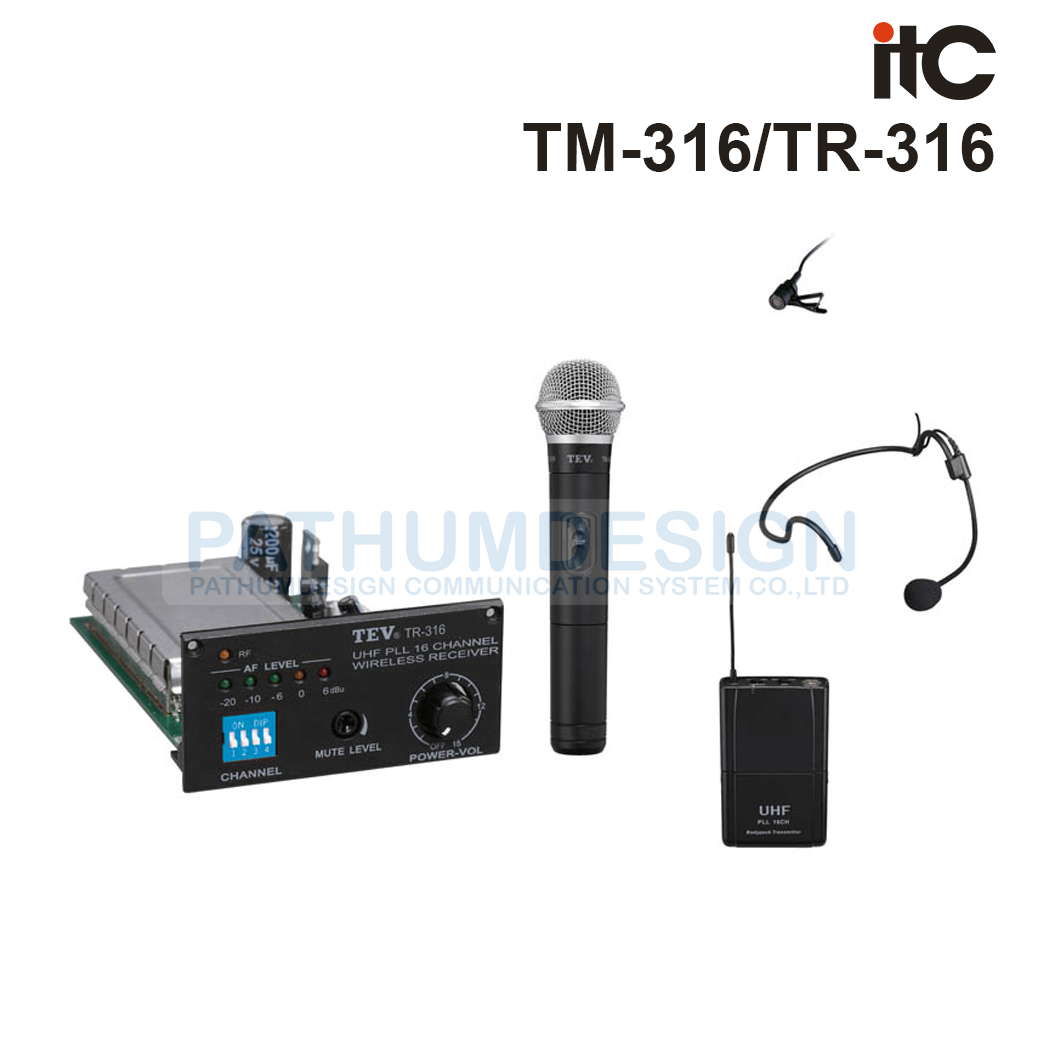

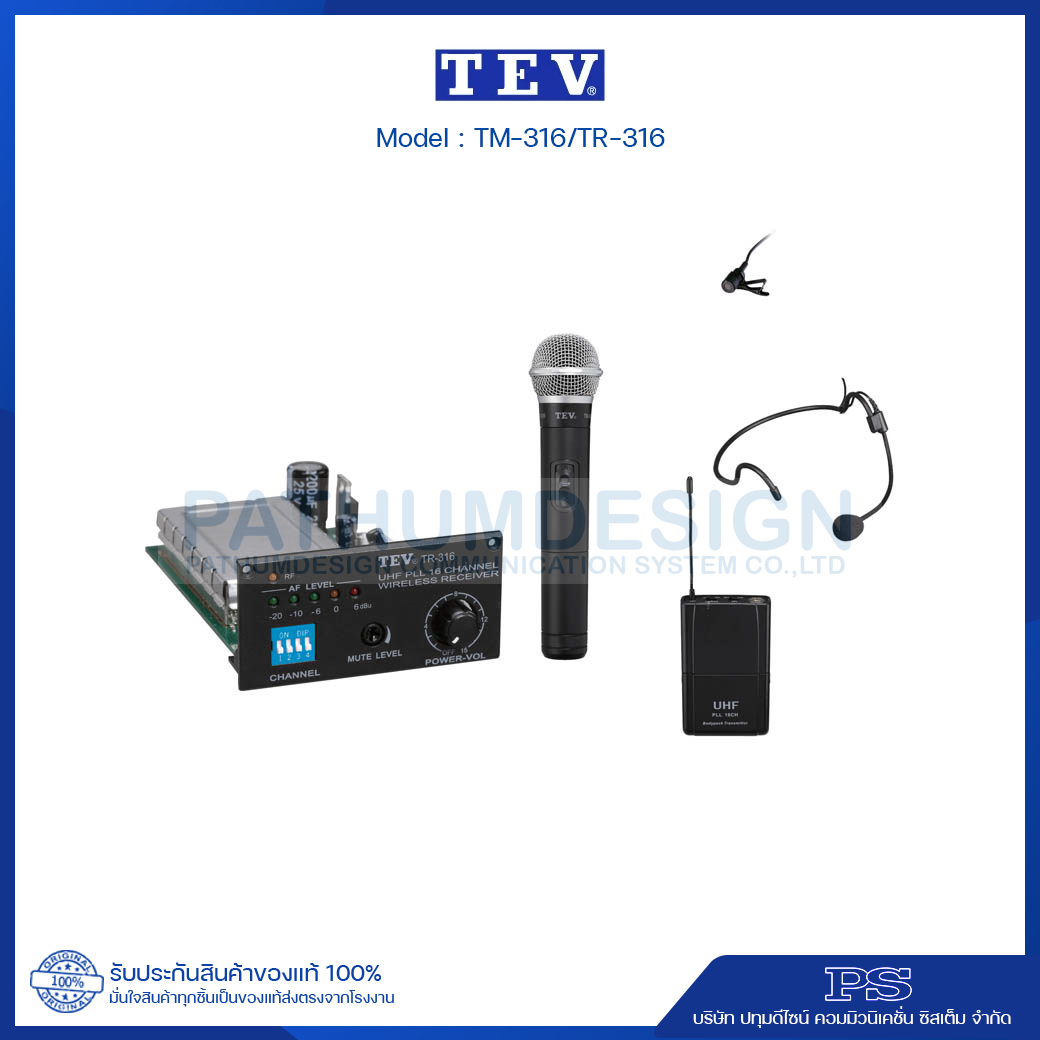

TM-316/TR-316 Hand-Held Microphone+Wireless Receiver Module
Hand-Held Wireless Mic W/Tuner
TR-316 is a wireless receiver module fitted for PA amplifiers, mixers, active powers, signal processors and other karaoke players. Its innovative wireless features and performance add value to these systems.
Function |
Specification |
FrequencyRange |
UHF Band: 794~806MHz |
Oscillator |
PLL Synthesized, Preset 16 selectable channels |
Frequency Bandwidth |
30MHz |
Receiving Mode |
Single Channel, NON-Diversity |
Frequency Stability |
± 0.005% |
Modulation Mode |
FM |
LED indicator |
To Indicate the condition of receiving. |
AF Response |
60Hz~16000Hz |
RF Sensitivity |
-95dBm for 30dB S/N Radio |
DeviationRange |
± 55KHz |
Audio Output |
10dBv max. |
RF Power Output |
10dBm |
Signal to Noise Ratio |
>107dB(A) |
Overall System T.H.D |
< 0.8% |
Power Supply |
DC12~18V |
Receiver Module Dimensions |
125 x 72 x 36mm |
Receiver Module Weight |
90g |
Battery |
1.5V (AA) x 2 |
Microphone Dimensions |
Ø57mm x 242mm |
