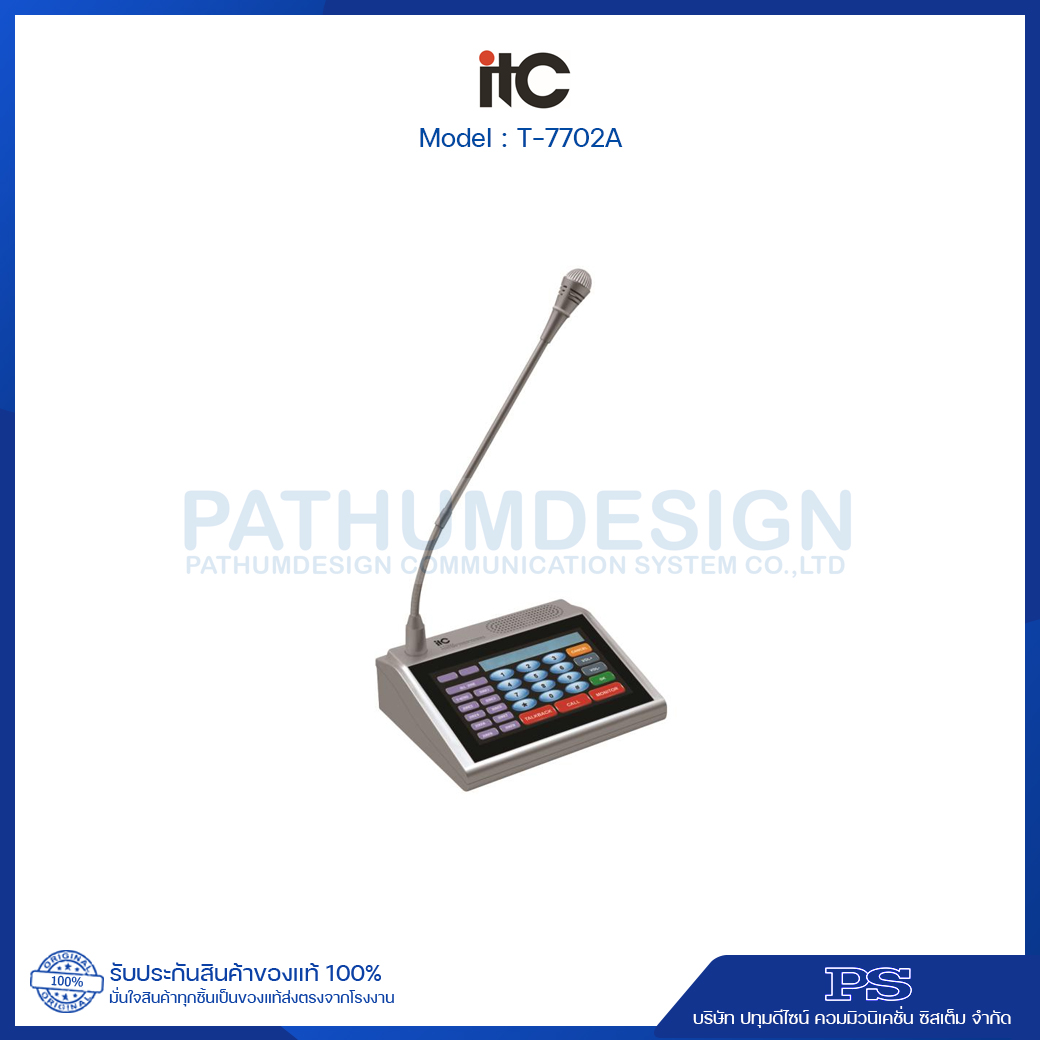

T-7702A IP Network Paging Mic
หมวดหมู่สินค้า: ITC
รหัส : PS15ITC1209
สินค้ารับประกันคุณภาพ 1 ปี ราคายังไม่รวมค่าแรงติดตั้ง และค่าจัดส่งสินค้า ราคาสินค้ายังไม่รวมภาษีมูลค่าเพิ่ม 7%
จาก 27,000.00 บาท ลดทันที 10%
ราคา 24,300.00 บาท

29 สิงหาคม 2567

ผู้ชม 480 ผู้ชม



Features:

*  With desktop design, it’s built-in 7 inch resistance touch screen by 800 × 480 dot matrix K600 + kernel 65K color, to fulfill clear display and sensitive touch. Humanized operation  interface.

*  With numeric and function keys interface. Support paging to single or multiple zones, all zones.  Support direct paging or intercom with terminal, support environmental monitoring to any terminal, with distance up to 5 meters.

*  With embedded computer technology and DSP audio processing technology, high-speed industrial-grade chips.

*  Built in 1 channel network hardware audio decoding module that Support TCP / IP, UDP, IGMP (multicast) protocol to achieve 16-bit stereo CD quality network audio signal transmission.

*  It is compatible with routers, switches, bridges, gateways, Modem, Internet, 2G, 3G, 4G, multicast, unicast and other arbitrary network structures.

*  Support full-duplex two-way intercom function, built-in network echo cancellation module. Support two-way intercom between the terminals, with network delay less than 100ms, and suppress the network echo howling completely.

*  Support hints of asking for help signal ringing and flashing lights  , one key to accept the call, intercom, hands-free calls and receive broadcast, to achieve quick links.

*  Support multiple paging modes, including paging waiting, paging forwarding, no answer reminding.

*  Support for answering automatically, manual answering, and support for custom answer tone.

*  Support user-defined setting of time for call forwarding , no answer, call waiting.

*  Built-in 2W full-frequency hi-fi speaker, to fulfill two-way conversation and network monitoring.

*  One φ3.5 headphone jack and one φ3.5 MIC input socket, matching with 95% headphones and a portable microphone in the market.

*  With one  line output for external amplifier expansion, one line input for more audio sources transmission.

*  One way alarm output for short circuit trigger ,can be cascaded with external alarm device or access control; one way short circuit input,  can be used to trigger preset voice prompts (or alarm), and also can be used to control the access control to linkage with input short-circuit signal.

*  The digital products is more convenient for extension, no limit by the geographical position, no need increase management equipment in control center, sharing network to save cabling, simple installation.

*  It support remotely update to the hardware terminal, no need go to upgrade locally , to reduce maintenance work and make simpler operation.

*  With 10 buttons, support customized one-button paging and one-button broadcasting.



Specifications:





Model

T-7702A

Network Interface

Standard RJ45 input

Support Protocol

TCP/IP,UDP,IGMP (Multicast)

Audio Format

MP3

Sampling Rate

8K~48KHz

Transmission rate

100Mbps

Audio Mode

16 bit  CD quality

Display Size

7-inch

Screen Resolution

800 x 480 Pixel

Screen Type

65K Color DGUS Screen

Keyboard Type

virtual QWERTY Keyboard

Keyboard Input Type

Touch screen

Inscribed speaker impedance

and power rating

4Ω,2W

THD

≤1%

Frequency response

80Hz~16KHz  +1dB/-3dB

SNR

>65dB

PHONE OUT output impedance

and power rating

16Ω,2mW

LINE OUT Output Level

1000mV Industry standard wire terminals

LINE OUT Output Impedance

470Ω

LINE IN Input Sensitivity

350mV  Industry standard wire terminals

MIC Input Sensitivity(Unbalance)

10mV

Short-circuit input

Dry contact input

Short-circuit output

Max 1A/30VDC Dry contact input

Working Temperature

5℃~40℃

Working Moisture

20%~80%Relative humidity,

without condensation

Working Consumption

≤6W

Power Input

~190-240V 50-60Hz (power adapter);

DC24V/2A

Size

200×160×60 mm

Weight

1.2Kg
