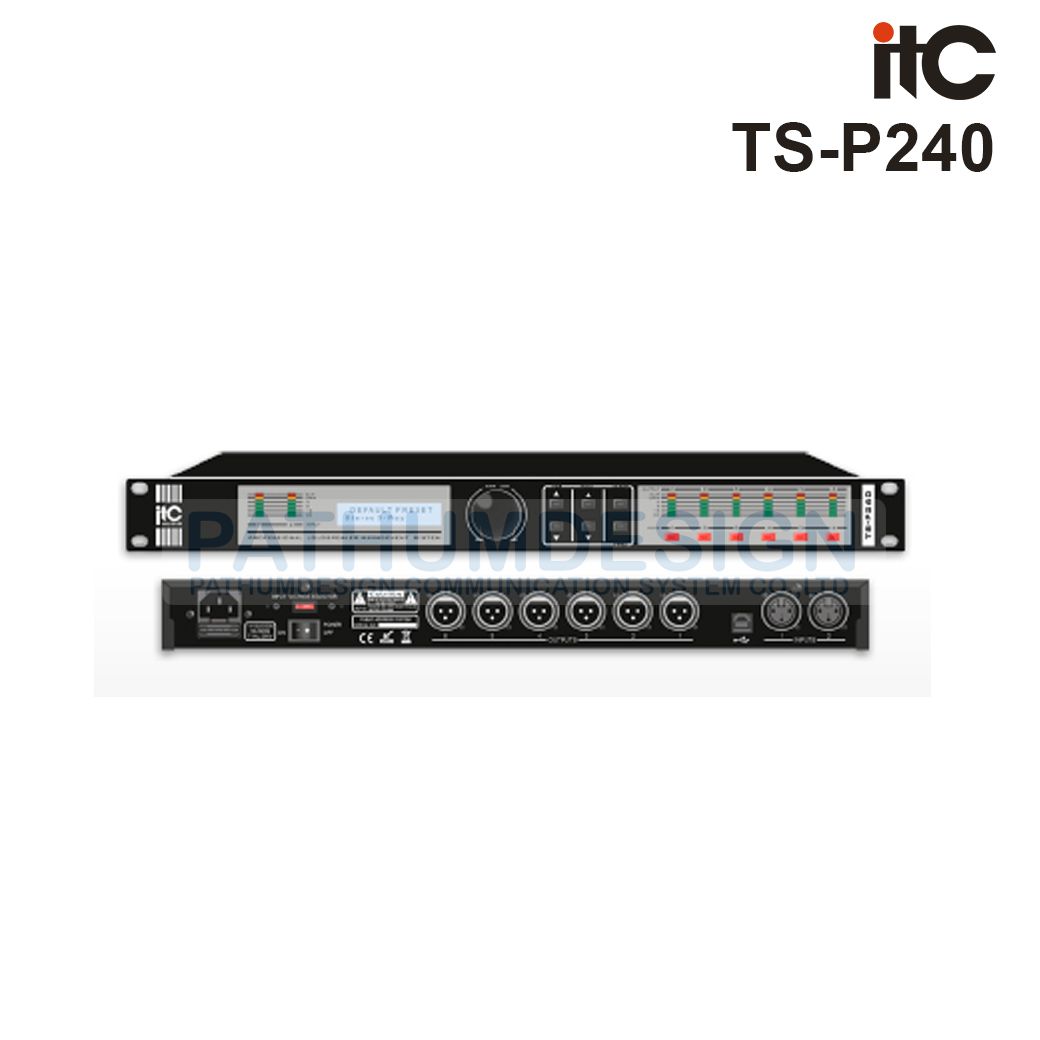

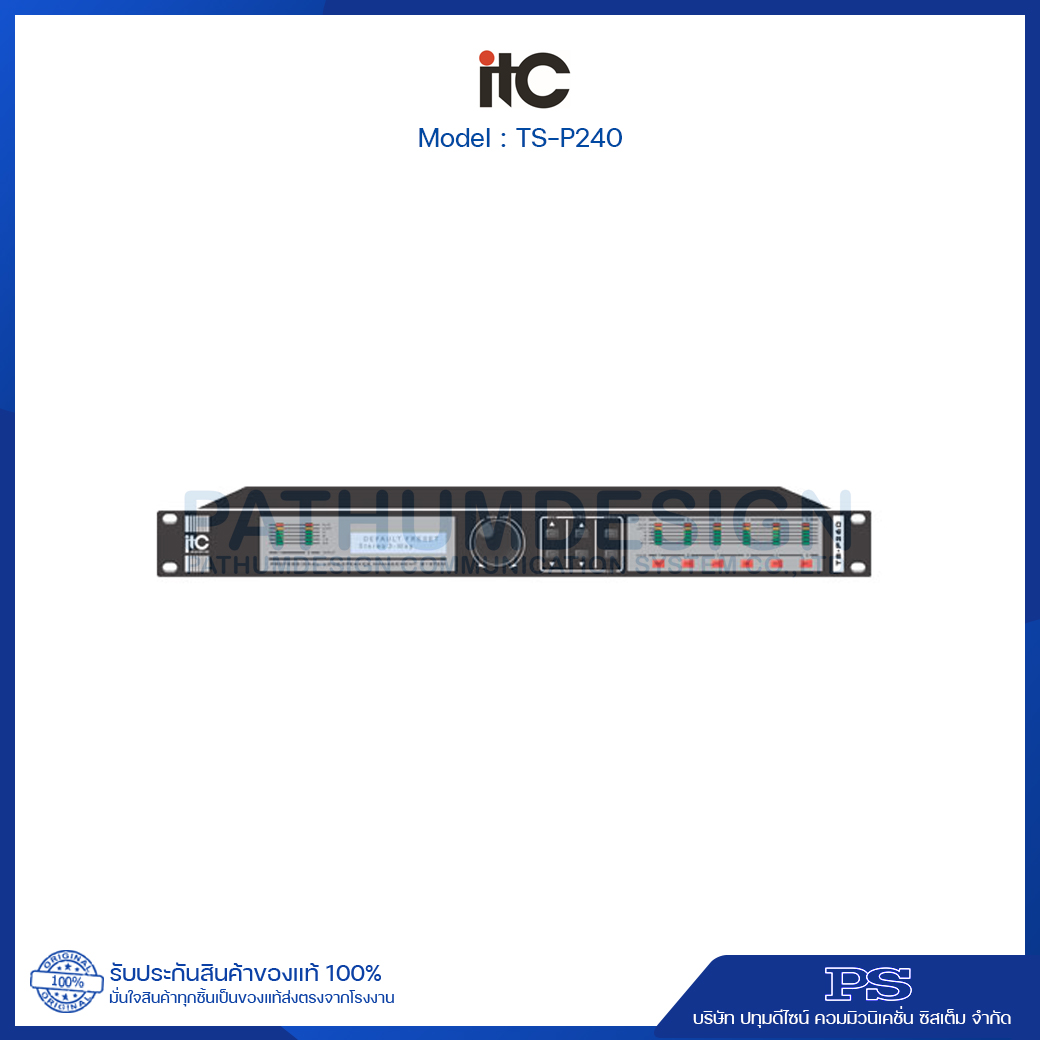

ITC TS-P240 ดิจิตอล โปรเซสเซอร์ DSP ITC TS-P240 ดิจิตอล โปรเซสเซอร์ DSP

ITC TS-P240 ดิจิตอล โปรเซสเซอร์ DSP
หมวดหมู่สินค้า: ITC
รหัส : PS15ITC1199
สินค้ารับประกันคุณภาพ 1 ปี ราคายังไม่รวมค่าแรงติดตั้ง และค่าจัดส่งสินค้า ราคาสินค้ายังไม่รวมภาษีมูลค่าเพิ่ม 7%
จาก 35,000.00 บาท ลดทันที 10%
ราคา 31,500.00 บาท
- +

แท็ก: เครื่องเสียงITCTS-P240

10 พฤศจิกายน 2566

ผู้ชม 438 ผู้ชม

ITC TS-P240 ดิจิตอล โปรเซสเซอร์ DSP



Feature

  • 64 bytes digital signal processor.
  • 110dB dynamic input.
  • 114dB dynamic output.
  • Balanced input and unbalanced output.
  • Input gain +12dB.
  • Frequency response of 10-30kHz.
  • Each channel output with 10 bands graphic equalizer.
  • The graphic equalizer with bell, high shelf, low shelf, notch and all pass features.
  • Each output with adjustable 0-5ms delay.
  • High and low pass filter with butterworth, Bessel and linkwitz-Riley features, Unaspected filter up to 24dB per OCT.
  • Built-in adjustable current limiter.
  • 180°sw itchable ph ase.
  • Input level of +6dB.
  • Output level of +6dB.
  • Average delay is less than 1ms.
  • PC remote controlled, monitored and software parameter set up.
  • Capacity of 50 pre-set programs.



Specification

Input Channel & Socket 2 channel XLR female
Output Channel & Socket 4 channel XLR female
Input impedance 20KΩ balanced
Output impedance 100KΩ balanced
PC interface Front Panel: 1 USB, Real Panel: 2 Rs485 (RJ-45)
CMRR >70dB (1KHz)
Input Range ≤+25dBu
Frequency Response 20Hz-20KHz(-0.5dB)
SNR >110dB
THD <0.01% OUTPUT=0dBu/1KHz
Channel separation >80dB (1KHz)
Input Channel Function
Input Mute Separate mute control on each channel
Input delay Each input channel has a separate delay control, adjustment range is 0-1000ms, less than 10ms, step is 21us; 10ms-20ms, step is 84us;
  greater than 20ms, step is 0.5ms
Input Phase inverting (+)/reverse (-)
Input Equalization Each input channel has six parametric equalizer, adjustment parameters is: center frequency: 20Hz-20KHz,
239 frequency points Bandwidth in total: 0.05oct-3oct, step to 0.05oct gain: -20dB-+20 dB, step is 0.1dB
Output Channel Function
Output Mute Separate mute control on each channel
Output Selection The output can individually select different input channels
Output Volume adjustment range: -80dB-+12dB, step is 0.1dB
Output delay Each output channel has a separate delay control, adjustment range 0-1000ms, less than 10ms, step is 21us; 10ms-20ms, step is 84us;
greater than 20ms, step is 0.5ms
Output phase inverting (+)/reverse (-)
Frequency Divider Setting Each output channel can set low pass filter (LPF) and high-pass filter (HPF) separately; adjustable parameters: Filter Type: Linkwitz-Riley/Bessel /
frequency turning point: 20Hz-20KHz, 239 a frequency attenuation slope: 12dB/oct, 18dB/oct, 24dB/oct, 30 dB / oct, 36 dB / oct, 42 dB / oct, 48dB/oct
Limiter Setting Each output channel can set limiter separately; adjustable parameters: threshold :-40dBu-+20 dBu, step to 0.5dBu start time: 0.3ms-200ms,
less than 1ms, step 0.1 ms; greater than 1ms, in steps of 1ms release time: 50ms-5000ms
Output Equalization Each output channel has six parametric equalizers; equalization mode has Parameter/Lo-Shelf/Hi-Shelf
Adjustable parameter under Parameter Status: center frequency:
  20Hz-20KHz, a total of 239 frequency points Bandwidth: 0.05oct-3oct, step is 0.05oct gain: -20dB-+20 dB, step is 0.1dB
Adjustable parameter under Lo-Shelf and Hi-Shelf status: center frequency: 20Hz-20KHz, 239 frequency points slope in total: 6dB/12dB
gain: -20dB-+20 dB, steps is 0.1dB
Processor 96KHz sampling frequency, 32-bit DSP processor, 24-bit A / D and D / A conversion
Display 2 x 24 LCD displays setting menu, 6-segment LED display input / output precision digital level meter, mute and editing status
Power consumption ≤25W
Power Supply AC110V/220V 50/60Hz
Dimension ( W x D x H ) 482 x 190 x 44mm
Net Weight 3.6Kg
Transport dimensions ( W x D x H ) 562 x 362 x 98mm
