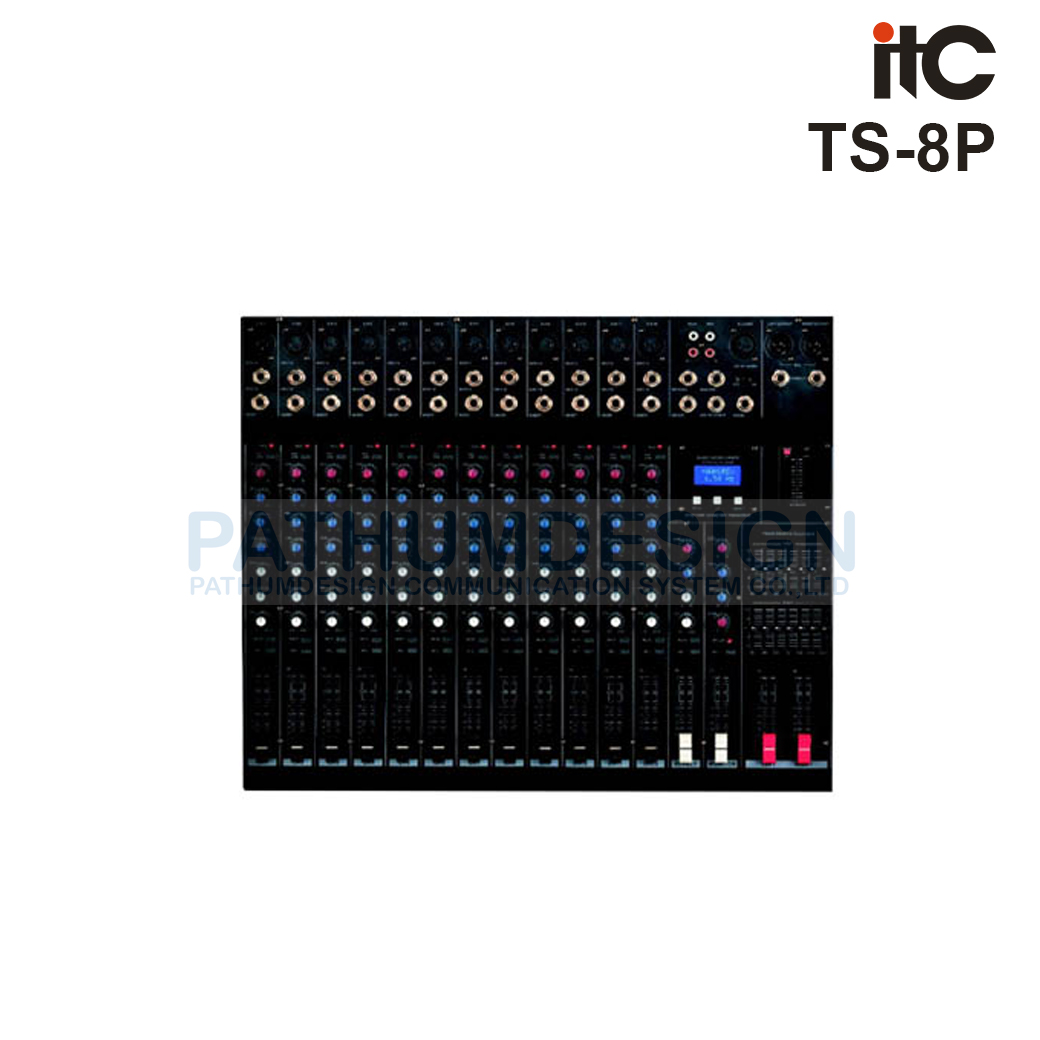

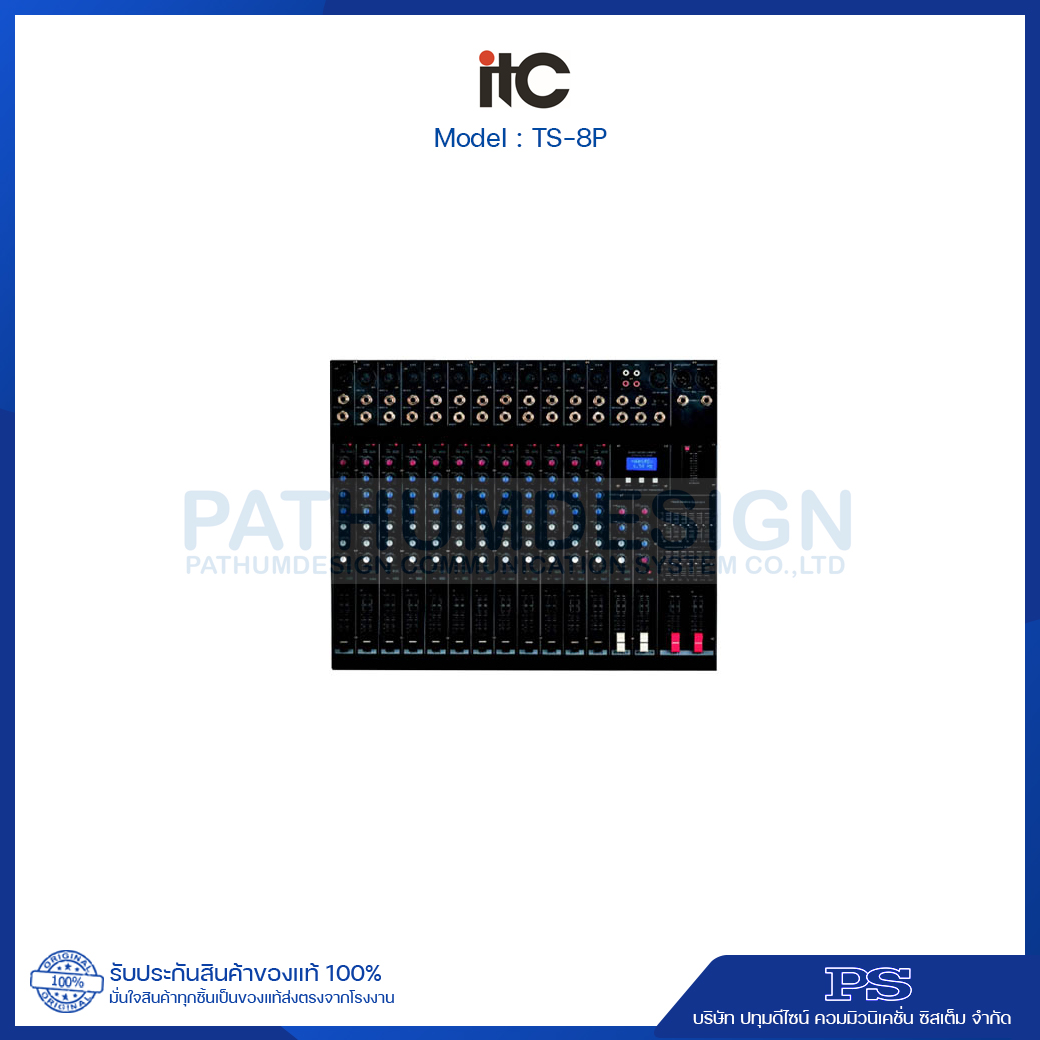

TS-8P Channel Mixer With DSP TS-8P Channel Mixer With DSP
หมวดหมู่สินค้า: ITC
รหัส : PS15ITC1190
สินค้ารับประกันคุณภาพ 1 ปี ราคายังไม่รวมค่าแรงติดตั้ง และค่าจัดส่งสินค้า ราคาสินค้ายังไม่รวมภาษีมูลค่าเพิ่ม 7%
จาก 30,000.00 บาท ลดทันที 10%
ราคา 27,000.00 บาท

10 พฤศจิกายน 2566

ผู้ชม 539 ผู้ชม

ITC TS-8P Channel Mixer With DSP



Descriptions

- 2 optional DSP effective modules,one is 21 effective model, can adjust the time. The other has adjustable and fixed parameter.

- Intelligent display, accurated, convenient.

- +48V phantom power.

- SMT.

- Built-in 24 bit DSP effector

- 4 balanced input, double 7 balanced output.

- 2 main output, 1 monitor output, 1 effect sending.

- LED DJ light.

- External power,low noise.





Specifications

Model TS-6P TS-8P TS-12P TS-16P
Mono Input Channel 6 channels 8 channels 12 channels 16 channels
Stereo Input Channel 2 channels(selectable.if selected, mono channels will be lessened 4 channels)
Mono Insert Channel 6 channels 8 channels 12 channels 16 channels
Phantom Power for MIC +48V
Output Channel 2 main output channels; 2REC output channels; 1 effects output channels;

1 monitor output channels; 1 stereophone output channel
Frequency Response 20Hz~20KHz±1dB
Mono MIC to Main Output Max Gain 50dB±3dB
Mono Line to Main Output Max Gain 30dB±3dB
Stereo Line to Main Output Max Gain N.A.
Overhearing <-80dB±1.5dB @1kHz

S / NR 78dB @ 0dB
Max Output Level to Main Output Channel 22dB±1.5dB
Max unbalance Group Output/Main Output Channel 16dB±1.5dB, Without Group
REC Max Unbalance Output 16dB±1.5dB
Monitor Max Unbalance Output 16dB±1.5dB
Effects Max Unbalance Output 16dB±1.5dB
Phone Output 12dB±1.5dB @ 1KHz 32Ω
Gain Inequality ≤2dB
THD ≤0.02% @ 0dB 1KHz
Mono Channel EQ
Hight Mid / Low 12KHz, 1.8KHz, 80Hz
Frequency Swing&Gain Frequency swing<8%, Gain:±15dB
Stereo EQ
Hight Mid / Low 12KHz, 1.8KHz, 80Hz
Frequency Swing & Gain Frequency swing<8%, Gain:±15dB
7 Main Output to GEQ
Center Frequency of EQ 63Hz, 160Hz, 400Hz, 1KHz, 2.5KHz, 6.3KHz, 16KHz
Frequency Swing & Gain ±12dB inaccuracy 2dB, Frequency swing≤8%
Effector 2 DSP of 21 different Effects: HALL, ROOM, PLATE, AMBIENT, GATED, REVERS,

VOICE, DEL & REV, ECHO 40, ECHO 50, DELAY, CHORUS, CHO&DEL,
CHO & REV, FLANGER, FLA & DEL,FLA & REV, TREMOLO, TRE&REV, WAH WAH,

WAH & REV
Clipping Indicator Light Indicator 3dB earlier than cutting wave level
Group & 12 Main Outputs Levels Indicator LED +9dB, +6dB, +3dB, 0dB, -2dB, -4dB, -6dB, -9dB, -12dB, -16dB, -18dB, -21dB
Power Supply & Power Consumption AC 120V or 220V; 50-60Hz; <70W
Power of Amplifier N.A.
The Dimension of External Power Supply 129x90x77mm
Product Dimension(WxDxH) 327.5x389.7x80.3mm 387.5x389.7x80.3mm 507.5x389.7x80.3mm 627.5x389.7x80.3mm
Net Weight 5kg 6kg 7.3kg 5kg
Shipping Dimension(WxDxH) 495x485x180mm

/0.0432m³
555x485x180mm
/0.0485m³
660x485x180mm

/0.0576m³
785x485x180mm

/0.0685m³
Gross Weight 10.1kg 10.8kg 11.7kg 13.7kg
