Features
* The equipment is designed with embedded computer technology and DSP audio processing technology.
* Built-in 1-channel network hardware audio decoding module, supports TCP/IP, UDP protocol, realizes the network transmission of 16-bit CD audio signal.
* Supporting POE (IEEE 802.3af) power supply mode, only one network cable is needed to connect to POE switch, so the operation is simple and convenient.
* Equipped with DC 24V standby power interface, it is suitable for power supply when power demand is greater than 10W or for non-POE network.
* Digital power amplifier with intelligent gain adjustment, adaptive power supply and automatic power adjustment is always in the state of performance optimization and efficiency maximization.
* Full-band, high-sensitivity amplifier unit with abundant power and high fidelity.
* Compatible with any network architecture such as router, switch, bridge gateway, Modem, Internet, 2G, 3G, 4G, etc.
* Supporting the broadcasting system to upgrade the terminal firmware remotely, without upgrading to the terminal locally, so as to reduce the work intensity of maintenance.
Specifications
Model |

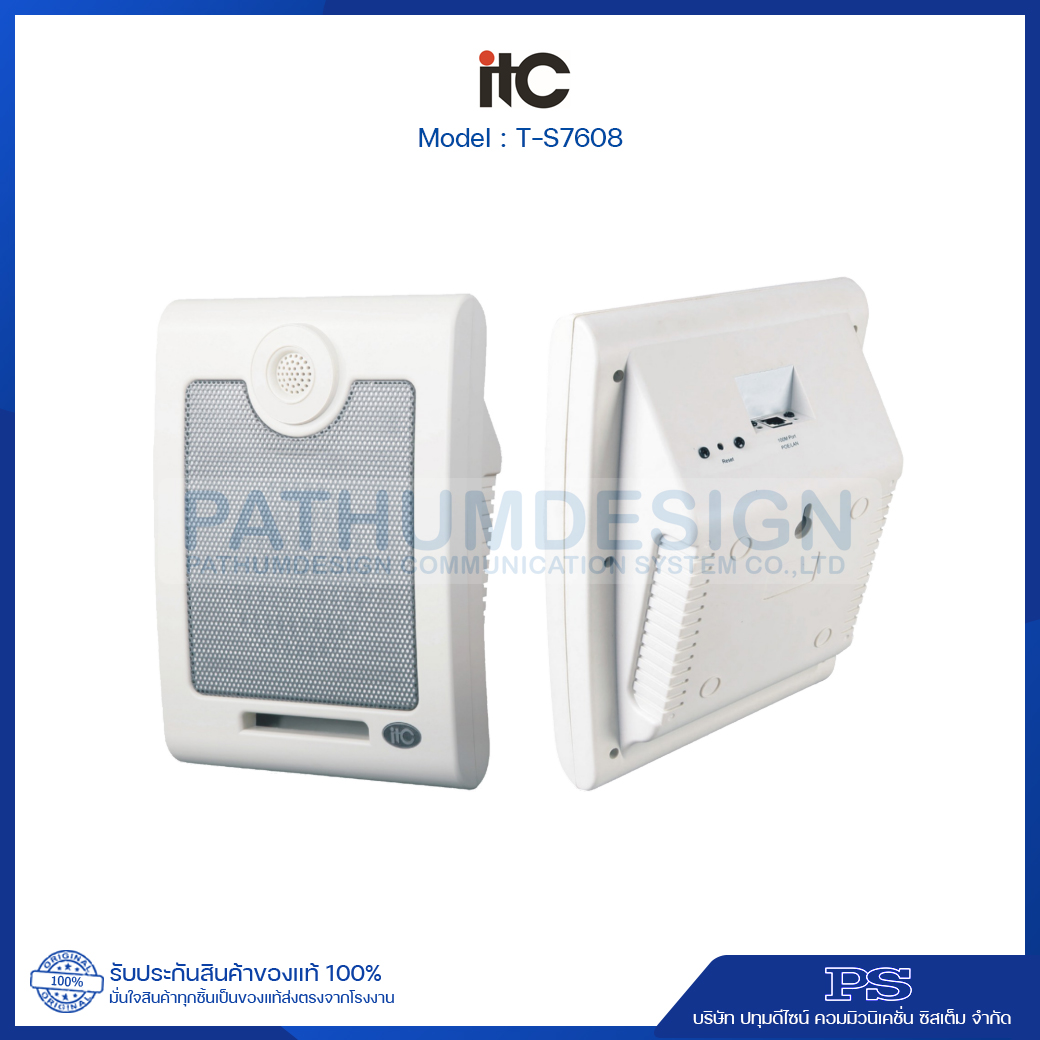

T-S7608 |
Power Supply |
POE power supply |
Power waste |
12W |
Network interface |
RJ45 |
Transmission speed |
10/100Mbps |
Support agreement |
TCP/IP, UDP |
Audio format |
MP3 |
Audio mode |
16-bit CD sound quality |
Sampling rate |
8KHz~48KHz |
Bit rate |
8KKbps~512Kbps |
Rated power |
8W |
peak power |
10W |
Horn sensitivity |
92dB |
Frequency response |
130Hz~16KHz (+1/-3dB) |
Harmonic distortion |
≤1% |
Signal-to-noise ratio |
≥70dB |
Size |
200mm×105×276mm |
Weight |
1.0Kg |
