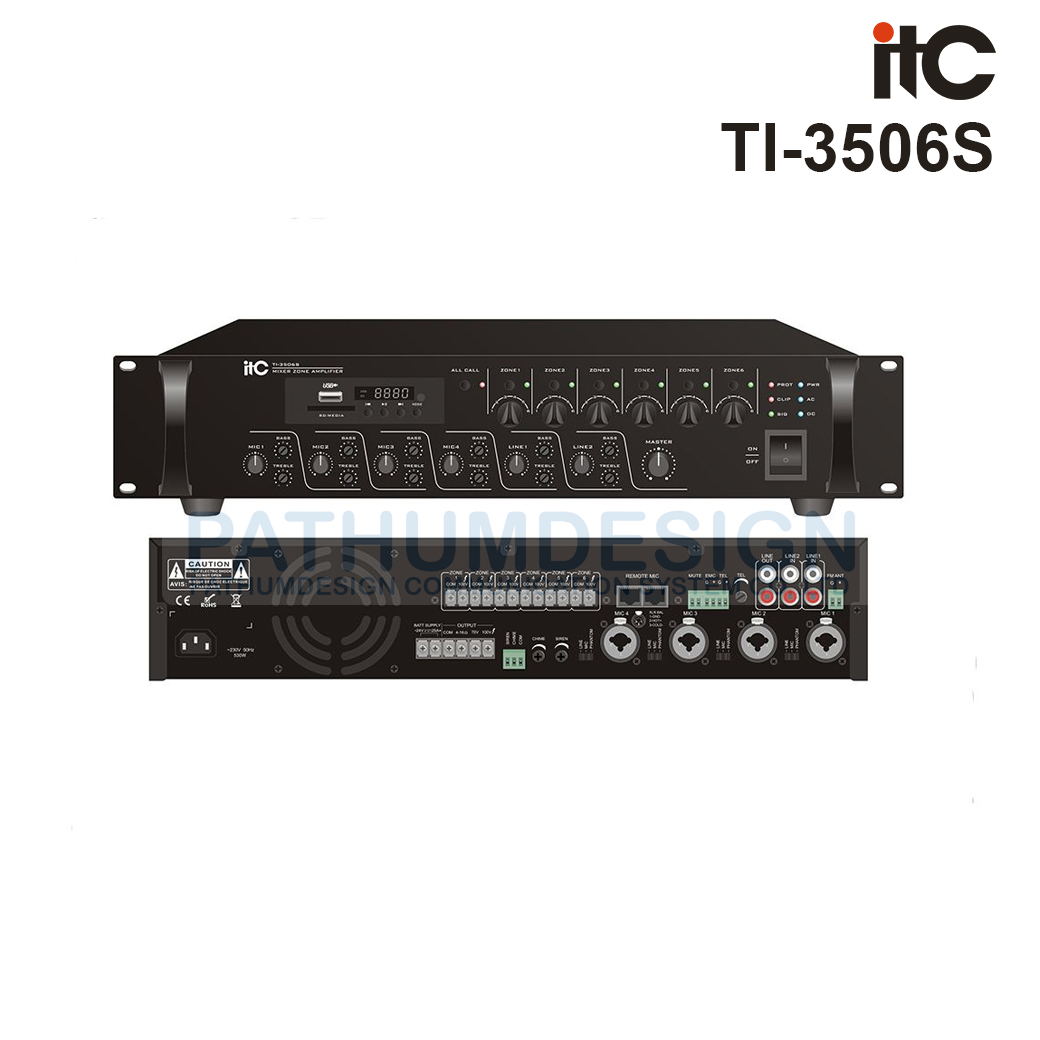

ITC TI-3506S 350W, 6 Zone mixer amplifier with MP3/Tuner/Bluetooth&USB, 4 mic inputs, 2 line inputs.
10 พฤศจิกายน 2566
ผู้ชม 730 ผู้ชม
ITC TI-3506S 350W, 6 Zone mixer amplifier
with MP3/Tuner/Bluetooth&USB, 4 mic inputs, 2 line inputs.
คุณสมบัติ
- 4 channel Mic. inputs, 2 channel line inputs, separated treble and bass control.
- 6-channel zone output, zone volume is independently controlled.
- Built-in bell, the bell tone is optional, 4 tones and 2 tones (built-in), the alarm generator.
- MP3 decoder module supports USB / SD / Bluetooth / FM radio playback. Configuring MP3 remote control, support memory function without power input, MIC recording function.
- When start the built-in generator, the background will turn off and 6-channel zone output will automatically turn on, switch to maximum output volume function.
- Built-in 24V DC power input
- MIC1- 4 built-in 48V phantom power and independent control switch.
- T-216 remote microphone can remote control zone output, the maximum cascade 6pcs Mic.
- The audio input with separate control, tone control and master volume control
- A variety of LED display (signal, clip, protection LED indicator)
- With fan forced cooling structure, to ensure the device to keep long time working
- There are five priority levels:
- EMC with top priority: When there is EMC alarm signal input, it overrides all audio, 6 zone outputs open automatically.
The 2nd priority level: TEL / REM MIC is priority to MIC1-4, LINE1-2,chime.The 3rd priority level: built-in alarm generator is priority toMIC1-4, LINE1-2, 6 zone outputs open automatically. - The 4th priority level :built-in chime is priority to MIC1-4, LINE1-2.
- The 5th priority level :built MIC1 is priority to MIC2-4, LINE1-2.
- The constant voltage output: 70V, 100V, constant impedance output: 4-16Ω
Specifications
Model |
|
TI-1206S |
TI-2406S |
TI-3506S |
TI-5006S |
|||
Amplifier Section (Load 100V Output) |
Rated Output Power (THD 1%) |
120W(RMS) |
240W |
350W |
500W |
|||
Speaker Zone 1~6 Output |
25W MAX |
50W MAX |
70W MAX |
85W MAX |
||||
Mic Input Section (Mic 1~4 In@1KHz) |
Input Sensitivity/Impedance |
5mV 600Ω/350mV 10KΩ BAL |
||||||
S/N Ratio |
Better than 75dB |
|||||||
Frequency Response (±3dB) |
80Hz~16KHz |
|||||||
Tone Control (Bass:100Hz, Treble:10KHz) |
±10dB |
|||||||
Phantom Power |
+ 48V |
|||||||
Line Input Section (Mic 1~2 In@1KHz) |
Input Sensitivity/Impedance |
350mV/47KΩ |
||||||
S/N |
Better than 80dB |
|||||||
Frequency Response (±3dB) |
80Hz~16KHz |
|||||||
Tone Control (Bass: 100Hz,Treble:10KHz) |
±10dB |
|||||||
Tel Audio Input |
Input Sensitivity/Impedance |
775mV/10KΩ |
||||||
S/N |
Better than 75dB |
|||||||
Frequency Response (±3dB) |
50Hz~16KHz |
|||||||
EMC Audio Input |
Input Sensitivity/Impedance |
775mV/10KΩ |
||||||
S/N |
Better than 75dB |
|||||||
Frequency Response (±3dB) |
80Hz~16KHz |
|||||||
Pre Amp Out(Mic 1~4, Line 1~2, Tel In, Remote In) |
1V/600Ω |
|||||||
Remote MIC Sensitivity/Impedance |
775mV/10KΩ |
|||||||
THD |
≤ 0.1% at 1KHz, 1/3 rated power |
|||||||
Power Supply |
~110V/60Hz or ~230V/50Hz & DC 24V |
|||||||
Power Consumption |
210W |
380W |
530W |
750W |
||||
Weight |
6.7Kg |
7.2Kg |
8.6Kg |
9.0Kg |
||||
Dimensions |
484x310x88 mm |
