ITC TI-350DTB 5 Zone Class-D Mixer Amplifier 240W with MP3/Tuner/Bluetooth & USB 4 mic, 2 Aux, 1 Emc
หมวดหมู่สินค้า: ITC
รหัส : PS15ITC1245
สินค้ารับประกันคุณภาพ 1 ปี ราคายังไม่รวมค่าแรงติดตั้ง และค่าจัดส่งสินค้า
ราคาสินค้ายังไม่รวมภาษีมูลค่าเพิ่ม 7%
จาก 25,000.00 บาท
ลดทันที 10%
ราคา 22,500.00 บาท
10 พฤศจิกายน 2566
ผู้ชม 852 ผู้ชม

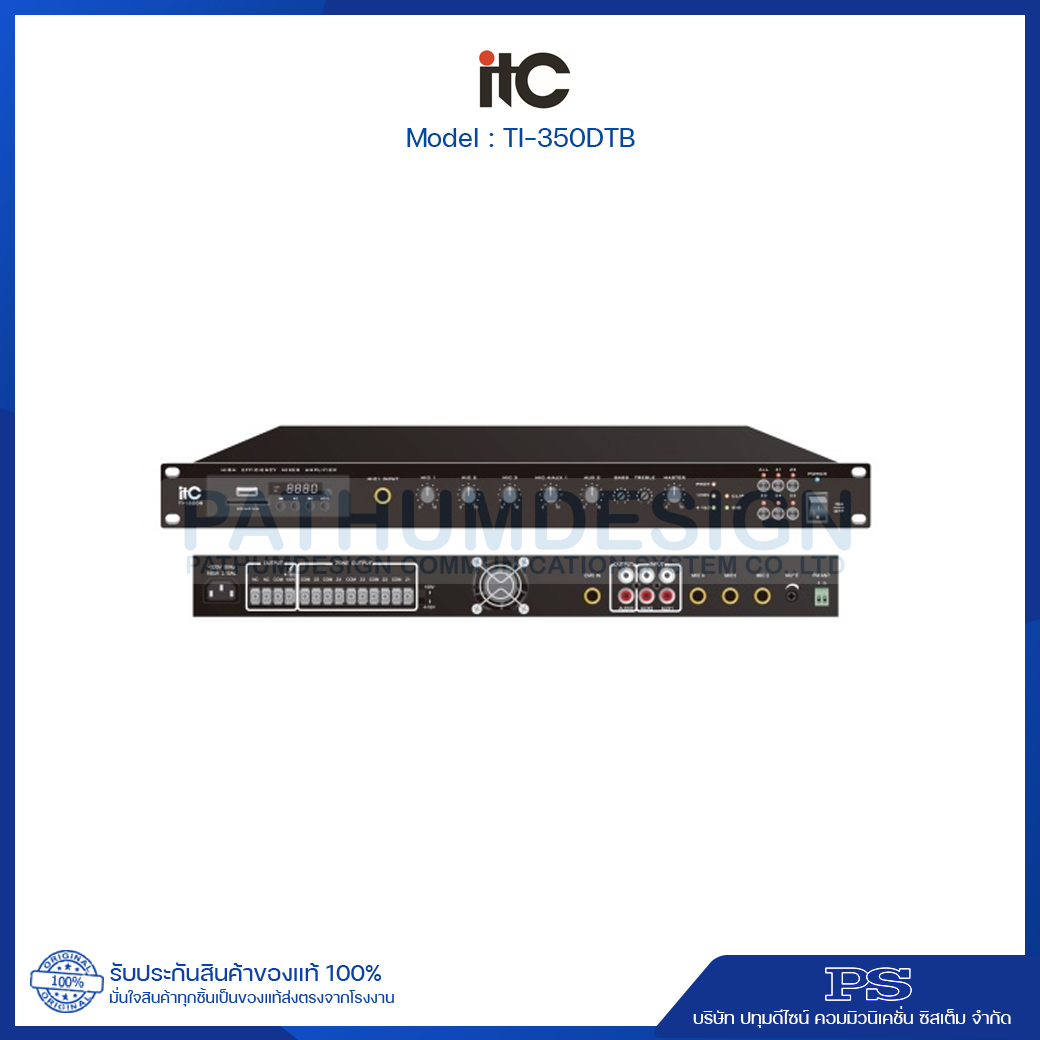

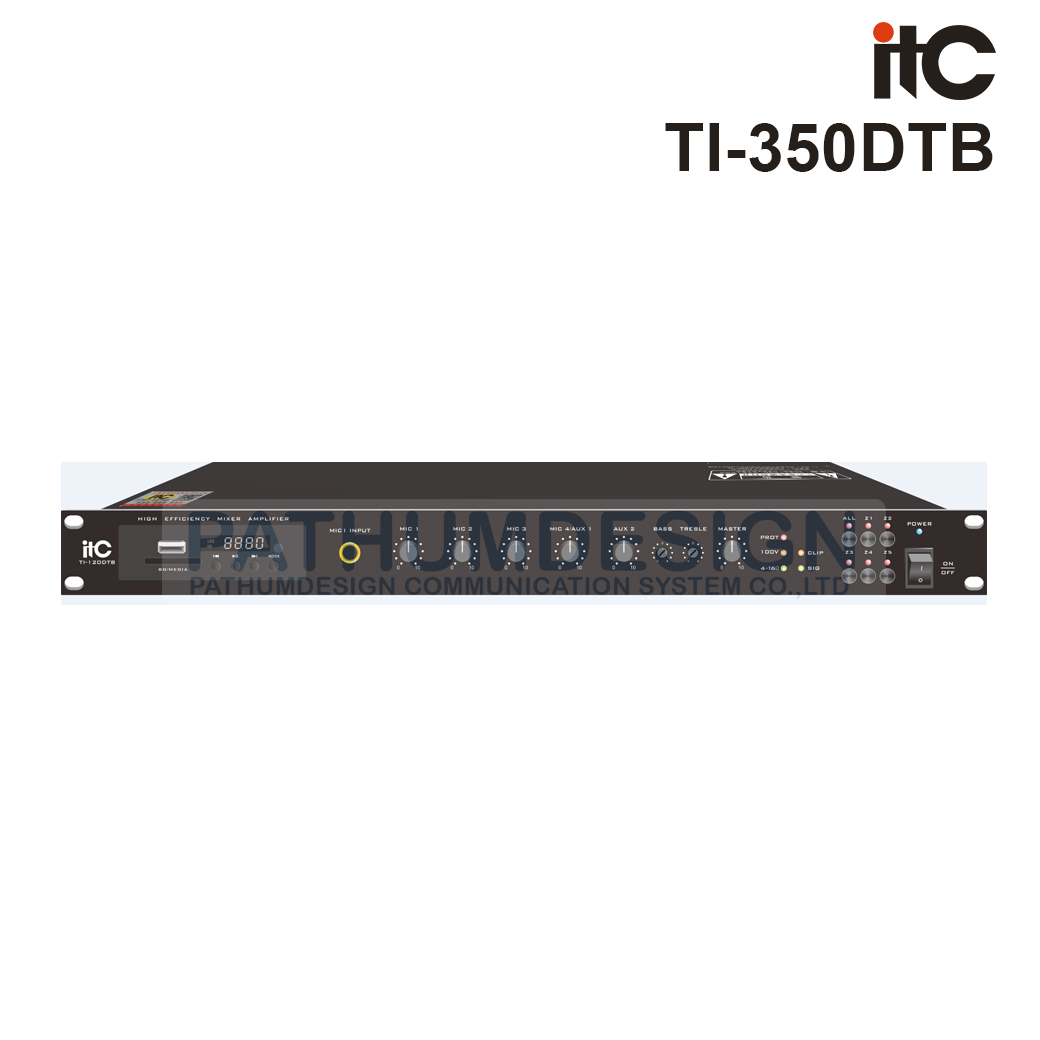

ITC TI-350DTB 5 Zone Class-D Mixer Amplifier 240W
with MP3/Tuner/Bluetooth & USB 4 mic, 2 Aux, 1 Emc
Product Usages
Digital mixer amplifier with Mp3/TUNER/Bluetooth.Ideal for small & medium supermarkets, malls, and indoor places like cafe shop to play background musics.
Features
- Standard rack mounted design(1U) with delicate SMT technology.
- With Mp3/TUNER/Bluetooth, songs being played can be shown on the digital screen.
- With Mp3/TUNER/Bluetooth remote control function.
- 1 EMC input, 2 AUX inputs, 4 MIC inputs.
- Channel priority function EMC>MIC1>MIC2, MIC3, AUX1, AUX2.
- Each input has independent volume adjustment, and the total volume has high pitch, bass adjustment and volume control.
- With electrical level and overload protection indicator.
- The device has good self-protection such as short circuit, overload and overheat.
- 2 kinds of output modes: 100V constant voltage output; 4-16Ω constant resistance output.
- With 5 zones selection.
- EMC input can activate partitioning zones.
- Perfect combined design for high efficiency& energy saving switch power and class-D amplifier, with high stability.
- Voltage Power Supply: 180V-240V
- Optional standby power supply 24V without delay for toggling pictures.
Specification
- Model : TI-350DTB
- Output : 4-16Ω, 100V
- Output Power : 350W
- Input Sensitivity & Impedance :
MIC1, 2, 3, 4 Input:5mV/600Ω Unbalanced 6.3 connector
AUX1, 2 Input: 350mV/10KΩ Unbalanced RCA connector - EMC Input: 775mV/10KΩ Unbalanced 6.3 connector
- Output Sensitivity & Soure Impedance : MIX OUT:1000mV/470Ω Unbalanced RCA connector
- Tone : Bass: ±10dB at 100Hz Treble: ±10dB at 10KHz
- Frequency Response : 50~16KHz(+1dB,-3dB)
- S/N Rate : MIC1, 2, 3: 66dB; AUX1, 2: 80dB
- THD : Less than 0.5%(at 1KHz,1/3 Rated Power)
- Mute Function : EMC>MIC1>MIC2, MIC3, AUX1, AUX2
- Capacity : 5 Zones
- Channel Crosstalk : ≥50dB
- Attenuation
- Heat Dissipation : The fan starts work when powered on. Winds flank in and out from the back, can lead to strong cooling effect. with infinitely variable speed.
- Protection : Short circuit, overload and overheat
- Power Supply : ~220-240V /50Hz
- Power Consumption : 450W
- Dimension : 484×260×44mm
- Weight : 4.0Kg
