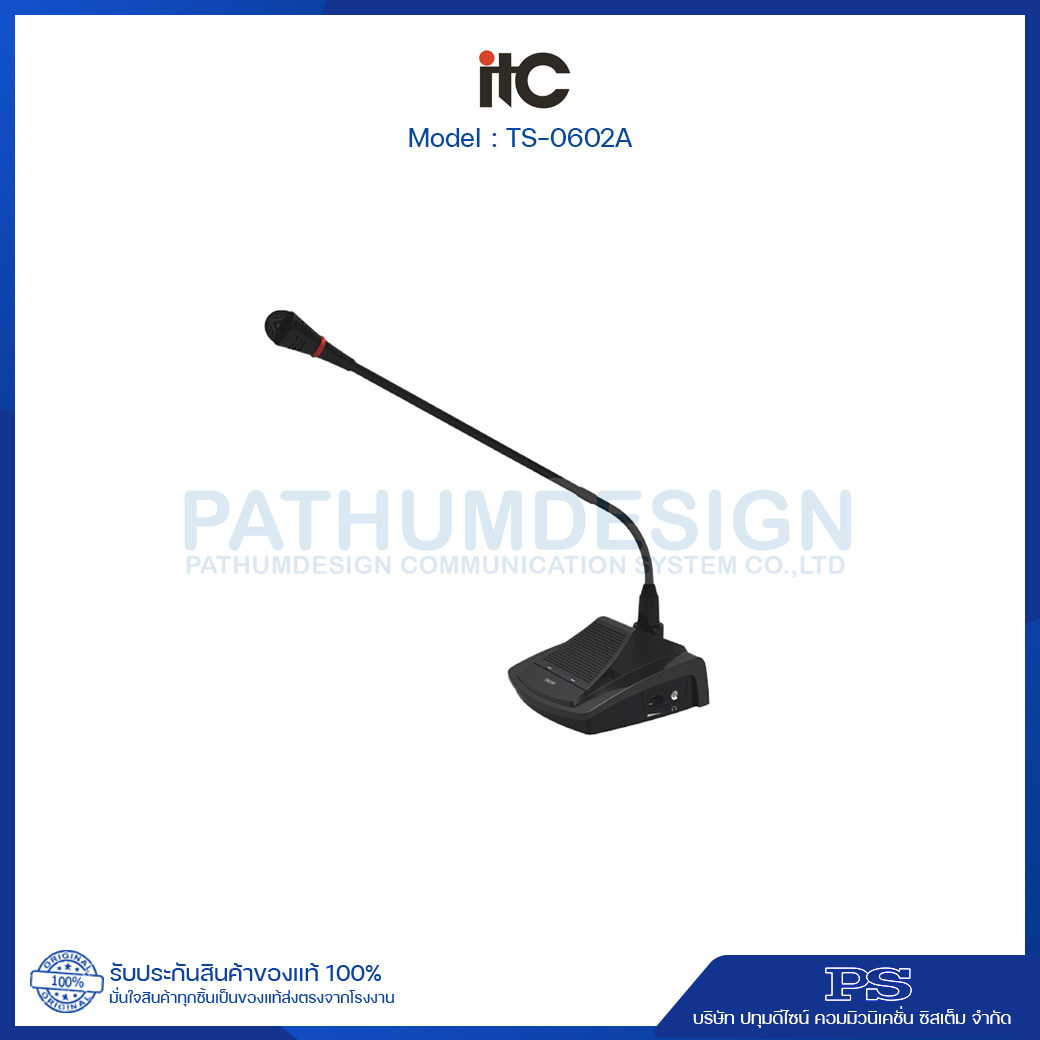

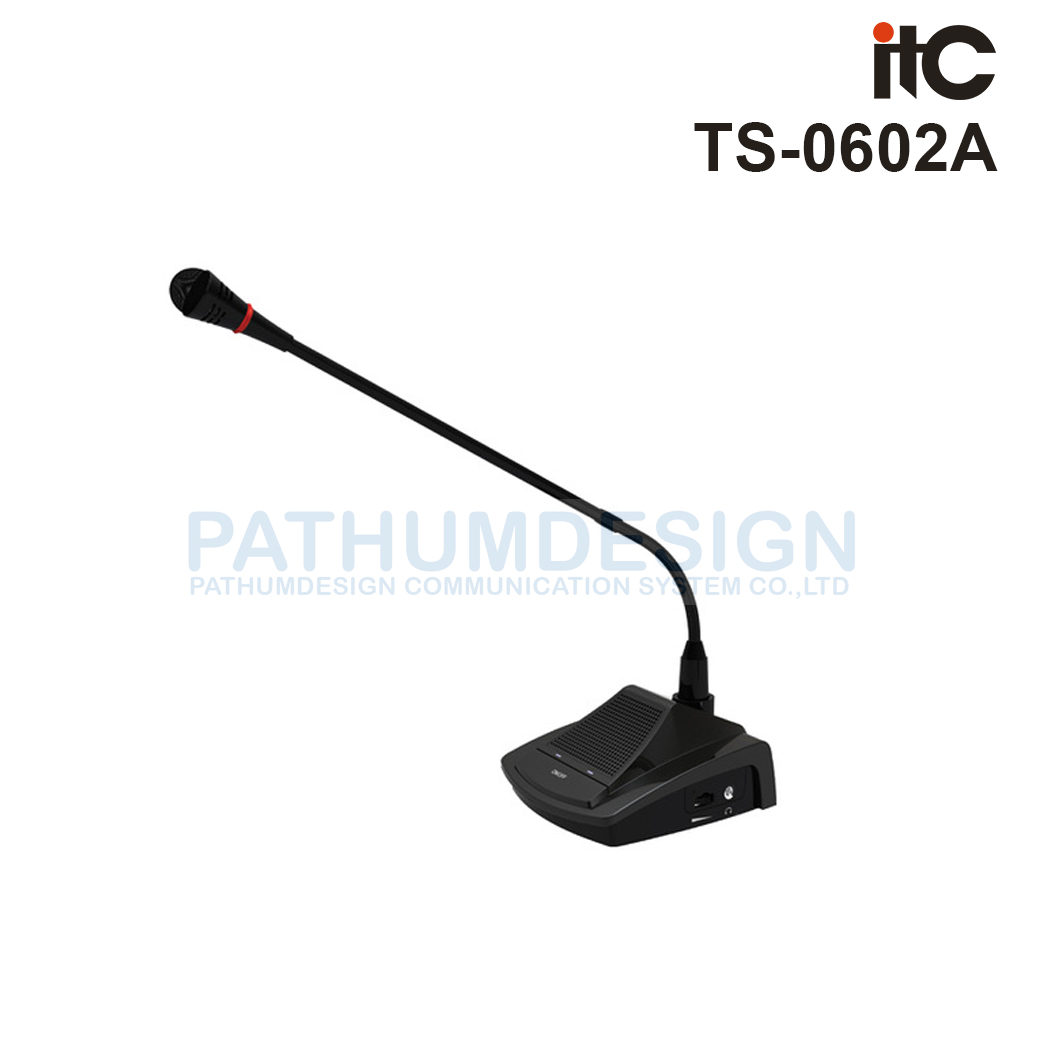

ITC TS-0602A Digital Desktop Discussion Conference Delegate
ไมโครโฟนสำหรับผู้ร่วมประชุม
Feature
* With microphone, speaking button and indicator lamp that can show and control the state of speech.
* Single projection; With Anti-gas sonic boom and wind shield.
* With president priority key; the system sound can be prompted to attract attendances’attention; can be set to terminate for permanent or suspend microphone status of all the speakers.
* The chairman unit can be placed in any position in loop.
* The chairman unit is unrestricted by the limiting function.
* With under-wound capacitive microphone pole and speak halo instructions.
* High sensitivity microphone.
* The power for the delegate units is supplied by the master controller at 24 safe voltage.
* T-shaped 8-core line for unit connection.
* Two groups of 3.5mm stereo sound output socket; can be used as record and earphone connection.
* Built-in hi-fi speaker; volume control.
* With automatic video-tracking function.
* With a microphone unit connecting cable.
* In accordance with Enternational Electrical Equipment Certification standards (IEC 60914) and the International Safety Standard UL or CE certification.
* Latest digital design.
* With microphone, speaking button and indicator lamp that can show and control the state of speech.
* Single projection; With Anti-gas sonic boom and wind shield.
* With under-wound capacitive microphone pole and speak halo instructions.
* High sensitivity microphone.
* The system power supply for all the delegate unites is provided by the main frame at 24 safe voltage.
* T-shaped 8-core line for unit connection.
* Two groups of 3.5mm stereo sound output socket; can be used as record and earphone connection.
* Built-in hi-fi speaker; volume control.
* With automatic video-tracking function.
* With a microphone unit connecting cable.
* In accordance with Enternational Electrical Equipment Certification standards (IEC 60914) and the International Safety Standard UL or CE certification.
Specifications
Model |
TS-0602/TS-0602A |
Power Supply |
DC24V (Powered by the controller) |
Unit Connector |
8 core aviation plug |
Power Consumption |
3W |
Earphone output |
9dBu, 8-32Ω, 3.5mm phone jack |
Speaker Power |
≤2W |
Type of Microphone |
High directivity column polar body |
Directional Property |
Heart shape |
SNR (S/N) |
>80dB |
Crosstalk Attenuation |
>80dB |
Distortion |
<0.10% |
Frequency Response |
80Hz-16kHz |
Equivalent Noise |
≈20dB SPL |
Maximum SPL |
105dB (3% threshold) |
Sensitivity |
-22dBv/Pa |
Length of Pole |
415mm |
Colour |
Black |
Dimensions |
144 x 128 x 62mm |
Weight |
0.86Kg |
