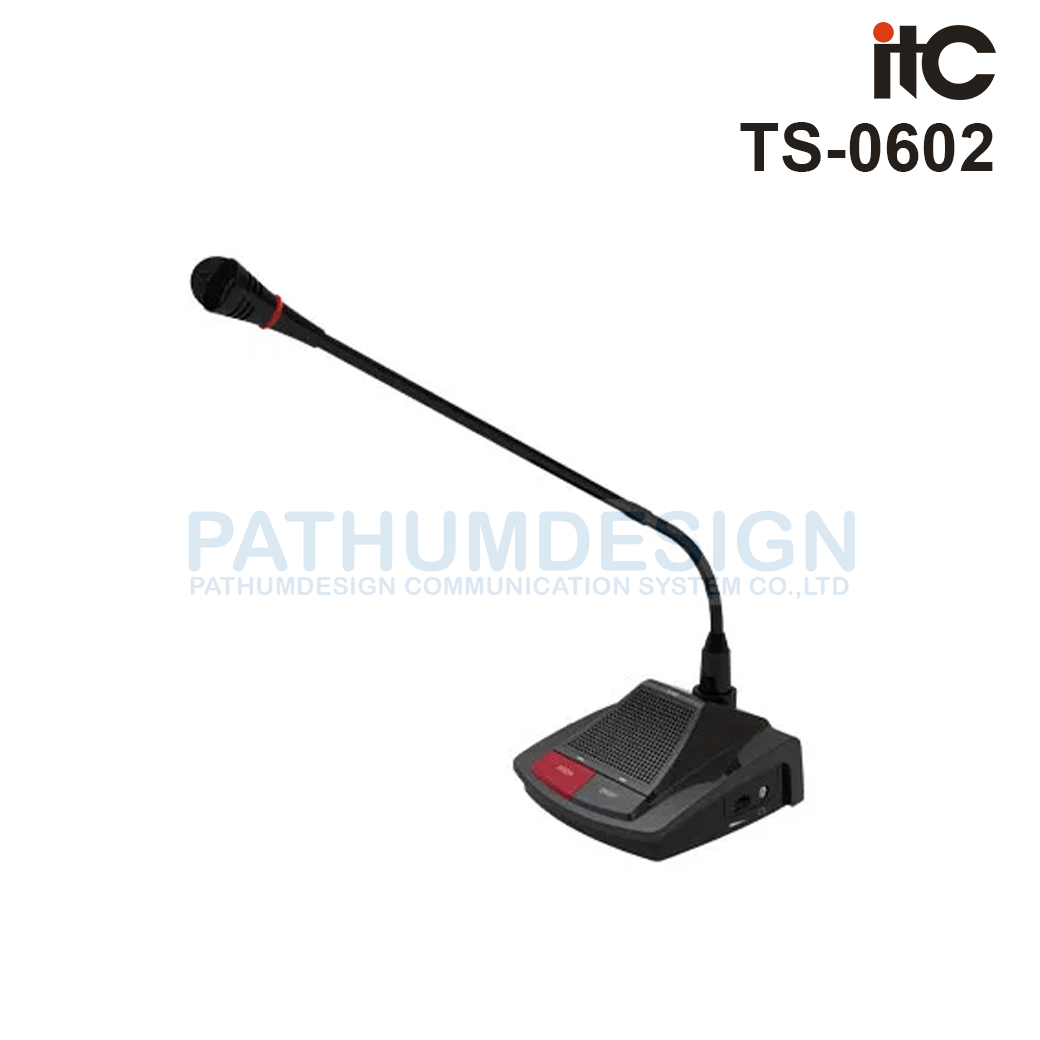

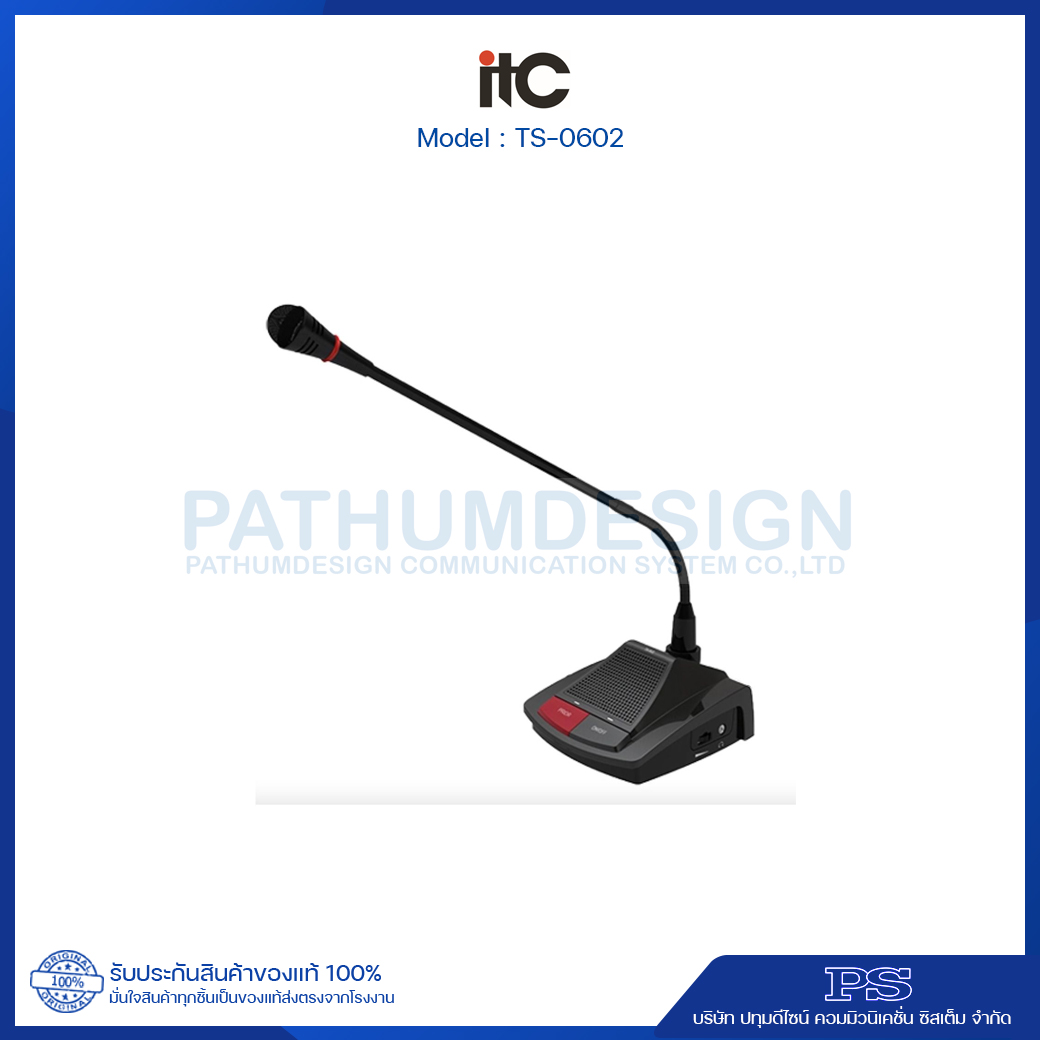

ITC TS-0602 Digital Desktop Discussion Conference Chairman Unit
ไมค์ประชุมสำหรับประธาน ระบบดิจิตอล ไมโครโฟนชุดประชุม
Feature
- Latest digital design.
- With microphone, speaking button and indicator lamp that can show and control the state of speech.
- Single projection; With Anti-gas sonic boom and wind shield.
- With president priority key; the system sound can be prompted to attract attendances’attention; can be set to terminate for permanent or suspend microphone status of all the speakers.
- The chairman unit can be placed in any position in loop.
- The chairman unit is unrestricted by the limiting function.
- With under-wound capacitive microphone pole and speak halo instructions.
- High sensitivity microphone.
- The power for the delegate units is supplied by the master controller at 24 safe voltage.
- T-shaped 8-core line for unit connection.
- Two groups of 3.5mm stereo sound output socket; can be used as record and earphone connection.
- Built-in hi-fi speaker; volume control.
- With automatic video-tracking function.
- With a microphone unit connecting cable.
- In accordance with Enternational Electrical Equipment Certification standards (IEC 60914) and the International Safety Standard UL or CE certification.
- Latest digital design.
- With microphone, speaking button and indicator lamp that can show and control the state of speech.
- Single projection; With Anti-gas sonic boom and wind shield.
- With under-wound capacitive microphone pole and speak halo instructions.
- High sensitivity microphone.
- The system power supply for all the delegate unites is provided by the main frame at 24 safe voltage.
- T-shaped 8-core line for unit connection.
- Two groups of 3.5mm stereo sound output socket; can be used as record and earphone connection.
- Built-in hi-fi speaker; volume control.
- With automatic video-tracking function.
- With a microphone unit connecting cable.
- In accordance with Enternational Electrical Equipment Certification standards (IEC 60914) and the International Safety Standard UL or CE certification.
Specification
Model |
TS-0602/TS-0602A |
| Power Supply | DC24V (Powered by the controller) |
| Unit Connector | 8 core aviation plug |
| Power Consumption | 3W |
| Earphone output | 9dBu, 8-32Ω, 3.5mm phone jack |
| Speaker Power | ≤2W |
| Type of Microphone | High directivity column polar body |
| Directional Property | Heart shape |
| SNR (S/N) | >80dB |
| Crosstalk Attenuation | >80dB |
| Distortion | <0.10% |
| Frequency Response | 80Hz-16kHz |
| Equivalent Noise | ≈20dB SPL |
| Maximum SPL | 105dB (3% threshold) |
| Sensitivity | -22dBv/Pa |
| Length of Pole | 415mm |
| Colour | Black |
| Dimensions | 144 x 128 x 62mm |
| Weight | 0.86Kg |
