ITC TS-0622 Chairman Discussion Voting Unit ITC TS-0622 Chairman Discussion Voting Unit
หมวดหมู่สินค้า: ITC
รหัส : PS15ITC1186
สินค้ารับประกันคุณภาพ 1 ปี ราคายังไม่รวมค่าแรงติดตั้ง และค่าจัดส่งสินค้า ราคาสินค้ายังไม่รวมภาษีมูลค่าเพิ่ม 7%
จาก 18,000.00 บาท ลดทันที 10%
ราคา 16,200.00 บาท

10 พฤศจิกายน 2566

ผู้ชม 761 ผู้ชม

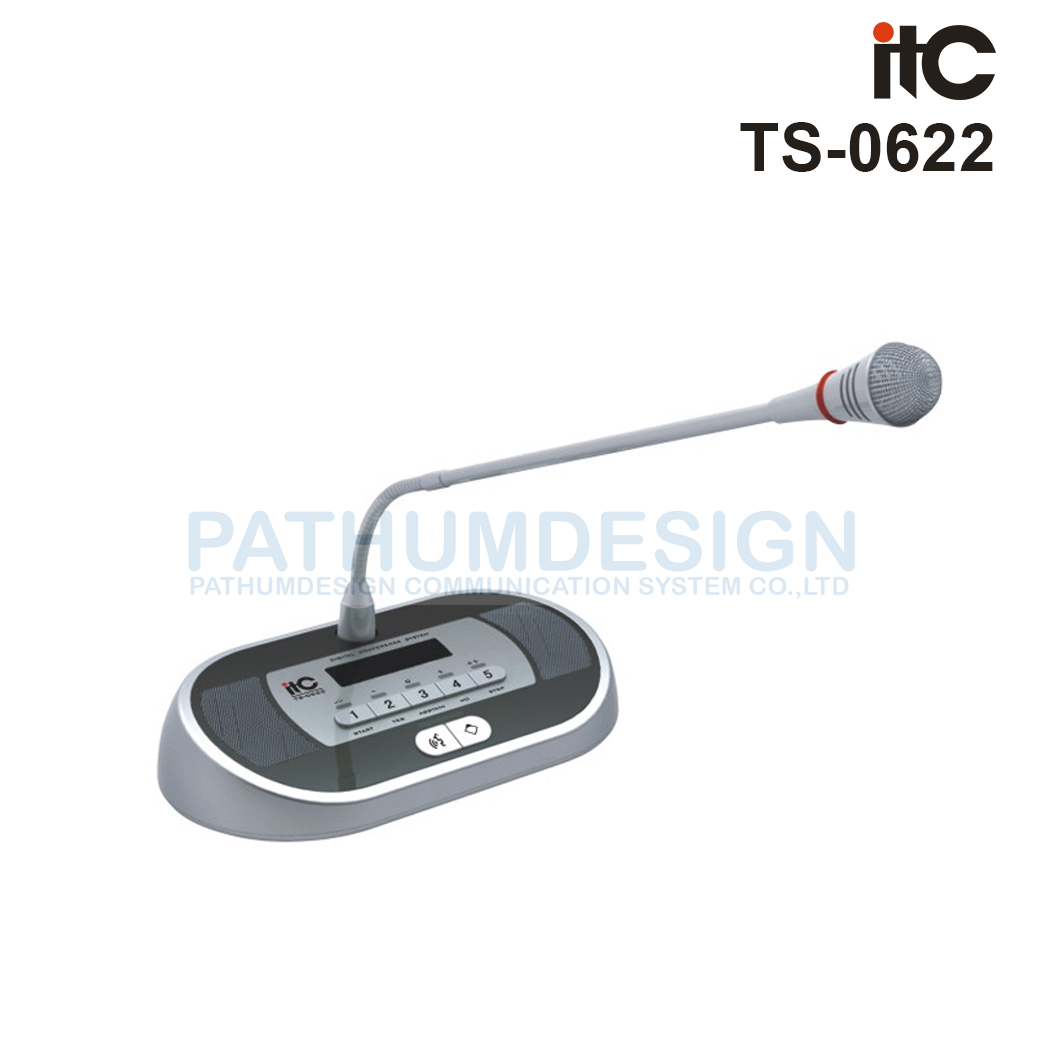

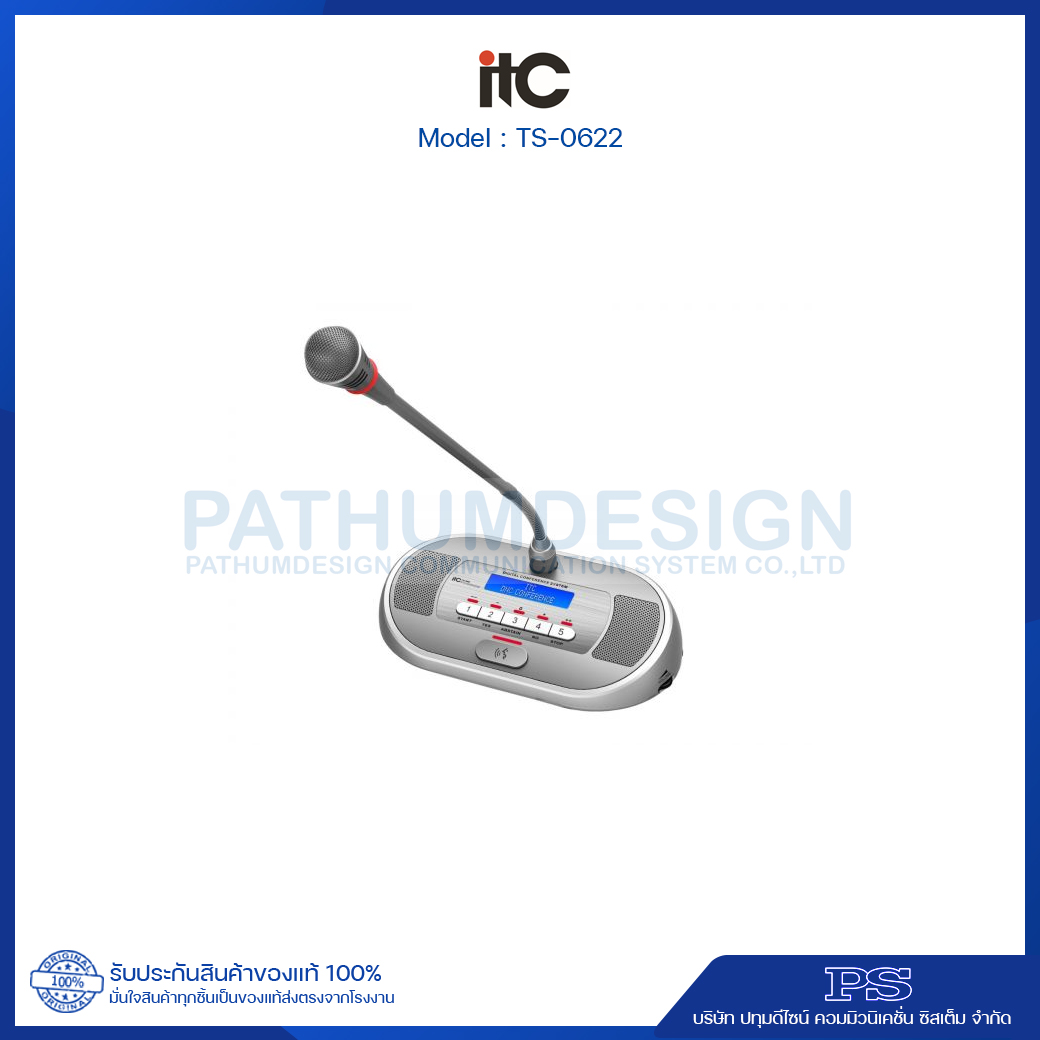

ITC TS-0622 Chairman Discussion Voting

ไมโครโฟนพร้อมลำโพงสำหรับประธาน





Features

- Chairman unit TS-0622 with priority controlover control the delegate unit.

- Chairman unit speech is not limited by discussion speech quantity.

- Chairman unit could be connected to amywhere of the system.

- Built-in LCD displays the voting result and contribution mode.

- Five numeric voting bottons include agree, abstain and oppose contribution.

- ABS patented design of anti-radio frequency technology for superior sound restoration and voice clarity.

- Frequency Response 20-20,000Hz

- Particular high sensitivity microphone design to avoid any low frequency shock.

- First-level sound restoration and voice clarity gooseneck microphone.

- Dual color indicator for directi display of difference service red for speech and green for apply speech.

- Anti-squeal technology. the built-in speaker will be automatically off when microphone is on.

- Built-in a 2.5W speaker and earphone monitor output & attenuator.

- All of the microphone unit are linked together hand-by-hand by 8 pins particular cable.

- With 2 meters aluminium foil and waterline shielded cable of anti-electromagnetic wave interference.

- Easy microphone ID set up

- All of the microphone units are power supplied bythe controller bysafe DC 24V



Specifications

Model

TS-0622 & TS-0622A

Description

Chairman/Delegate discussion/voting unit

Power Supply

DC 24V powered by controller

Connector

8 Pins particular connector

Power Consumption

3W

Earphone

input, 9dBu, 8-32Ω

Directivity

cardioid type

Speaker Power

2W

Microphone Type

condenser microphone

S/N Ratio

90dB

Crosstalk

80dB

Distortion

<0.1%

Equivalent Noise

20dB

Max SPL

105dB

Frequency Response

50-20k Hz

Sensitivity

-22dB

Dimension (W×H×D)

225x131x48mm

Tube Length

415mm

Weight

0.9kg
