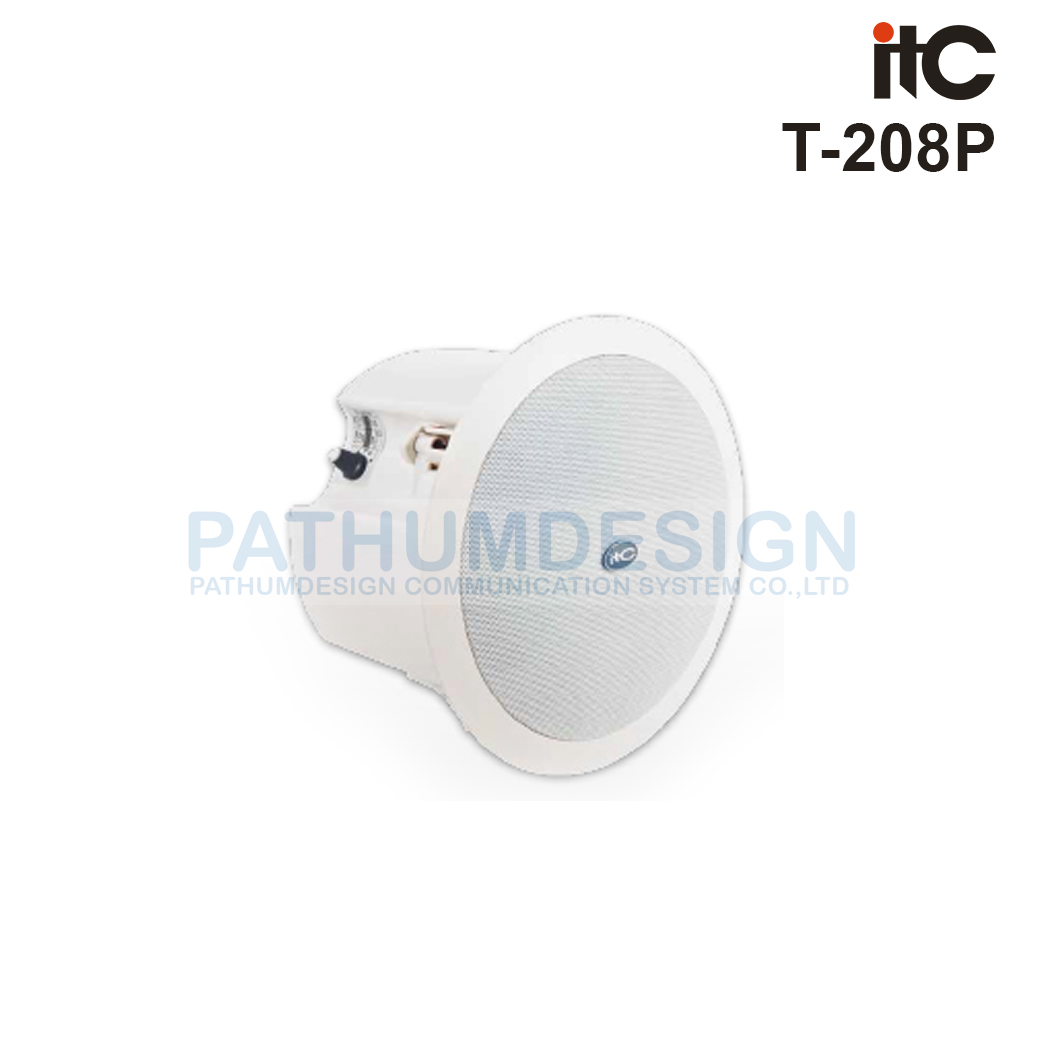

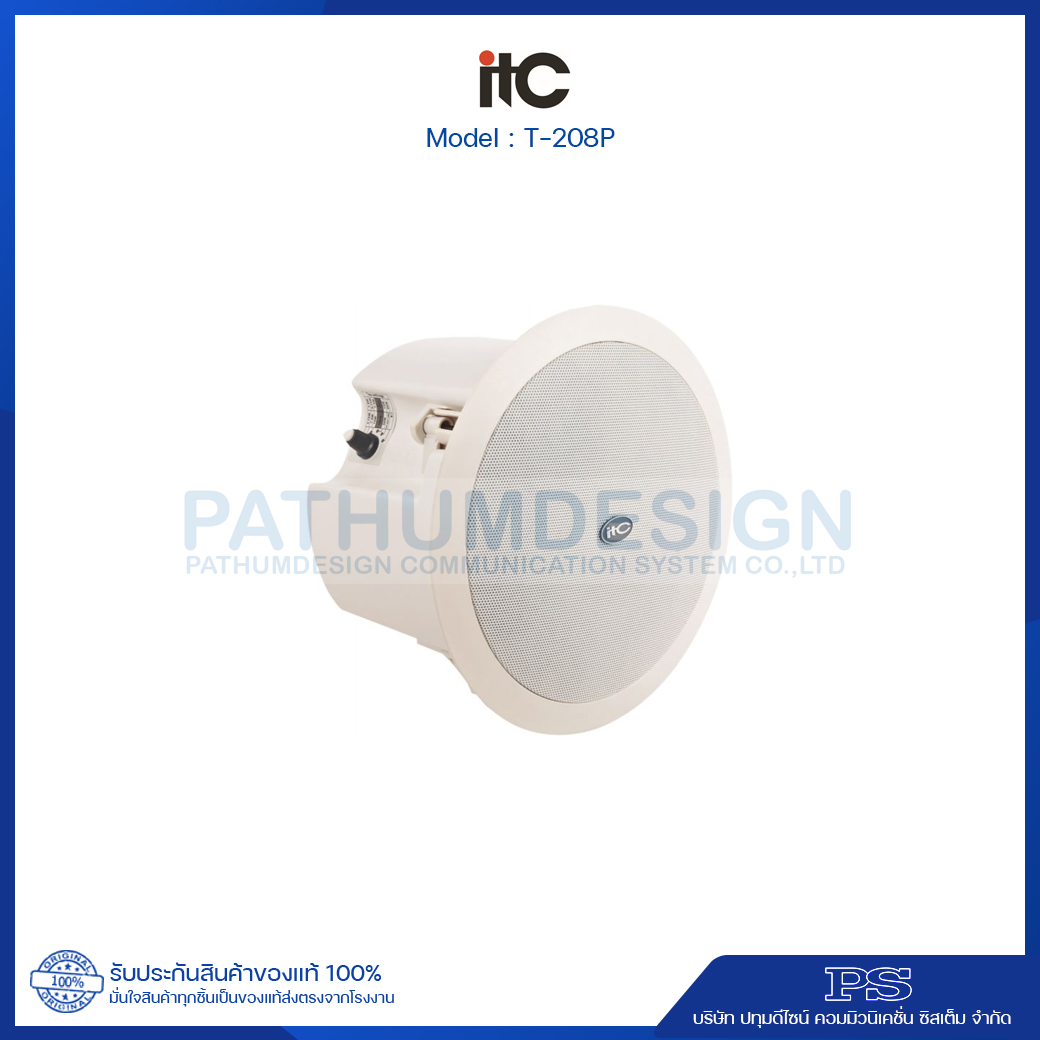

ITC T-208P 6.5in Coaxial Ceiling Loudspeaker(6W-12W-25W-50W)
Features
- Built-in 100v/70v transformer
- In-ceiling type loudspeaker
- 6.5” +1.5” coaxial speaker unit
- Power output 6W, 12W, 25W & 50W @100V
- Built-in crossover for hi-fi use
- Line input: 100V, 70V or 8Ω
- Metal grille, ABS baffle & ABS back cover
- Paint in white color
- Secure flush mount installation
Description
The T-208P is a ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 6.5”+1.5” coaxial speaker driver is designed of wide frequency response 100-18kHz, and its various power output from 6W, 12W, 25W & 50W could meet different room size applications. The power taps is convenient to switch the input from 100V to 70V or 8Ω, thus this speaker support both high impedance input and low impedance input use. The metal grille, ABS baffle and ABS back cover are painted in attractive white color. Its flush mount type makes the easy and secure installation.
It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.
Specification
Model | T-208P |
Power Taps @100V | 6W, 12.5W, 25W, 50W |
Power Taps @70V | 3W, 6W, 12.5W, 25W, 50W |
Transformer Impedance | Black: Com Red: 1.7KΩ/800Ω/ 400Ω/200Ω/100Ω |
Input | 70V/100V/8Ω |
SPL(1W/1M) | 90dB |
Max. SPL (Rated W/1M) | 107dB |
Frequency Response (-10dB) | 90-20KHz |
Finish | Baffle: ABS, White Grille: Steel, White |
Speaker Driver | 6.5" x 1 1.5" x 1 |
Cutout Size | 250mm |
Dimensions | 280 x 190mm |
Weight | 2.8Kg |
Mounting | Flush-mount dog ears |
