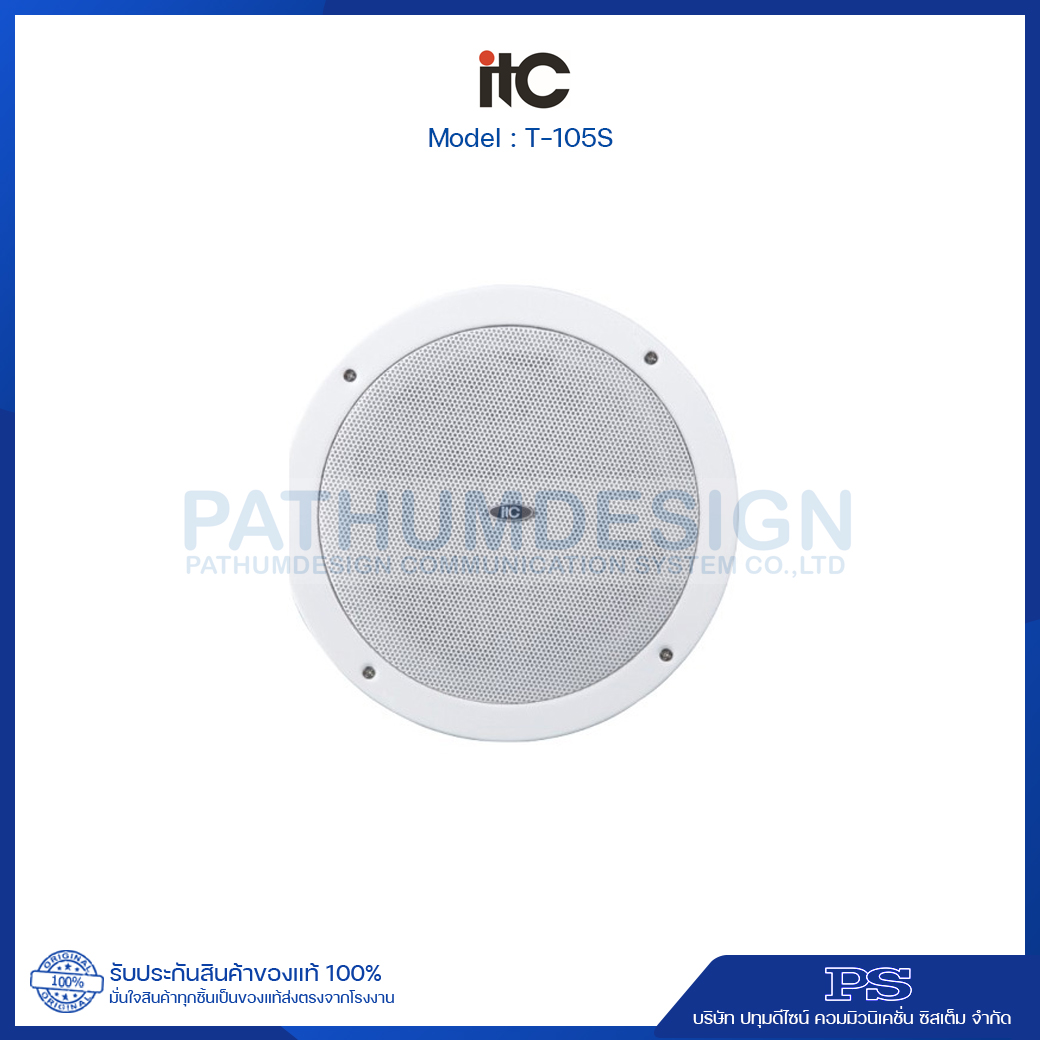

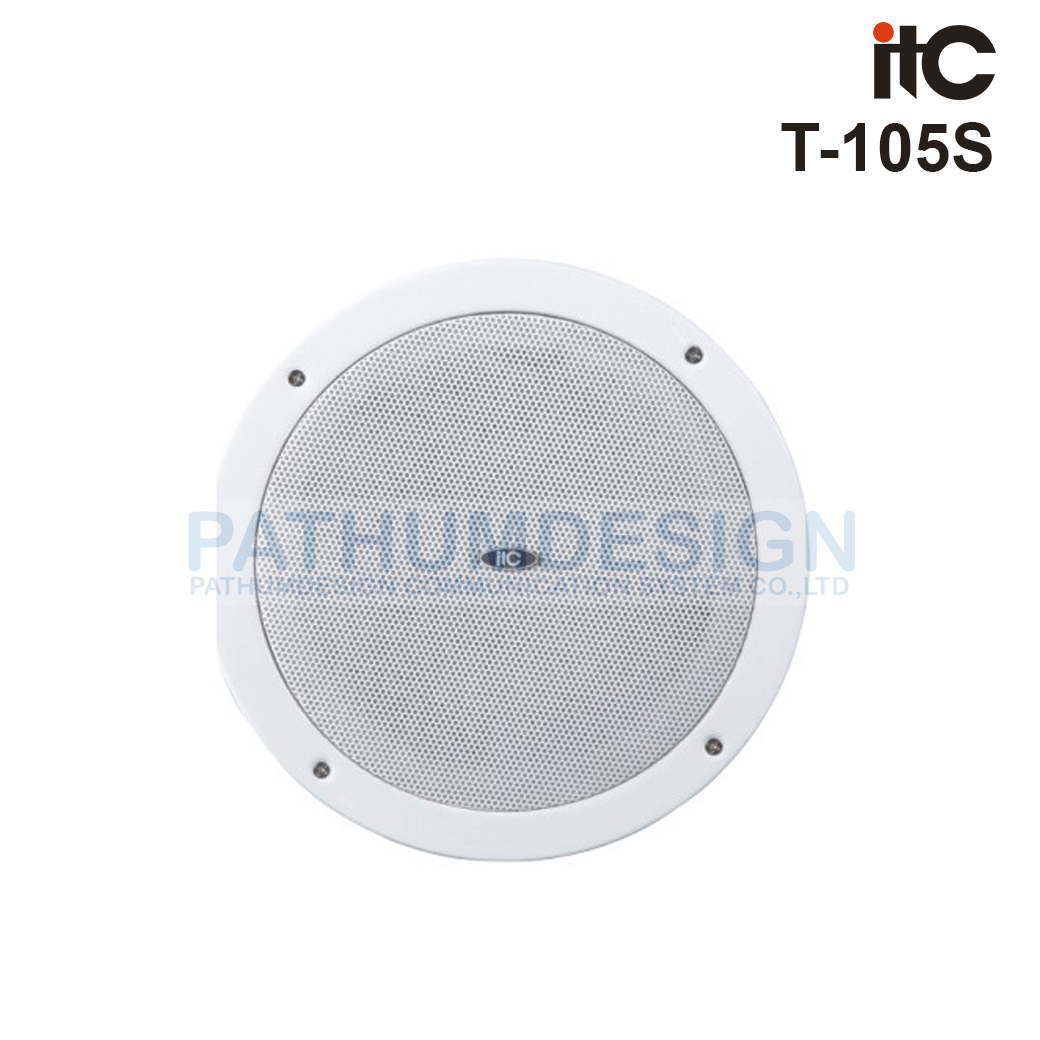

ITC T-105S 5in Surface Mount Ceiling Loudspeaker(3W-6W-9W)
Features
- Built-in 100v/70v transformer
- Surface mount ceiling type loudspeaker
- 5” speaker unit
- Power taps 3w-6w-9w @100V
- Metal grille, metal baffle and metal back cover
- Surface mounted on wall or roof without cutting hole
Description
The T-105S is a surface mount ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 5” speaker driver is designed of wide frequency response 110-14.5kHz, power output is 3w, 6w & 9w. The metal grille, metal baffle and metal back cover are in attractive white color.
The surface mount type is designed for some special application where cutting hole in roof is impossible, so the speaker needs to be directly mounted to the surface of the roof or wall.
It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.
Specification
| Model | T-105S |
| Power Taps @100V | 3W, 6W, 9W |
| Power Taps @70V | 1.5W, 3W, 4.5W |
| Impedance | Black: Com Red:3.3KΩ Green:1.7KΩ White:1.1KΩ |
| SPL(1W/1M) | 94dB |
| Max. SPL (Rated W/1M) | 104dB |
| Frequency Response (-10dB) | 110-14500Hz |
| Finish | Baffle: Steel,White Grille: Steel,White |
| Speaker Driver | 5" x 1 |
| Dimensions | 200 x 70mm |
| Weight | 0.71Kg |
| Mounting | Fixed by screw |
