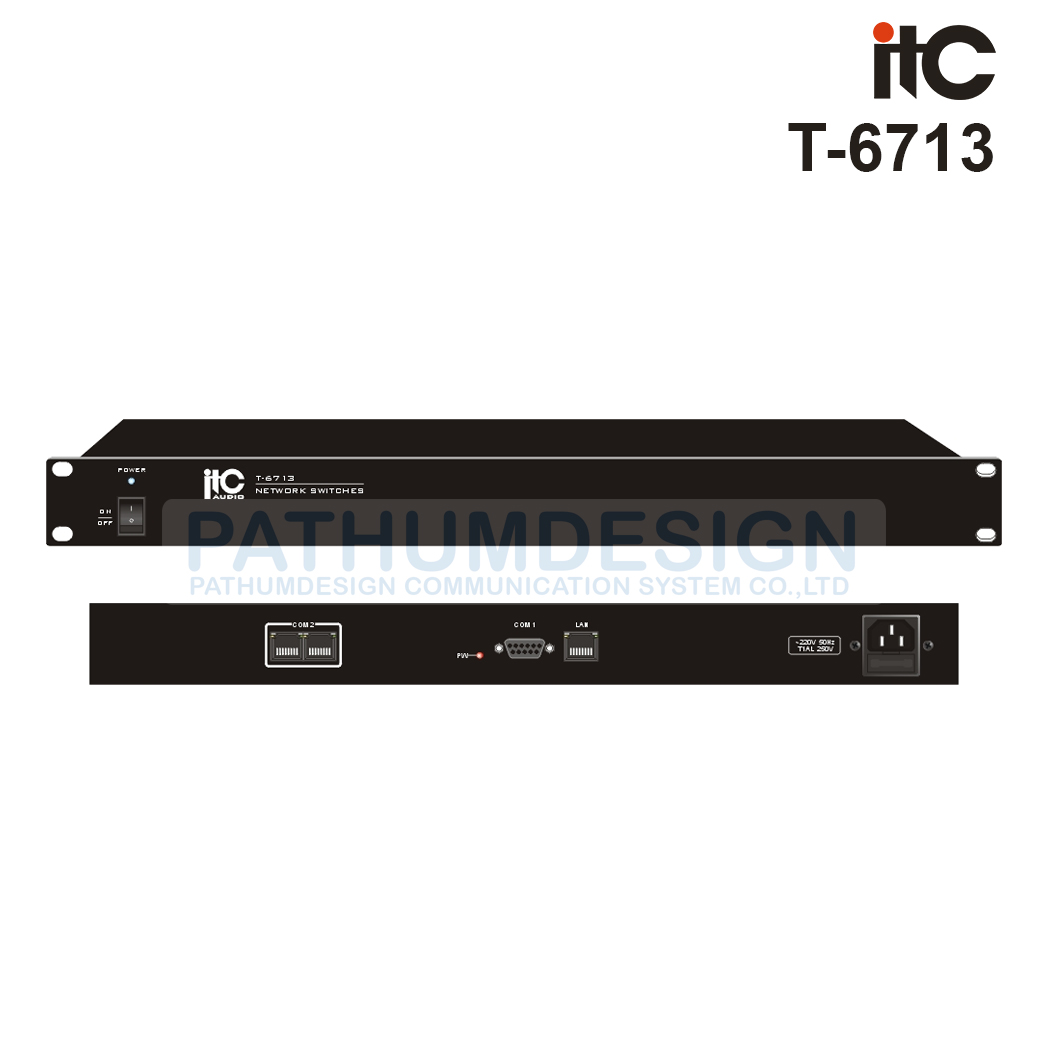

ITC T-6713 Data Converte
Description
The T-6713 is data converter to convert TCP/IP data into RS422 one for long distance use, whichcould work together both with voice alarm panel and wireless program control panel synchronously
Features
*19 rack mount design of 1U height
*Convert TCP/IP data into RS422 for long distance use
*Synchronously work together with voice alarm panel and wireless control
*One communication control port by RJ45 type
*Two communication ports with voice alarm panels and remote control
*One power indicator
*One serial communication port for write in or change IP address
*AC 110V or 230V operation
Specifications
Model T-6713
Communication Control Port R J45 port
Communication Protocol RS232 & RS422
Communication Speed 4800/9600bps
Power Consumption ≤10W
Power Supply AC110V or 230V, 50-60Hz
Dimensions 484x123x44mm
Weight 2.72Kg
