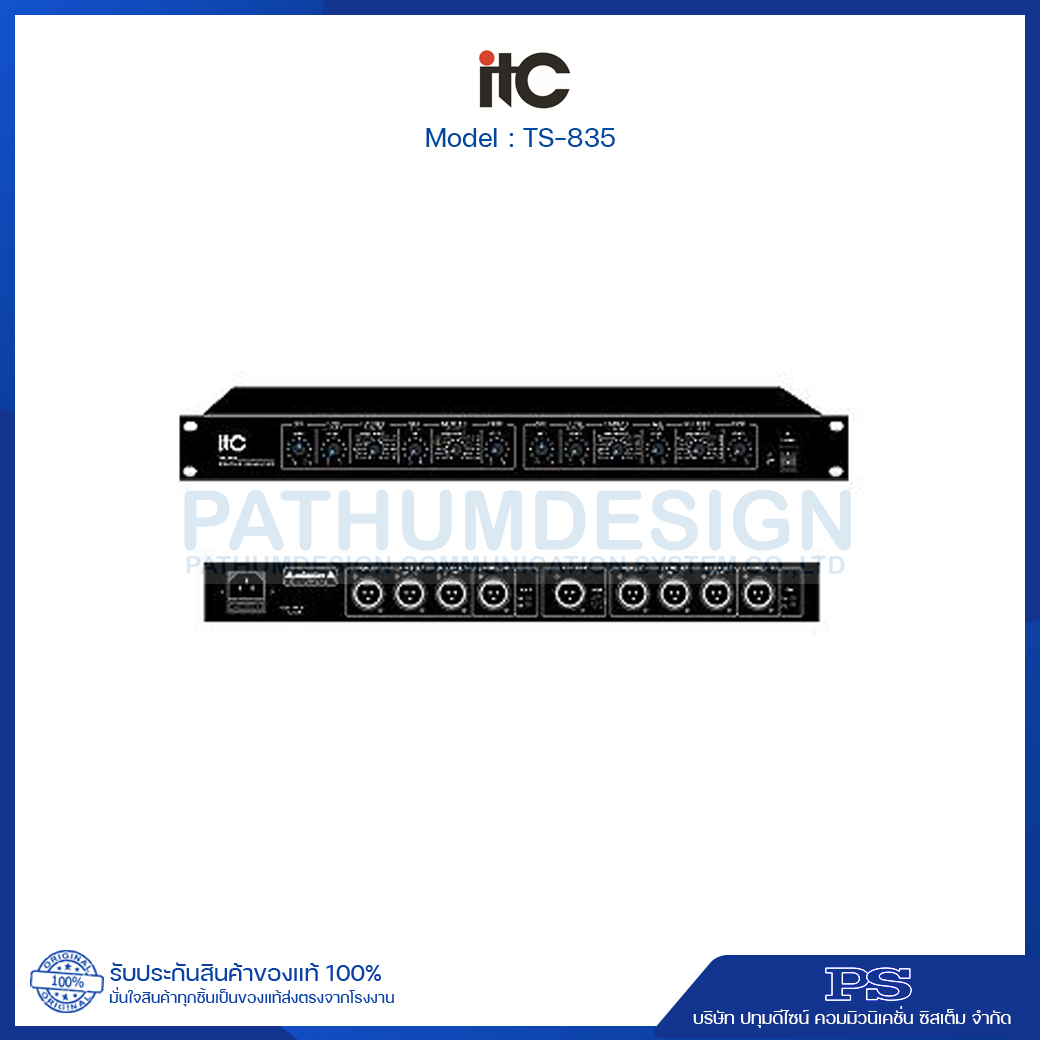

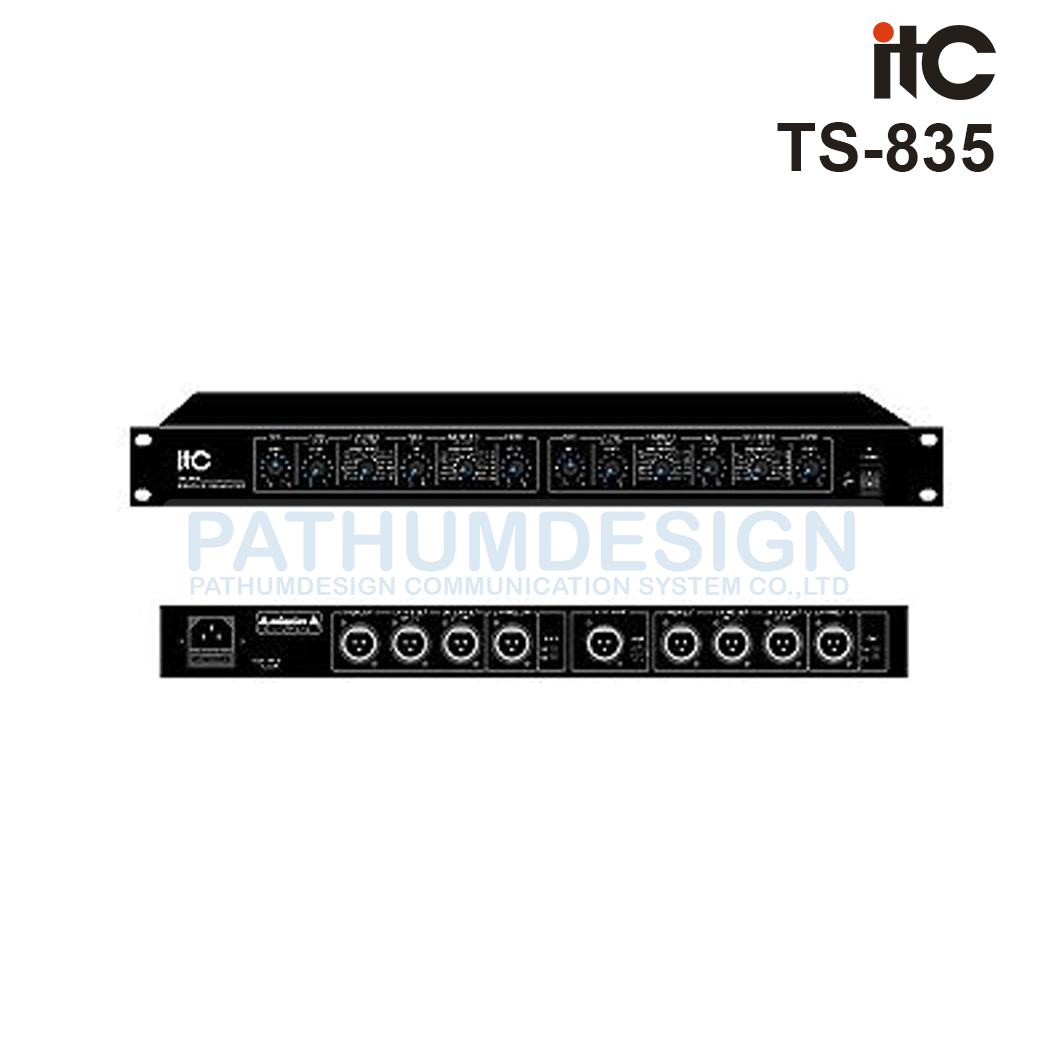

ITC TS-835 Electronic Frequency Divider
Descriptions
Features
* Double channel audio processing.
* Independent Treble/Bass output + heavy bass mixing output in each channel.
* Output volume can be adjusted independently.
* Binary frequency and three points frequency are optional.
* Frequency points are continuously adjustable.
* High-fidelity sound quality, low distortion, high SNR.
Specifications
Model |
TS-835 |
Power Supply |
AC220V/50Hz |
Input Output Interface |
XLR Balance |
Input Impedance |
10KΩ |
Output Impedance |
600Ω |
Frequency Response |
20Hz~20KHz/-1dB |
Gain Control |
±10dB |
THD Rate |
<0.08% |
SNR |
> 105 dB |
Points Frequency Mode |
Binary frequency and three points frequency are optional |
Frequency Divide Point |
a. three way frequency: Bass and middle frequency: 70Hz-1KHz, continuous adjustable Middle and treble frequency: 190Hz-7KHz, continuous adjustable b. Two way frequency: Treble and bass frequency: 190Hz-1Khz, continuous adjustable |
Total Power Consumption |
<12 W |
Dimension |
48×09×44mm |
Weight |
3.0Kg |
