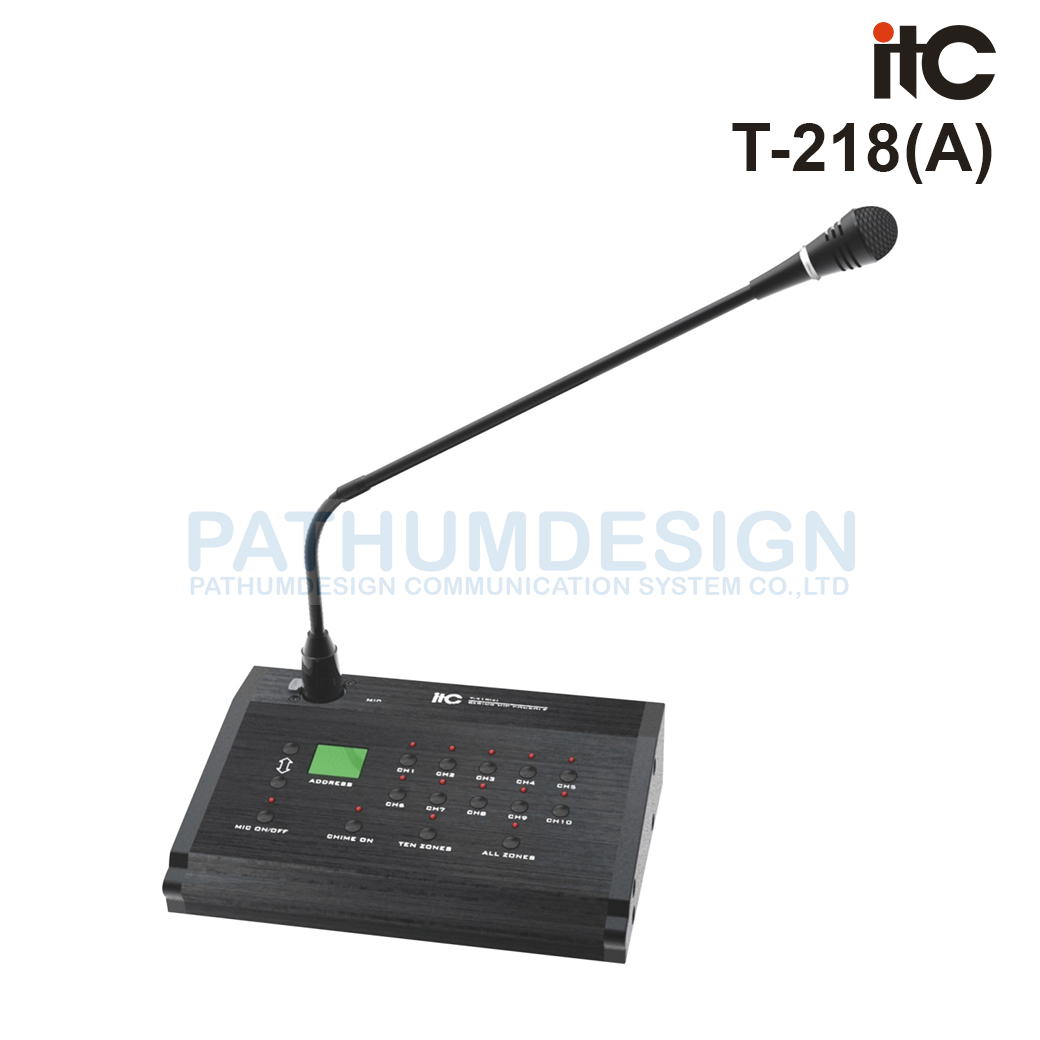

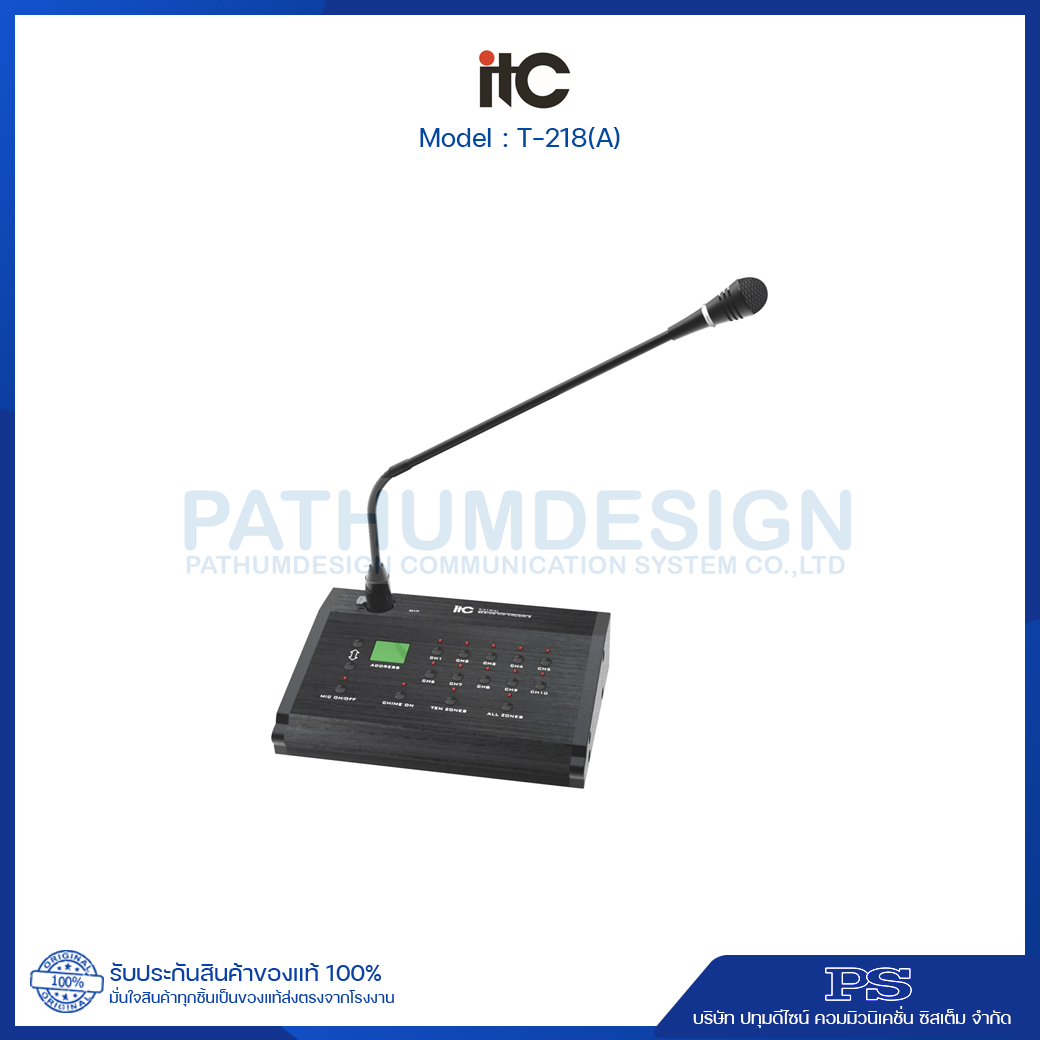

ITC T-218(A)Zone Paging MIC
ไมค์โครโฟน ปราศรัย ไมโครโฟนตั้งโต๊ะ สำหรับระบบประกาศ Zone Paging MIC
T-218(A) Descriptions
The T-218(A) is a high performance remote zone paging console that
works with zone paging controller T-6212(A) for remote paging and
control over a multi-zone system.
Several paging modes (all zone, group zones, 10 zones and individual
zones) could be achieved through this paging console. Features include
capability of 16 microphones and 300 paging zones work at the same time,
the T-218(A) will easily distinguish T-6212(A) with its pre-set ID address.
T-218(A)'s paging system with priority over background music system.
Features
-
With operation number input keys and LED display
-
Capacity of manage 30 paging selectors T-6212(A), up to 300 zones
-
Max remote control distance up to 1Km
-
With microphone volume control
-
RCA line input and output
-
Built-in chime and chime volume control
-
Max 16 microphone work together with RJ45 port in series connection
Specifications
|
Model |
T-218(A) |
|
Input |
MIC:600Ω, 10mV, unbalanced Line:10KΩ,775mV, unbalanced |
|
Output |
Balanced |
|
Frequency Response |
MIC: 100Hz~15KHz; Line: 30Hz~18KHz |
|
S/N Ratio |
MIC input: 60dB Line input: 80dB |
|
Controls |
Chime MIC VOL controls, 160 channel selectors, chime button, power switch |
|
Indicators |
Powter LED, 10 paging channel LEDs |
|
Protection |
AC fuse, 0.5A |
|
Power Supply |
DC 24V |
|
Power Consumption |
10W |
|
Weight |
1.25Kg |
|
Dimensions |
220x142.7x51.5mm |
|
Communication Protocol |
RS422 |
|
Communication Input |
RJ45 |
|
Communication Speed |
4800b |
|
Finish |
Panel: steel plate, black Case: steel plate, black Side board: plastic, black |
