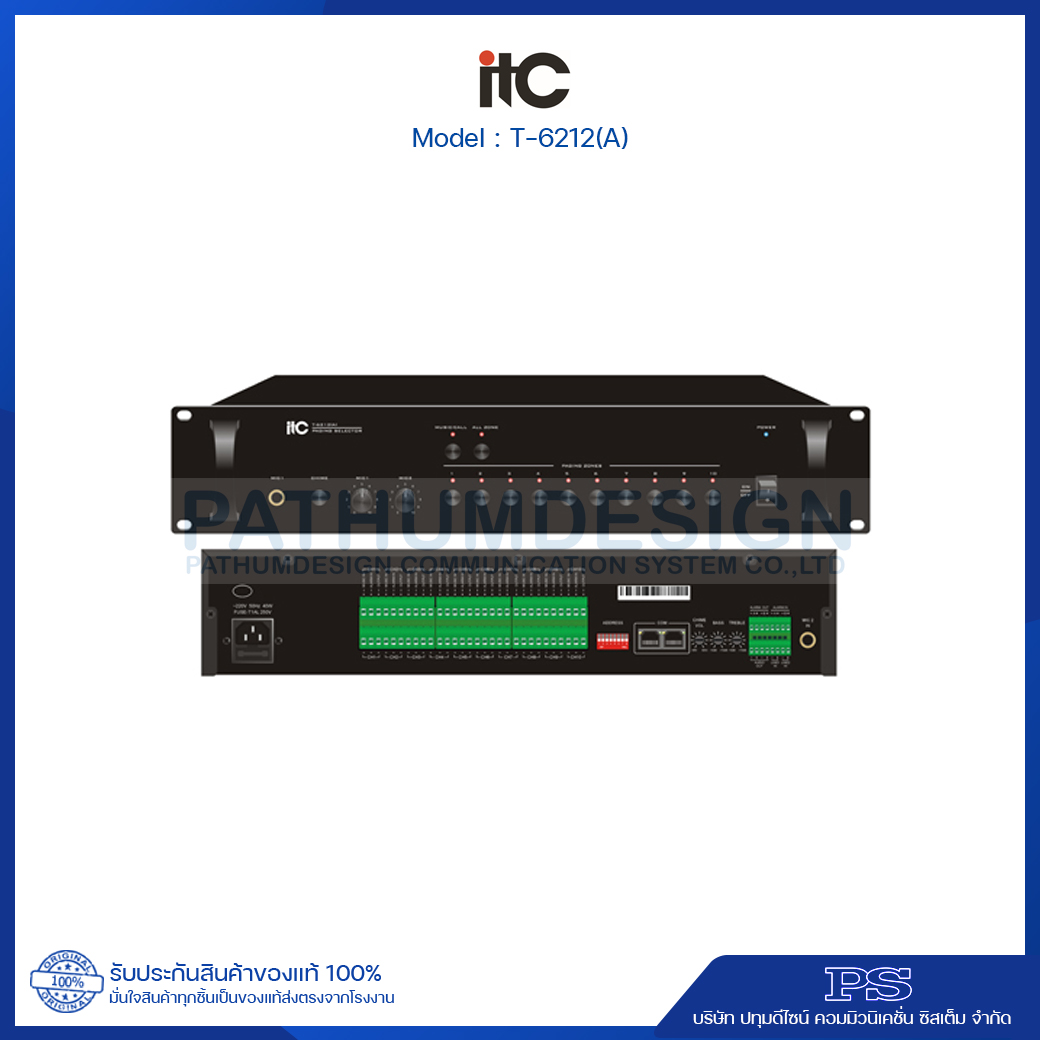

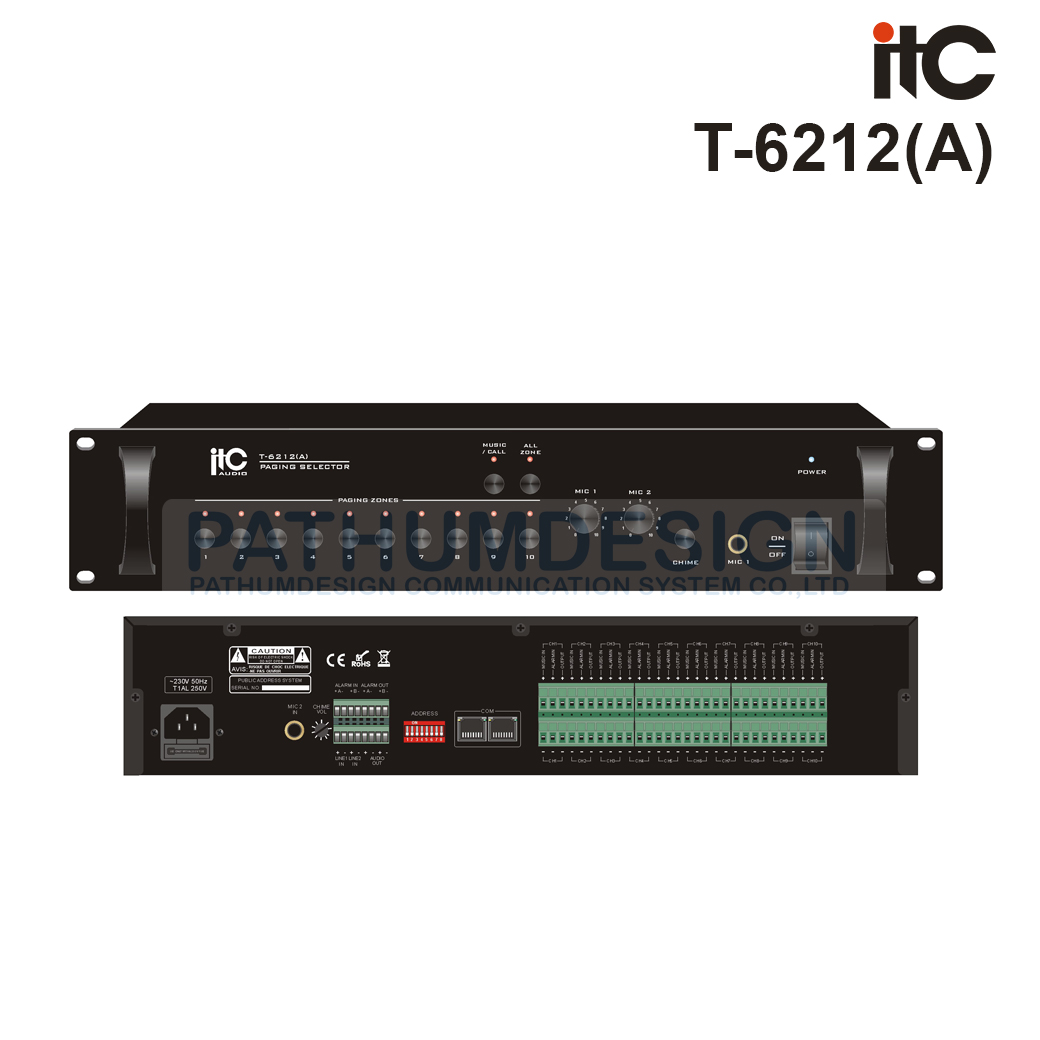

ITC T-6212(A) 10 Zone Paging Controller with Speaker Selector
FEATURE
- Built-in 10 zone selector and paging selector, which can be expanded to 300 zones
- Work together with remote paging console for paging and control over 10 zones.
- Individual zone, group zones, 10 zones and all zones paging through remote paging console.
- With memory function when power off, can realize the restoration after electricity be turn on
- 2 channels 10 zones amplifier inputs(A channel for BGM amplifier and B channel for EMC/paging amplifier), in this way, the other zone’s music system will not be interrupted when some zone is selected for paging.
- 2 flexible amplifier connections: either 20 amplifiers wiring(10 BGM amps and 10 EMC/paging amps, there must be one of BGM amp and EMC/paging amp as one channel) and each of the 10 amps severs as one zone or 2 amplifiers wiring(1 BGM amp and 1 EMC/paging amp) and one amplifier divides into 10 zones.
- Each zone power capacity is 500W, and the total ten zones’s capacity is 5000W
- 10 zone speaker output terminals
- All zone alarm in (A/B 2 channels) and all zone alarm output (A/B 2 channels)
- Two-color zones status indicators accurately indicate music, paging or alarm status
- Mic 1-2 inputs, line 1-2 inputs, audio output
- 3 levels of input priority from high to low: EMC input, Mic1, remote paging console (equivalent priority with built-in chime).
- Built-in chime, chime volume and trigger are provided
- Zone 1-10 selector, music/paging switch and all zone selector all are equipped with indicators.
- Volume control over Mic 1-2 are provided
- 2 RJ45 communication ports for paging console or cascade another paging controller
- Dipswitch as ID address to be distinguished by controller or paging console
SPECIFICATIONS
Model |
T-6212(A) |
T-218(A) |
Input |
MIC1,2:600Ω,5mV, unbalanced Line1,2:10KΩ,775mV, unbalanced |
MIC:600Ω, 10mV, unbalanced Line:10KΩ,775mV, unbalanced |
Output |
80dB |
Balanced |
Frequency Response |
MIC:100Hz~15KHz; Line: 30Hz~18KHz |
MIC: 100Hz~15KHz; Line: 30Hz~18KHz |
S/N Ratio |
MIC input: 60dB Line input: 80dB |
MIC input: 60dB Line input: 80dB |
Controls |
MIC1, 2 gain controls, 10 channel selectors, chime button, power switch |
Chime MIC VOL controls, 160 channel selectors, chime button, power switch |
Indicators |
Power LED, 10 paging channel LEDs |
Powter LED, 10 paging channel LEDs |
Protection |
AC fuse, 1A |
AC fuse, 0.5A |
Power Supply |
~110V/60Hz or~230V/50Hz or DC 24V |
DC 24V |
Power Consumption |
40W |
10W |
Weight |
4.6Kg |
1.25Kg |
Dimensions |
484x350x88mm |
245x200x75mm |
Communication Protocol |
RS422 |
RS422 |
Communication Input |
RJ45 |
RJ45 |
Communication Speed |
4800bps |
4800b |
Finish |
Panel: aluminum plate, black or golden (optional) Case: steel plate, black |
Panel: steel plate, black Case: steel plate, black Side board: plastic, black |
