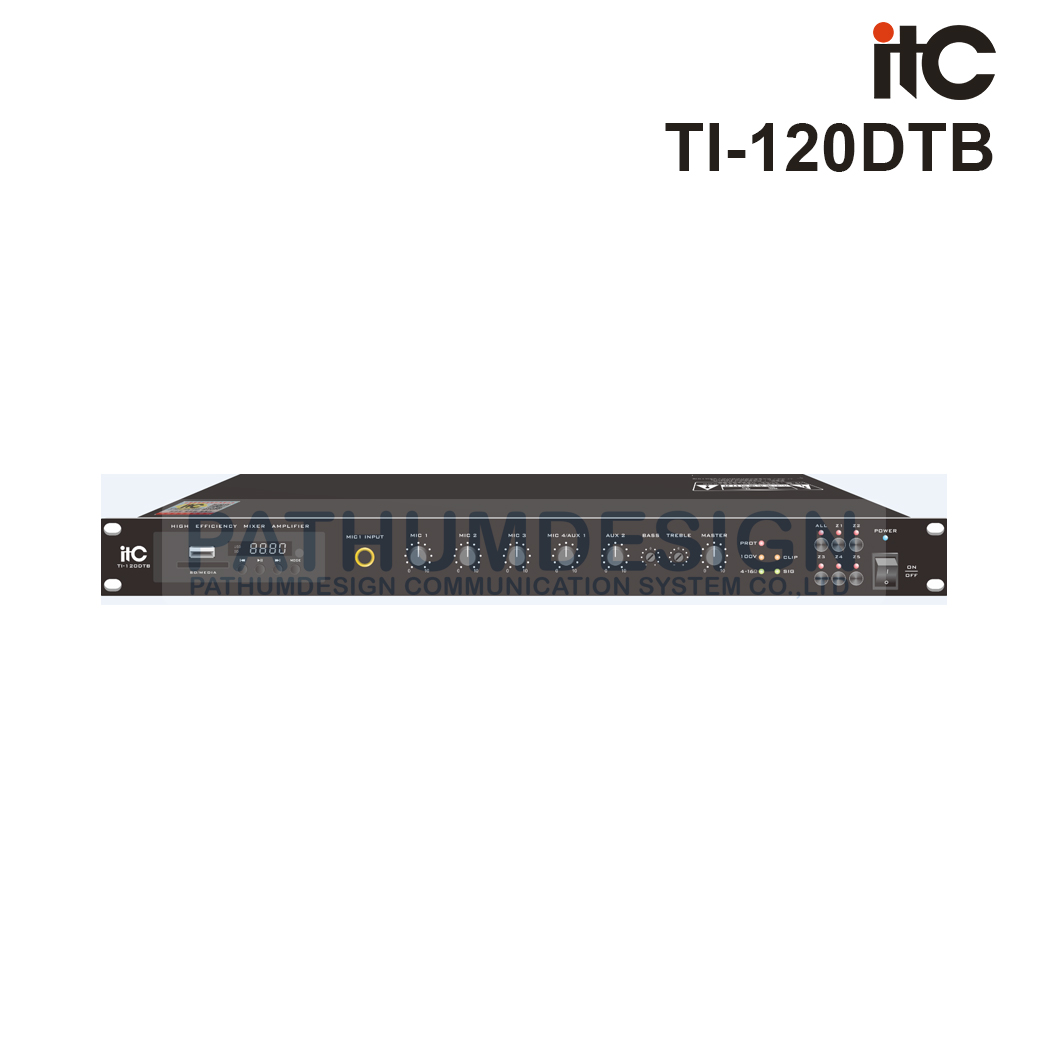

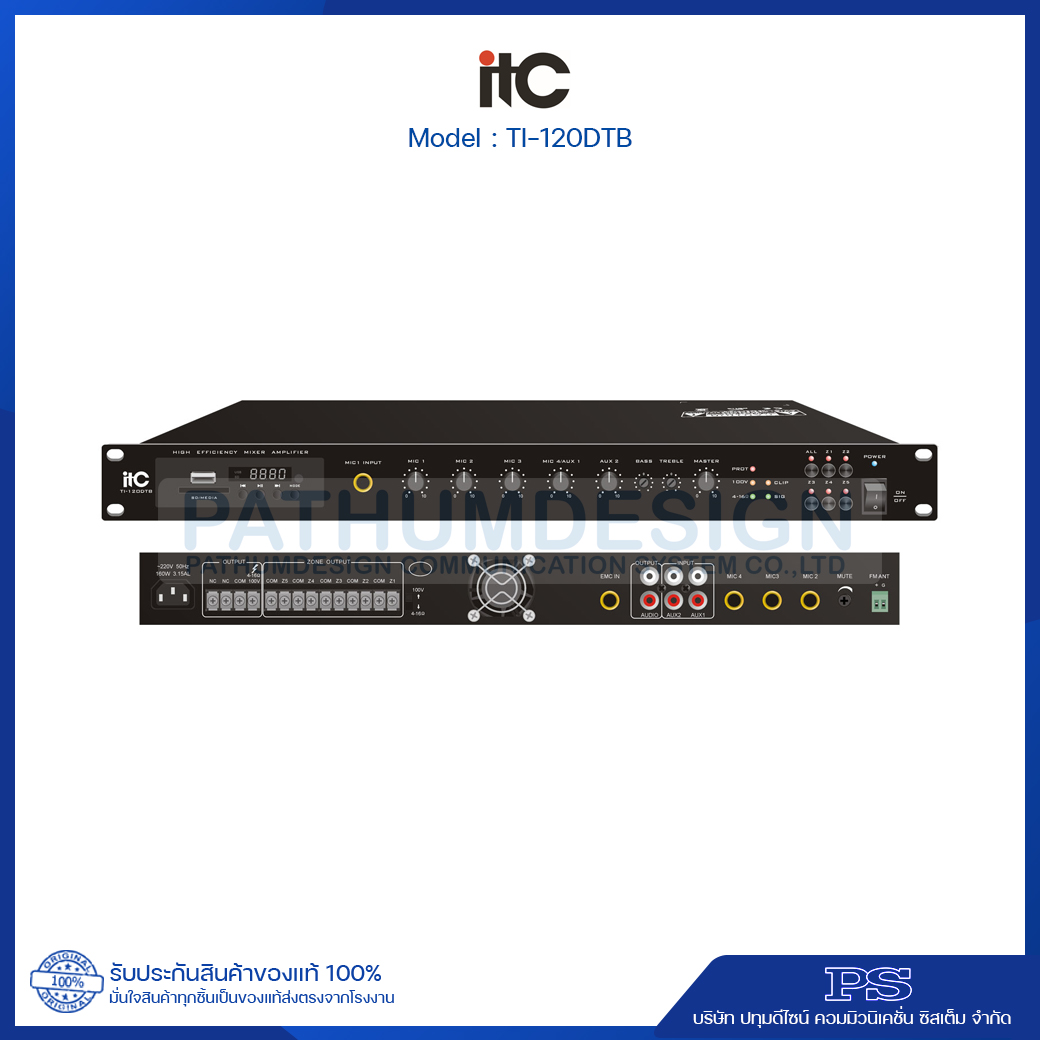

ITC TI-120DTB 5 Zone Class-D Mixer Amplifier, 120W. with MP3/Tuner/Bluetooth & USB
Description
Digital mixer amplifier with Mp3/TUNER/Bluetooth.Ideal for small & medium supermarkets, malls, and indoor places like cafe shop to play background musics.
Features
- Standard rack mounted design(1U) with delicate SMT technology.
- With Mp3/TUNER/Bluetooth, songs being played can be shown on the digital screen.
- With Mp3/TUNER/Bluetooth remote control function.
- 1 EMC input, 2 AUX inputs, 4 MIC inputs.
- Channel priority function EMC>MIC1>MIC2, MIC3, AUX1, AUX2.
- Each input has independent volume adjustment, and the total volume has high pitch, bass adjustment and volume control.
- With electrical level and overload protection indicator.
- The device has good self-protection such as short circuit, overload and overheat.
- 2 kinds of output modes: 100V constant voltage output; 4-16Ω constant resistance output.
- With 5 zones selection.
- EMC input can activate partitioning zones.
- Perfect combined design for high efficiency& energy saving switch power and class-D amplifier, with high stability.
- Voltage Power Supply: 180V-240V
- Optional standby power supply 24V without delay for toggling pictures
Specifications
|
Model |
TI-120DTB |
TI-240DTB |
TI-350DTB |
TI-500DTB |
||||
|
Output |
4-16Ω, 100V |
|||||||
|
Output Power |
120W |
240W |
350W |
500W |
||||
|
Input Sensitivity & Impedance |
MIC1, 2, 3, 4 Input:5mV/600Ω Unbalanced 6.3 connector |
|||||||
|
AUX1, 2 Input: 350mV/10KΩ Unbalanced RCA connector |
||||||||
|
EMC Input: 775mV/10KΩ Unbalanced 6.3 connector |
||||||||
|
Output Sensitivity & Soure Impedance |
MIX OUT:1000mV/470Ω Unbalanced RCA connector |
|||||||
|
|
||||||||
|
Tone |
Bass: ±10dB at 100Hz Treble: ±10dB at 10KHz |
|||||||
|
Frequency Response |
50~16KHz(+1dB,-3dB) |
|||||||
|
S/N Rate |
MIC1, 2, 3: 66dB; AUX1, 2: 80dB |
|||||||
|
THD |
Less than 0.5%(at 1KHz,1/3 Rated Power) |
|||||||
|
Mute Function |
EMC>MIC1>MIC2, MIC3, AUX1, AUX2 |
|||||||
|
Capacity |
5 Zones |
|||||||
|
Channel Crosstalk |
≥50dB |
|||||||
|
Attenuation |
|
|||||||
|
Heat Dissipation |
The fan starts work when powered on. Winds flank in and out |
|||||||
|
from the back, can lead to strong cooling effect. |
||||||||
|
with infinitely variable speed. |
||||||||
|
Protection |
Short circuit, overload and overheat |
|||||||
|
Power Supply |
~220-240V /50Hz |
|||||||
|
Power Consumption |
160W |
300W |
450W |
630W |
||||
|
Dimension |
484×260×44mm |
|||||||
|
Weight |
3.7Kg |
3.8Kg |
4.0Kg |
4.1Kg |
||||
