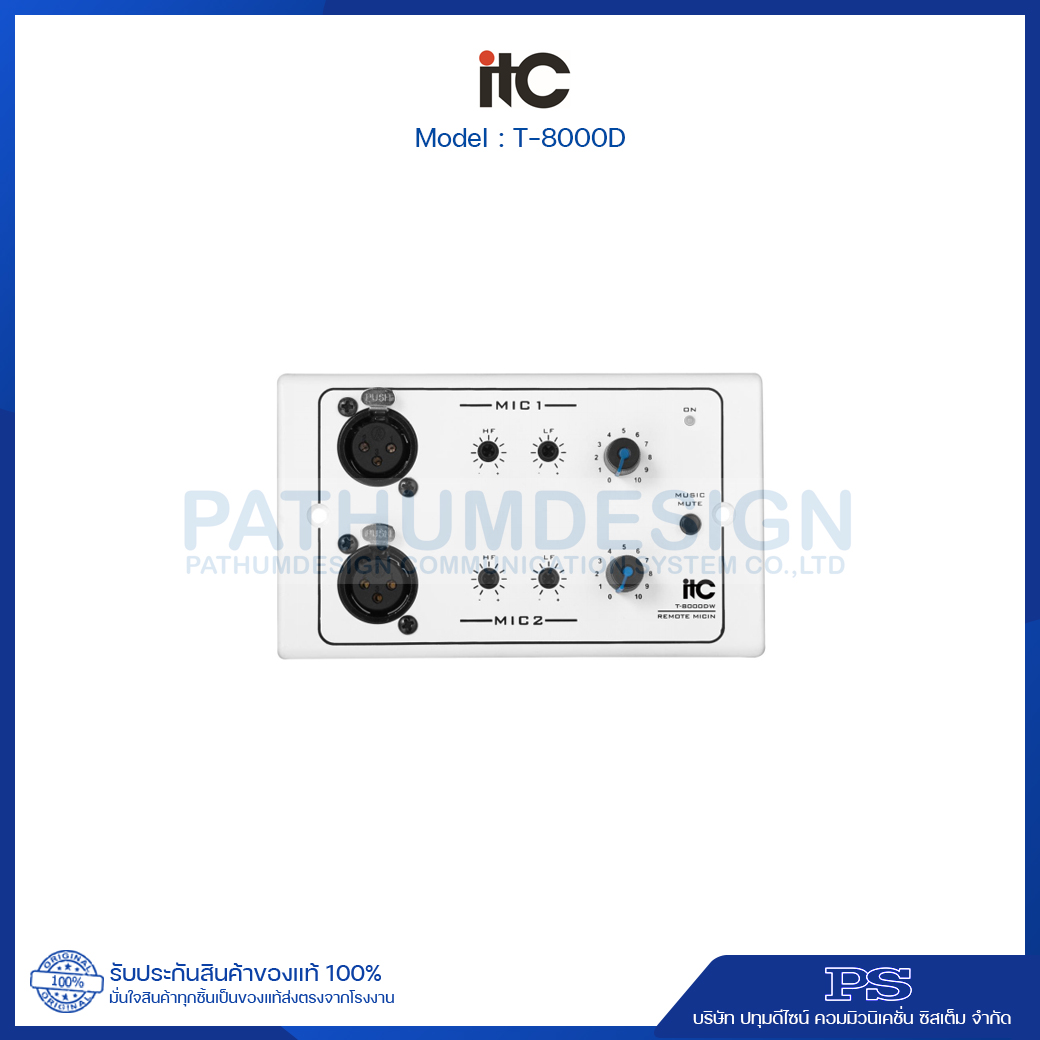

ITC T-8000D Remote MIC Input Module
Features
* The T-8000D remote microphone input module is connected with T-8000 through universal industrial standard CAT 5 where a remote location announcement is needed.
* Two different options: T-8000D of aluminum material in grey color and T-8000DW of ABS material in white color.
* Each controller provides eight RJ45 ports for the remote module.
* The CAT 5 wiring is not only featured of cost-effective, convenient layout, but also integration of RS 485 communication, audio transmission and DC 24V power supply together.
* The remote module family also has T-8000B and T-8000C.
* Two remote mic by XLR inputs with volume control and bass, treble tone controls.
* A paging priority override music button is provided when a remote paging is needed.
* DC 24V power supply from controller, low power consumption 5W.
* Extra DC 24V power supply is needed when communication distance is more than 50 meters.
* Analog to digital conversion working principle to adjust controller's volume.
* Metal mounting box is supplied.
Specification
| Model | T-8000D / T-8000DW |
| Serial Communication Speed | 4800bps |
| Communication Port | RJ45 |
| Communication Protocol | RS485 |
| Serial Communication Distance | Maximums 1Km |
| MIC Input Sensitivity | 5mV/600Ω |
| Audio output | 0dB/600Ω |
| Frequency Response | 50Hz~18KHz (±1dB) |
| S/N Ratio | MIC Better than 65dB |
| THD | Less than 0.1% at 1KHz |
| Controls | Volume control |
| Power Supply | DC 24V |
| Power Consumption | 5W |
| Weight | 150g |
| Dimensions | 146x48x86mm |
