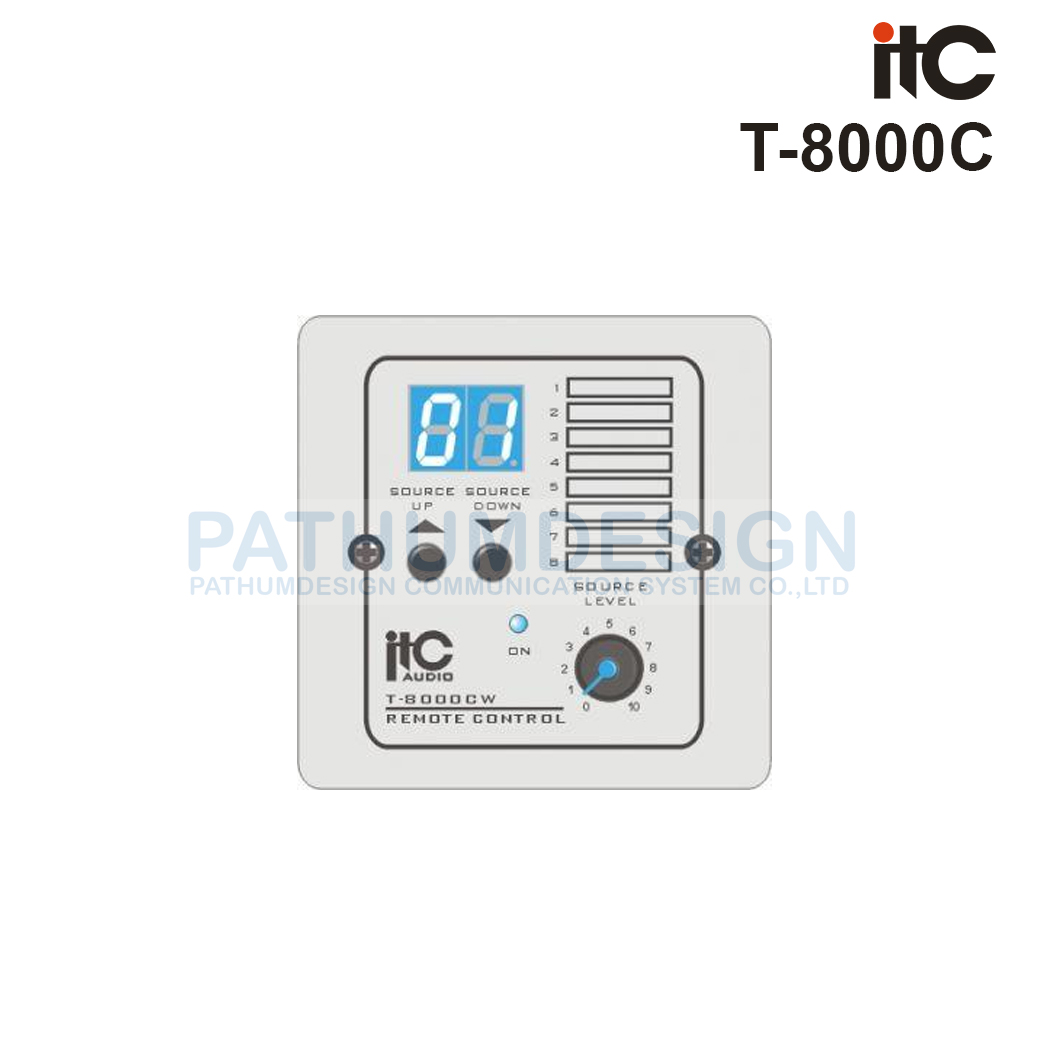

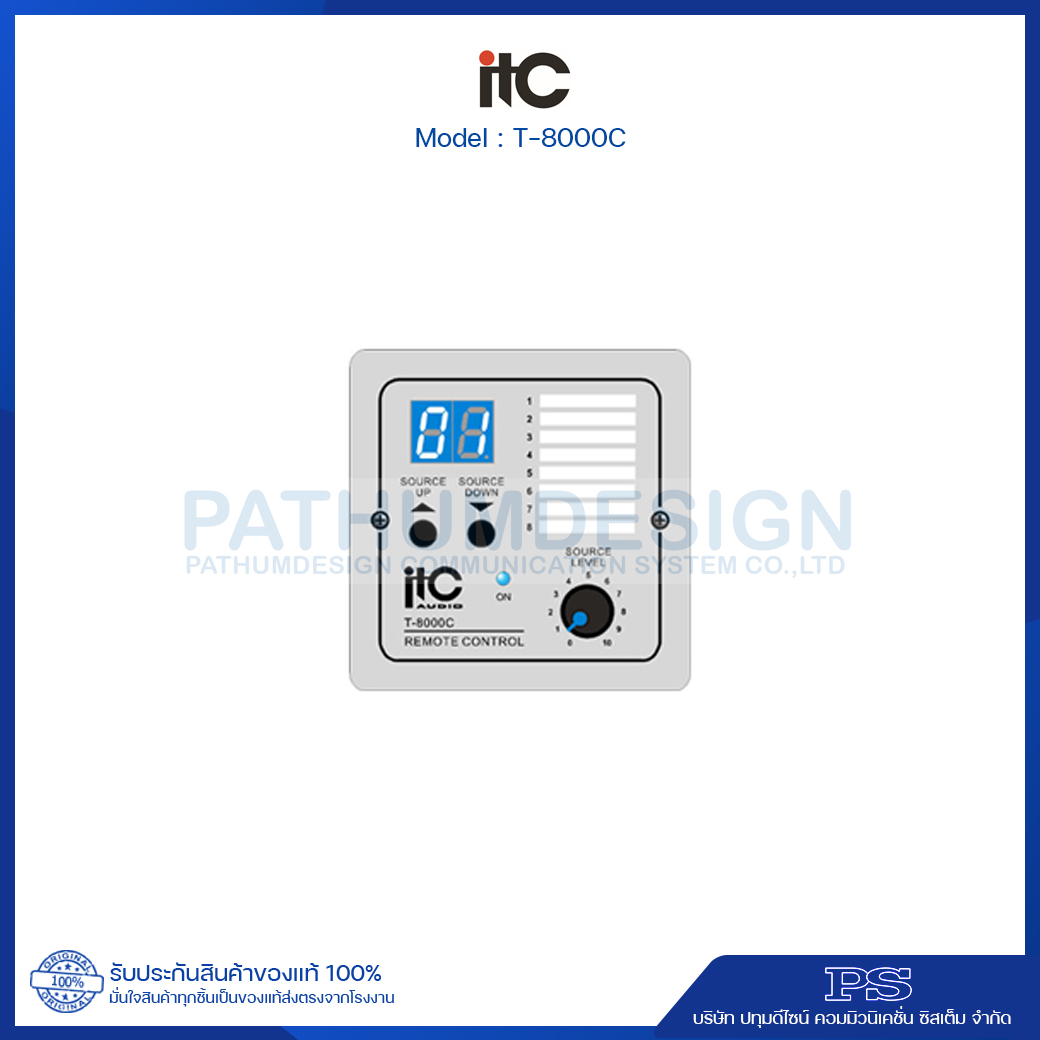

ITC T-8000C Remote Control Module
Features
* The T-8000C remote control module is connected with T-8000 through universal industrial standard CAT 5 for each eight zone's volume adjustment at a remote and different location from the control center.
* Two different options: T-8000C of aluminum material in grey color and T-8000CW of ABS material in white color.
* Each controller provides eight RJ45 ports for the remote control module.
* The CAT 5 wiring is not only featured of cost-effective, convenient layout, but also integration of RS 485 communication, audio transmission and DC 24V power supply together.
* The remote control module family also has higher functional module of T- 8000B and microphone module of T-8000D.
* Zone LED indicator with up/down buttons.
* Volume control is provided for overall output level control.
* DC 24V power supply from controller, low power consumption 5W.
* Extra DC 24V power supply is needed when communication distance is more than 50 meters.
* Analog to digital conversion working principle to adjust controller's volume.
* Metal mounting box is supplied.
Specification
| Model | T-8000C / T-8000CW |
| Serial Communication Speed | 4800bps |
| Serial Communication Distance | Maximum 1Km |
| Communication Port | RJ45 |
| Communication Protocol | RS485 |
| Controls | Volume control |
| Power Supply | DC 24V |
| Power Consumption | 5W |
| Weight | 300g |
| Dimensions | 86x48x86mm |
