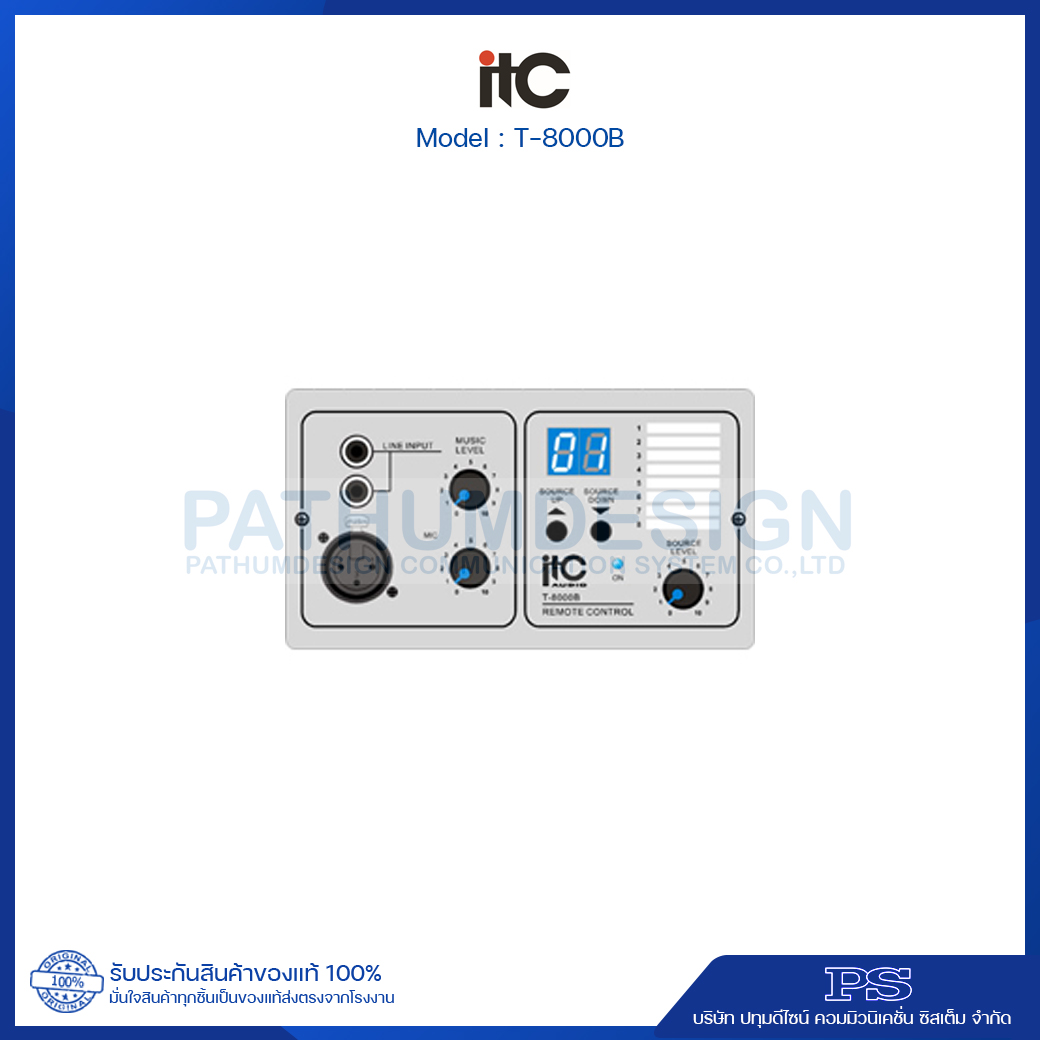

ITC T-8000B Remote Control with Audio Input Module
Features
* The T-8000B remote control with audio input module is connected with T-8000 through universal industrial standard CAT 5 for each eight zone's volume adjustment or remote line and microphone input at a remote and different location from the control center.

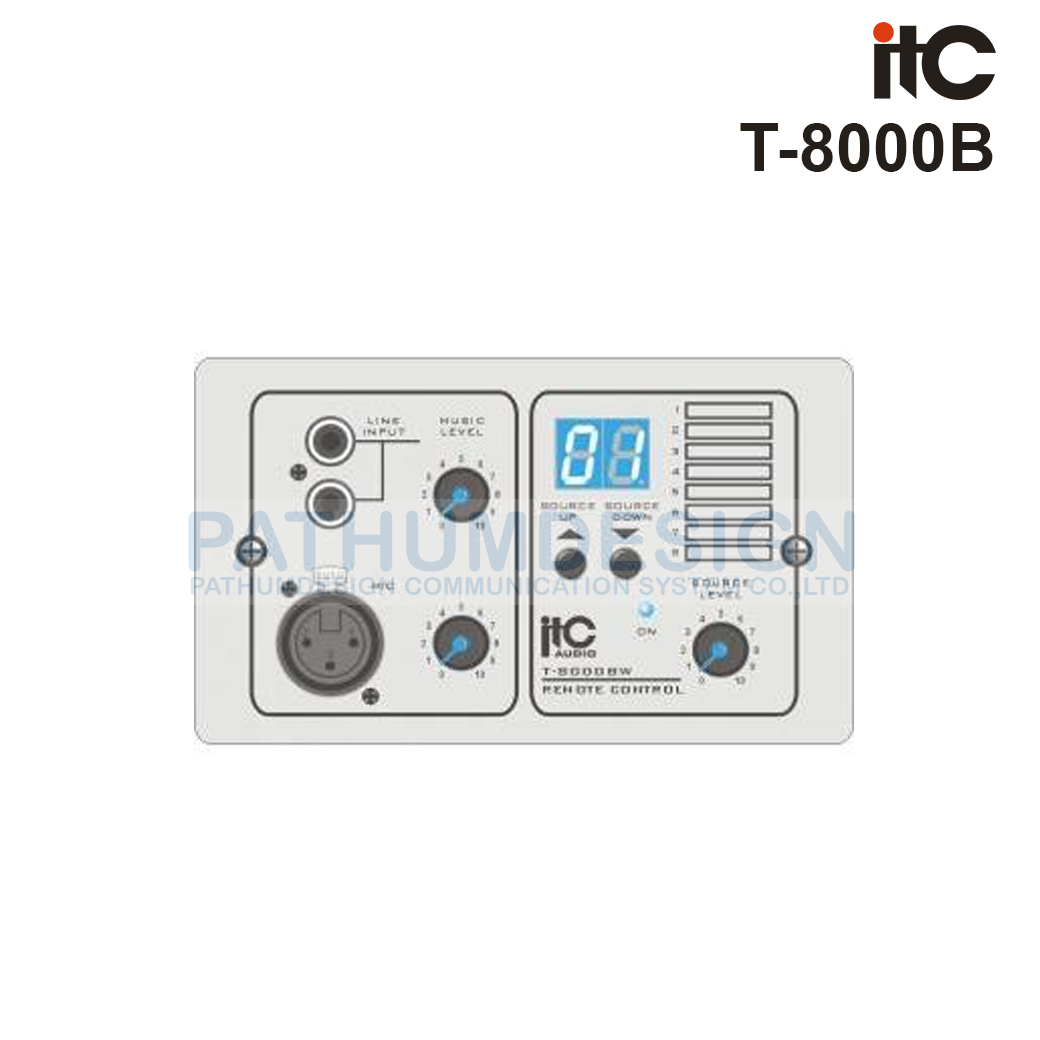

* Two different options: T-8000B of aluminum material in grey color and T-8000BW of ABS material in white color.
* Each controller provides eight RJ45 ports for the remote control with audio input module.
* The CAT 5 wiring is not only featured of cost-effective, convenient layout, but also integration of RS 485 communication, audio transmission and DC 24V power supply together.
* This module family also has simpler functional module of T-8000C and T-8000D.
* Remote line by dual RCA and mic by XLR inputs with gain controls.
* Zone LED indicator with up/down buttons.
* Volume control is provided for overall output level control.
* DC 24V power supply from controller, low power consumption 5W.
* Extra DC 24V power supply is needed when communication distance is more than 50 meters.
* Analog to digital conversion working principle to adjust controller's volume.
* Metal mounting box is supplied.
Specification
Model | T-8000B / T-8000BW |
Serial Communication Speed | 4800bps |
Communication Port | RJ45 |
Communication Protoco | RS485 |
Serial Communication Distance | Maximums 1Km |
MIC Input Sensitivity | 5mV/600Ω Phantom Power: +12V |
AUX Input Sensitivity | 350mV/10KΩ |
Audio Output | 0dB/600Ω |
Frequency Response | 50Hz~18KHz (±1dB) |
S/N Ratio | MIC Better than 65dB Aux Better than 75dB |
THD | Less than 0.1% at 1KHz |
Controls | Volume control |
Power Supply | DC 24V |
Power Consumption | 5W |
Weight | 500g |
Dimensions | 146x48x86mm |
