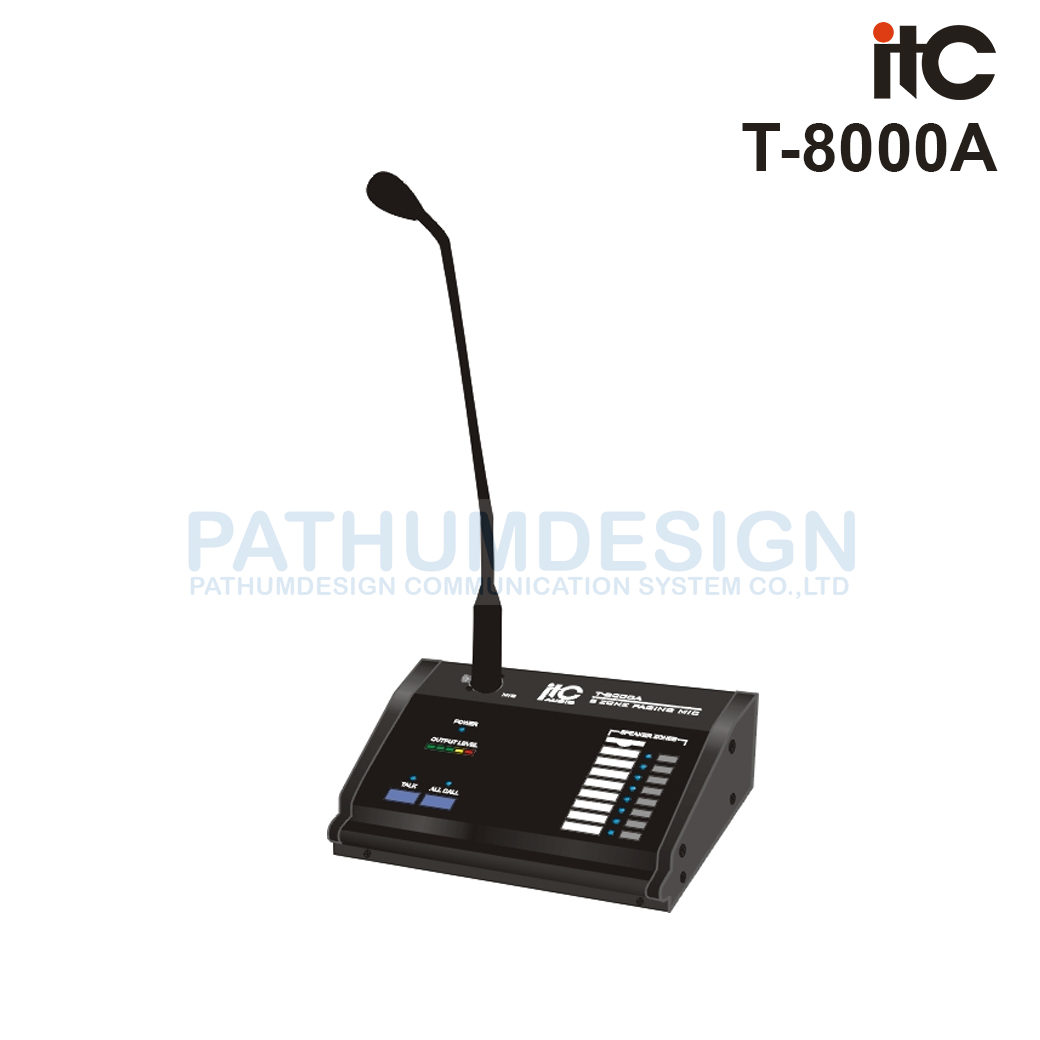

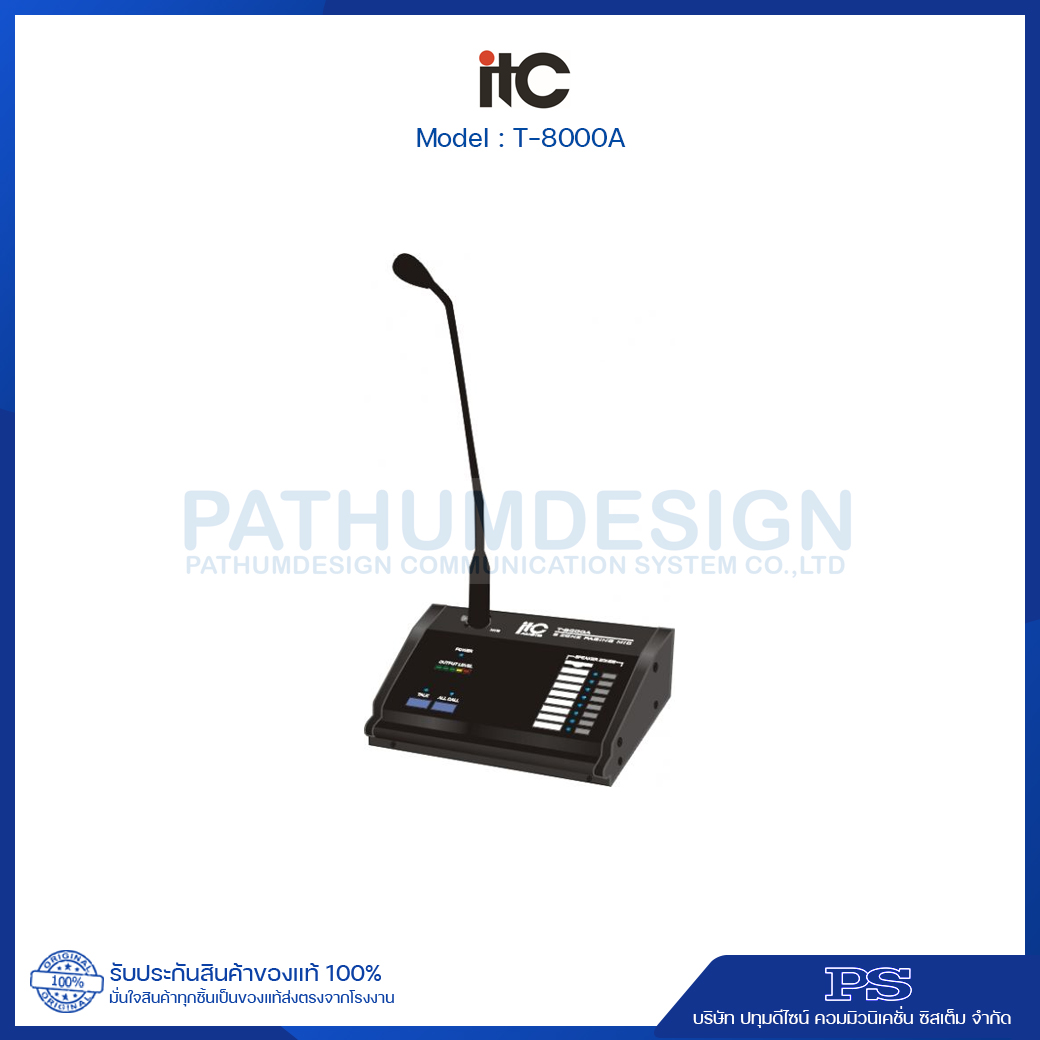

ITC T-8000A Remote Paging Console / Extension Control Keypad
Features
* The T-8000A remote paging console is connected with T-8000 through universal industrial standard CAT 5 for zone announcement or communication at a remote and different location from the control center.
* Each controller provides four RJ45 ports for the remote paging console.
* The CAT 5 wiring is not only featured of cost-effective, convenient layout, but alsointegration of RS 485 communication and audio transmission together.
* Extra DC 24V power supply
* Eight zone selector with state indication.
* Talk and all zone paging swift keys are provided.
* 2 and 4 tones chimes with selector and off switch.
* Volume controls are provided for chime and microphone.
* Full indications includes individual zone, all zone, busy, paging, power, output level to provide a direct visualization.
Specifications
| Model | T-8000A/T-8000AE |
| MIC | Condenser Microphone |
| Frequency Response | 50Hz~18KHz (±2dB) |
| S/N Ratio | Better than 75dB |
| THD | Less than 0.1% at 1KHz, |
| Signal Output | 0.775V/600Ω |
| Mic Input | 5mV/600Ω |
| Indication | Individual zone, all zone, busy, paging, power, output level indicators |
| Protection | DC+24V/2A, Revert fuse protection |
| Power Supply | DC 24V |
| Power Consumption | 5W |
| Weight | 2.5Kg |
| Dimensions | 180x143x52mm |
