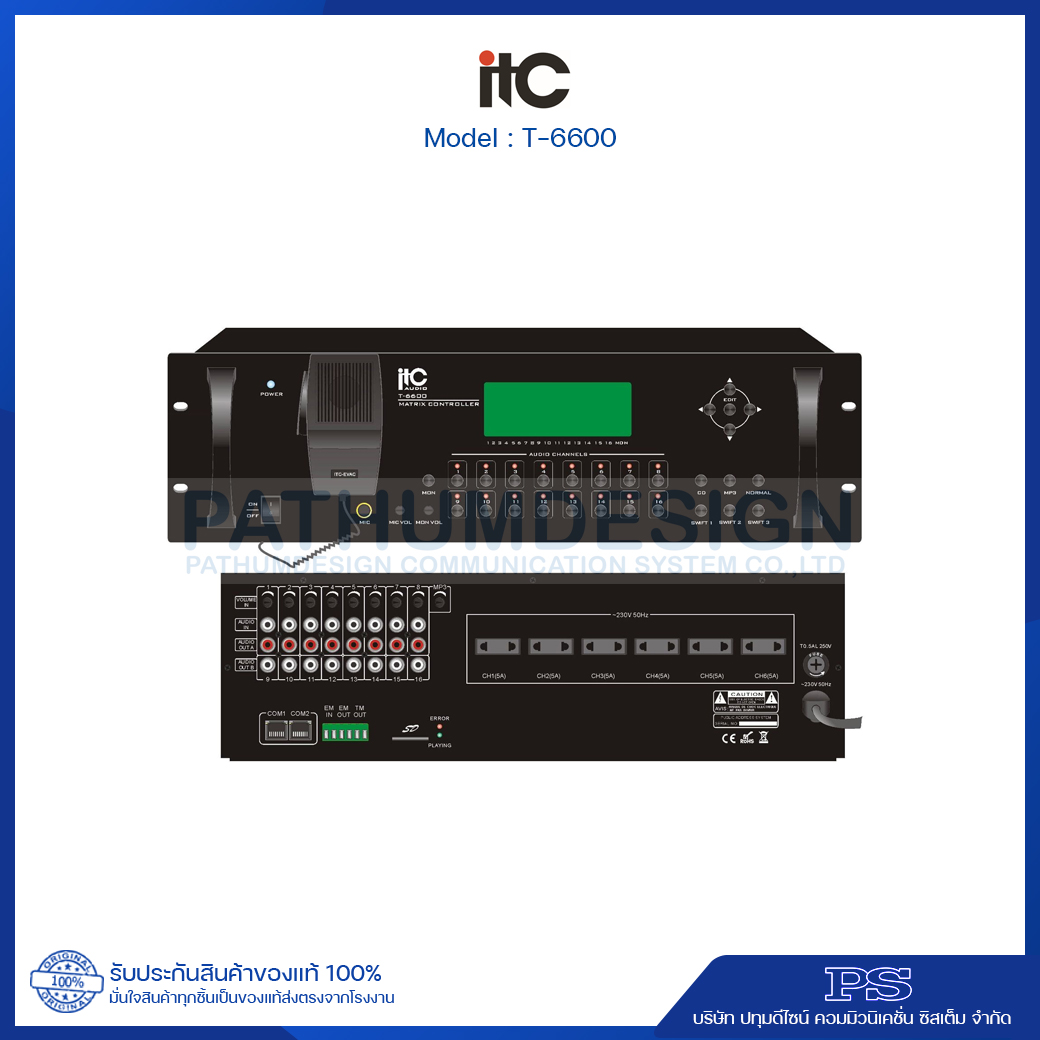

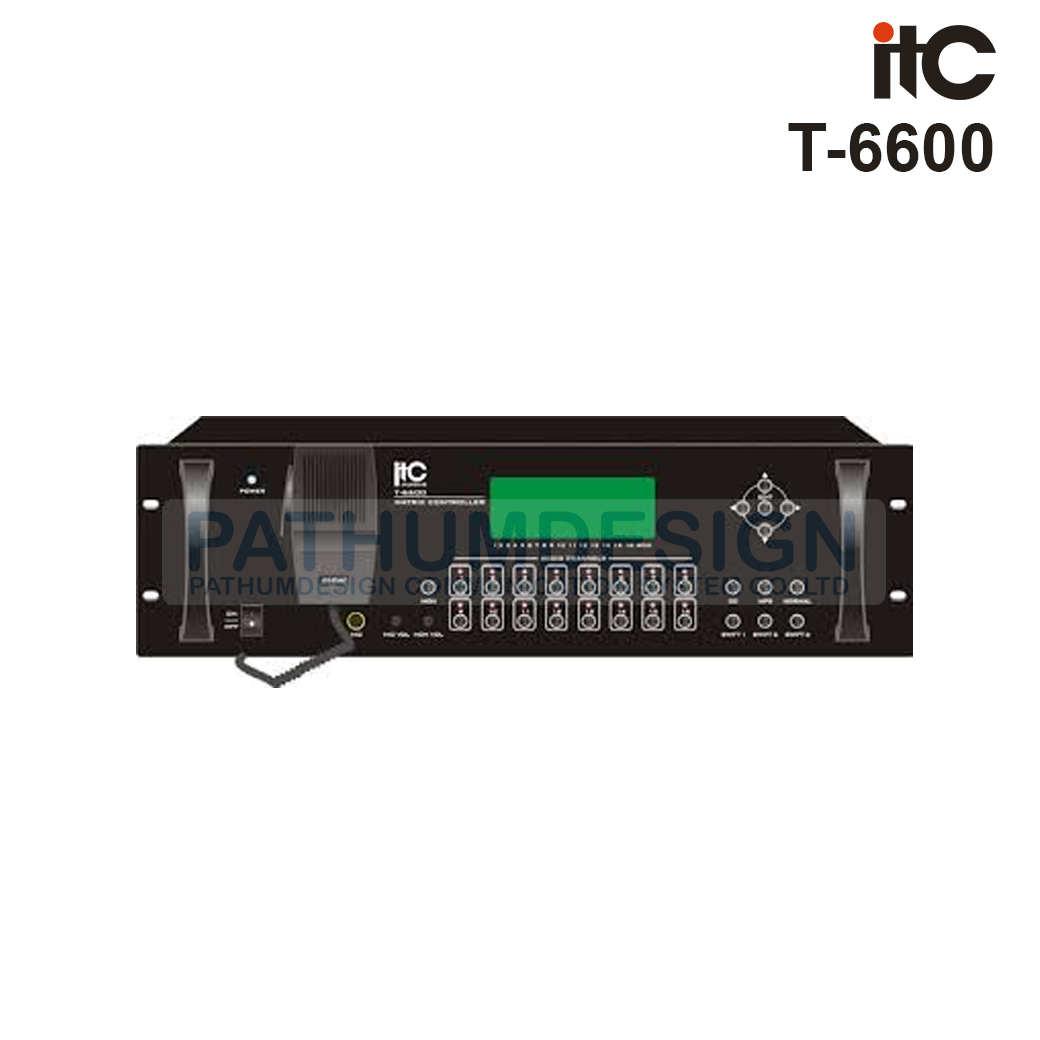

ITC T-6600 Weekly Timer with 8x16 Audio Matrix and Mp3
Features
* Background music + 16 zone paging + voice message alarm
* Built-in 8 inputs 16 outputs audio matrix
* Built-in weekly scheduled timer
* Built-in 16 zone speaker selector for remote paging console
* Built-in 6 channel power sequencer
* Built-in MP3 player of 2GB memory card through SD card slot
* Built-in monitor
* With telephone paging, fire alarm and remote paging console interface
* With regular program and spared program
* With Mic emergency announcement and CD/MP3 manual priority broadcast With memory
function after power off
* Each day program operation up to 200 steps
Matrix Background Music System
* 4 extra program sources plus built-in MP3 matrix distributed into 16 zones 8 inputs and 16
outputs
* Manual CD/MP3 priority broadcast at particular circumstance
* The music will not be interrupted when paging console is make zone paging CD, AM/FM
tuner, MP3 player as program audio sources
* Playing modes: random, single circle, repeat and all circle
* Music system will be monitored by operator in control room
Remote Zone Paging System
* T-6600 built-in 16 zone speaker selector
* With T-218 to achieve individual, group, each ten, all zone paging
* T-218 paging with priority over music except EMC (fire alarm input) and Mic 1 (T-6600 front
panel)
* T-218 remote paging distance within 1 kms through Cat 5 cable and RJ45 communication
port
* T-6600 can work with several T-218 at the same time
* There is no interference other zones music when zone paging is made Manual zone select
paging system on T-6600 front panel
Voice Message Alarm System
* Work with T-6203 to achieve all zone voice alarm system
* Fire alarm system with priority except Mic 1
* Work with T-6223(A) to achieve all zone, group zone, neighboring zone multi voice alarm
System
Expansion Functions
* Each zone power output no limit even higher than 5000W
* Telephone paging interface, extra power sequencer, extra monitor panel could be added
Specification
| Model | T-6600 |
| Input | 8 channels, AUDIO IN: 10K ohms, 0.775V unbalanced,MIC: 600 , 10mV unbalanced |
| Output | 16 channels, 1K , 0~1.5V unbalanced |
| Frequency Response | 30Hz~18KHz |
| THD | Less than 0.1% |
| Communication Port | 4800bps, RJ45 connector, RS422/RS485 protocol |
| MP3 Frequency Response | 20Hz~20KHz/ 1dB |
| MP3 S/N Ratio | 95dB |
| MP3 Storage | External Compact Flash Card; File Format: FAT12, FAT16, FAT32 |
| Monitor | Built-in loudspeaker, 0.5W |
| Cycle Time | 24 hrs |
| Alarm Signal | Input: 0V(Short Circuit) Industrial Standard; Output: 0V(Short Circuit) Industrial Standard |
| Timer Power Output | 6 Channels, 110~120VAC or 230~240VAC 50/60Hz; Total Capacity: 5KW; Max Per Socket: 1KW |
| Controls | Power switch, 8 AUDIO IN, MIC and MONITOR volume controls Program edit, 16 AUDIO channels, MONITOR, CD,MP3, NORMAL, and 3 SWIFT pushbuttons |
| Indicators | Power LED, LCD display, channel status and operational status LEDs |
| Power Supply | ~110V/60Hz or ~230V/50Hz |
| Power Consumption | 30W |
| Weight | 7.5Kg |
| Dimensions (WxDxH) | 484x304x132mm |
| Finish | Panel: aluminum plate, Case: steel plate |
