Features
* Standard 19 inch rack design, black alumina panel, solid handle, professional mechanical assembly process, the appearance is very high-end.
* Industrial-grade LCD display in 3.4-inch , which can clearly display most dot matrix patterns and machine working status; equipped with infrared remote control, it use to any content in the program library of the on-demand server, available to control the play/ pause, flexible and simple operation.
* With embedded computer and DSP audio processing technology.
* Built-in 1-channel network hardware audio decoding module, support TCP / IP, UDP, to achieve network transmission 16-bit CD audio quality audio signal.
* Built-in high-fidelity professional digital amplifier, with 60W/120W/240W/350W/500W/650W constant voltage 100V power output.
* 1-channel (AUX) and 1 microphone (MIC) input interface, with independent volume and treble/bass adjustment potentiometer control, support without internet local paging function.
* 1-channel EMC input interface, input emergency alarm voice signal is direct connection (Without switching), with the highest priority.
* 2-channel audio signal auxiliary output interface, it can expandable by connect external power amplifier, the standard lotus seat interface, wiring connection is very convenient.
* 1-channel of three-wire volume control forced cut output interface, without forced cut power supply.
* Built-in intelligent power management, when there is no music or call, it will automatically cut off the power of amplifier, when there is signal, it will automatically turn on the power of amplifier, support IP software programming pre-open power amplifier function.
* Built-in 3-level priority settings
* EMC is the highest priority.
* The network alarm signal have higher priority over MIC, AUX and network background music signals.
* MIC has higher priority over AUX and network background music signals.
* AUX and network background music at the same priority level.
* Support silence intensity preset decrease function, support background accompaniment preset function; support status light display, including level indicator, protection indicator, standby light and so on.
* Compatible with routers, switches, bridge gateway, Modem, Internet, 2G, 3G, 4G, and any other network structure.
* Digitalized products, easy expansion, not limited by geographical location, no need to increase the engine room management equipment, adopt the design concept of common network free line construction, easy to installation.
* Support remote hardware upgrade of the terminal, no need to upgrade at the local site, to reduce maintenance burdens and make more simple operation.
* With USB playback function, access USB. You can remotely play any song and play the previous, next, pause, stop and other functions (or select panel keys for operation).
* One short-circuit input can be used to trigger preset voice prompts (or alarms), and can also be used to control access control linkage input short-circuit signals.
* It comes with a 100V constant voltage power backup input interface, which can flexibly form a highly reliable public ringing system with one master multiple slaves, multiple masters one slave, and multiple masters multiple slaves.
* The built-in high-performance main/slave switching detection module can switch to the backup power input within 0.3 seconds when the network is disconnected or the machine fails, which meets the requirements of a highly reliable public ringing system.
Specifications

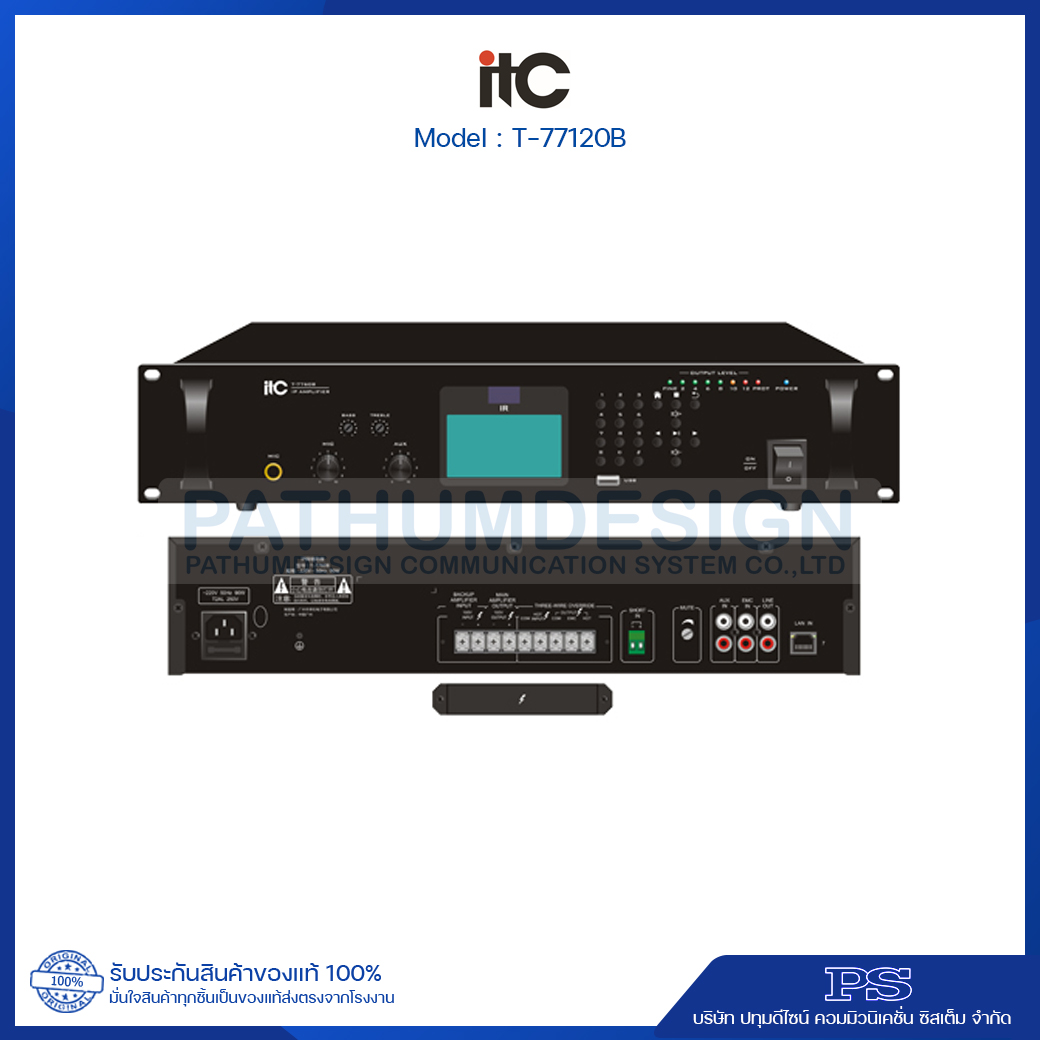

Model | T-77120B | T-77240B | T-77350B | T-77500B |
Network Interface | standard RJ45 input | |||
Transmission Rate | 100Mbps | |||
Protocol Support | TCP/IP,UDP | |||
Audio Format | MP3 | |||
Audio Mode | 16 bits CD sound quality | |||
Sampling Rate | 8KHz~48KHz | |||
EMC Input Sensitivity | 775mV (Unbalance) | |||
AUX Input Sensitivity | 350mV (Unbalance) | |||
MIC Input Sensitivity | 5mV (Unbalance) | |||
AUX Output Amplitude |
1000mV 2 lotus flower output interface | |||
AUX Output Impedance |
470Ω | |||
Treble Adjustment Range |
±10dB | |||
Bass Adjustment Range |
±10dB | |||
USB Interface |
Maximum support 16G memory USB access | |||
Rated Power |
120W |
240W | 350W | 500W |
Power Consumption |
180W |
370W | 540W | 750W |
Standby Power Consumption |
<10W |
|||
Frequency Response | 80Hz~16KHz +1/-3dB | |||
Harmonic Distortion | ≤1% | |||
SNR | >65dB | |||
Output Method |
100V constant voltage output |
|||
Short Circuit Input |
Dry contact input |
|||
Circuit Protection | DC output, overload, over temperature, short circuit protection | |||
Working Temperature | 5℃~40℃ | |||
Working Environment Humidity | 20%~80% relative humidity, no condensation | |||
Input | ~220V 50Hz | |||
Size | 484 x 359 x 132mm | |||
Weight | 6.9kg |
