Features
* Full aluminum alloy shell and durable structure, small and delicate appearance.
* Adopt embedded computer and DSP signal processing technology, built-in high-speed industrial processing chip , to ensure the start-up time is less than 1 second.
* Built-in 1 channel audio encoding module of network hardware, support TCP/IP, UDP protocol, to realize network signal transmission with 16 bit CD sound quality.
* Built in 2 groups of RCA input terminals, with input volume adjustment, flexible matching with various devices with different sensitivity and support input audio voltage limit function.
* Support 5 zones to trigger on or off the collection function independently. The panel is equipped with 5 zone trigger buttons and indicator lights
* Support timing or temporary signal collection and broadcast task; the task priority levels can be set through the server.
* Support 3 collection and broadcasting modes:" ordinary collection and broadcast ", "medium collection and broadcast " and "Hi-fi collection and broadcast ". " ordinary collection and broadcast " can access the effect of ultra-low delay network audio acquisition, "medium collection and broadcast" can access the effect of low latency and ordinary sound quality of network audio acquisition, "Hi-fi collection and broadcast" can access the effect of ultra- low distortion of the network audio acquisition.
* Compatible with all network structures, such as router, switch, Bridge, Modem, Internet, 2G, 3G, 4G etc.
* It supports remote hardware upgrade of the terminal, no need to upgrade at the local site, to reduce maintenance burdens and make more simple operation.
* Support audio trigger collection task; AUX input can automatically trigger the collection task through the collection configuration of the server.
Specifications
|
Model |

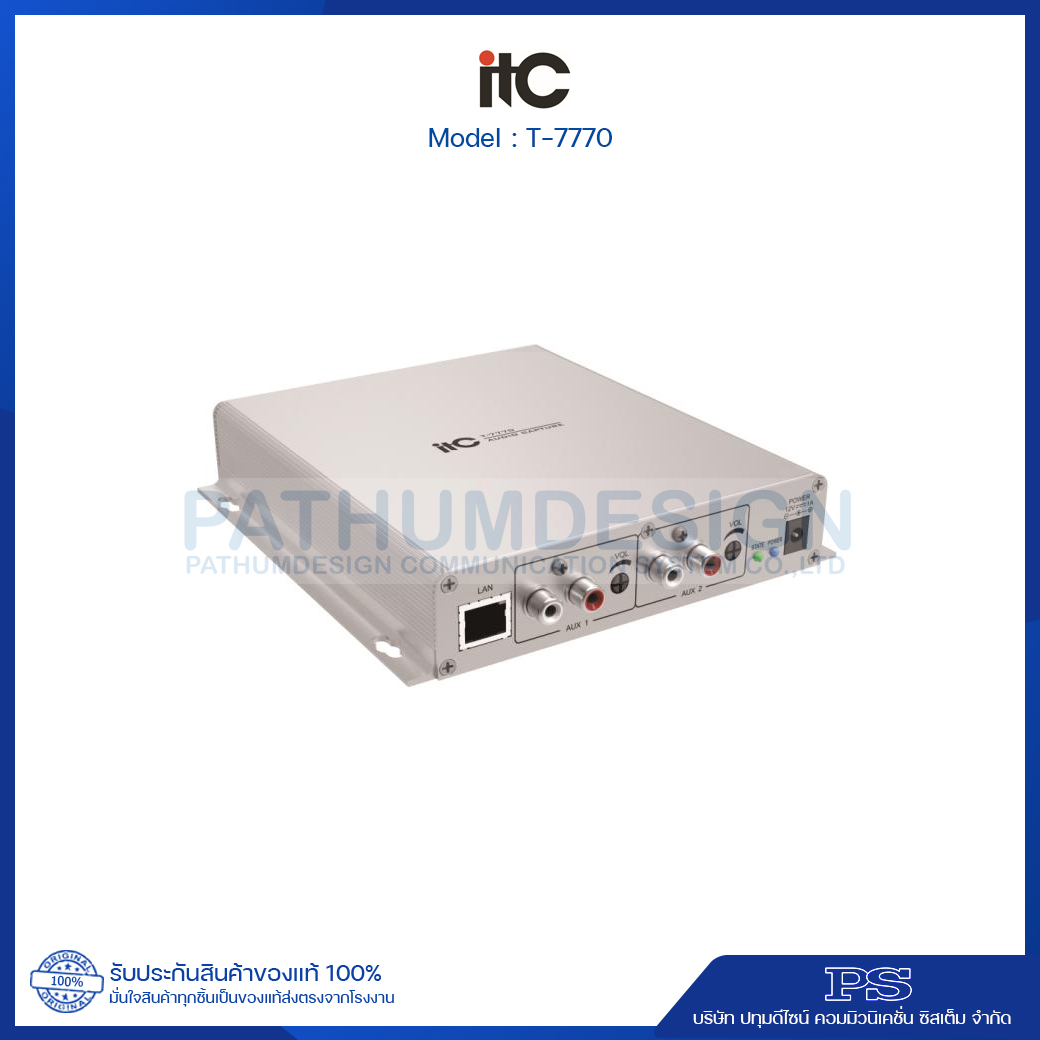

T-7770 |
|
Network Interface |
Standard RJ45 |
|
Support Protocol |
TCP / IP, UDP |
|
Audio Format |
MP3, PCM |
|
Sampling Rate |
8kHz~48KHz |
|
Transmission Rate |
100Mbps |
|
Audio Mode |
ADPCM PCM |
|
Input Frequency |
80Hz~16KHz +1/-3dB |
|
AUX Input Sensitivity |
350mV Standard lotus seat input interface (unbalanced) |
|
AUX Sound Pressure Trigger Threshold |
≥10MV |
|
THD |
≤0.3% |
|
SNR |
≥68dB |
|
Operating Temperature |
5℃~40℃ |
|
Operating Humidity |
20%~80% relative humidity, non-condensing |
|
Power Consumption |
≤10W |
|
Power Input |
DC12V/1A |
|
Dimension |
165x 156 x 33mm |
|
Weight |
0.5Kg |
