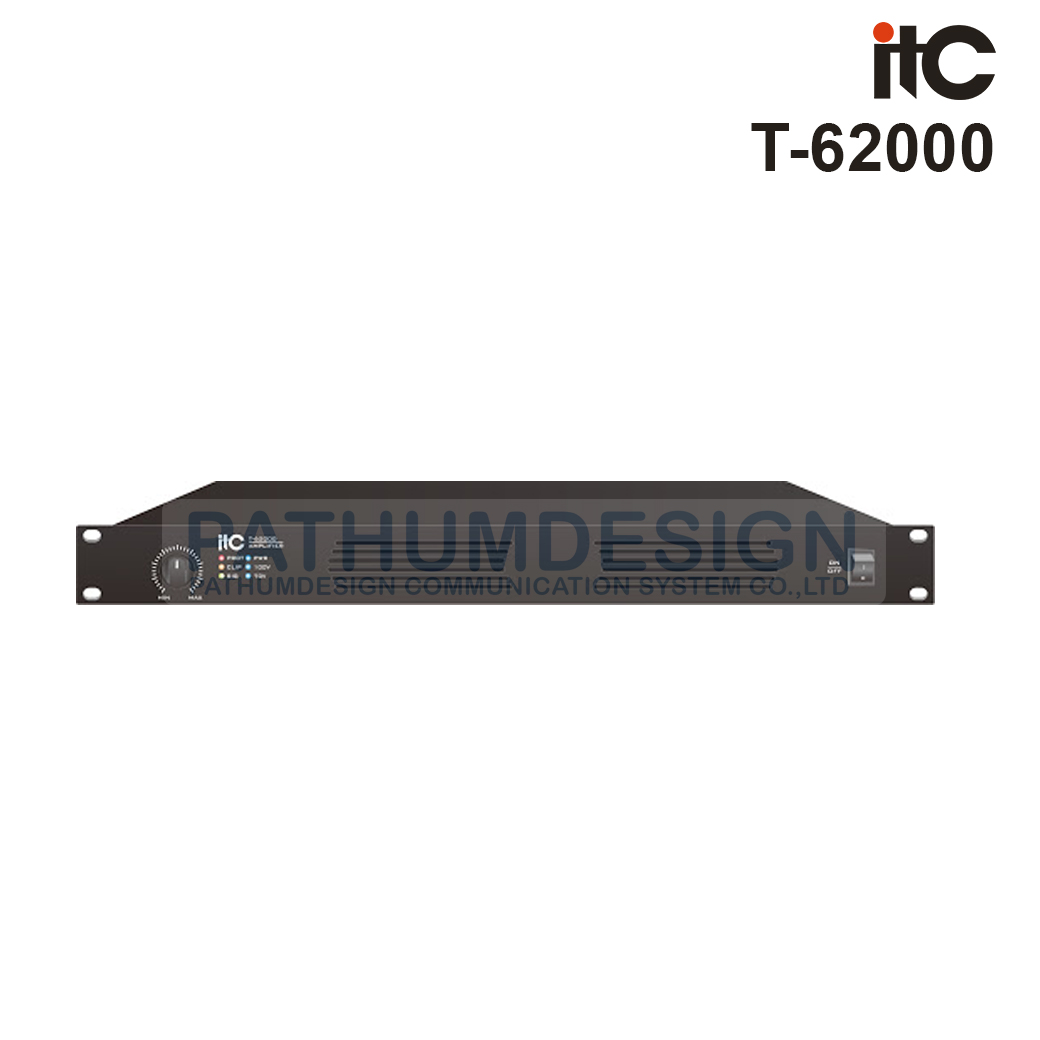

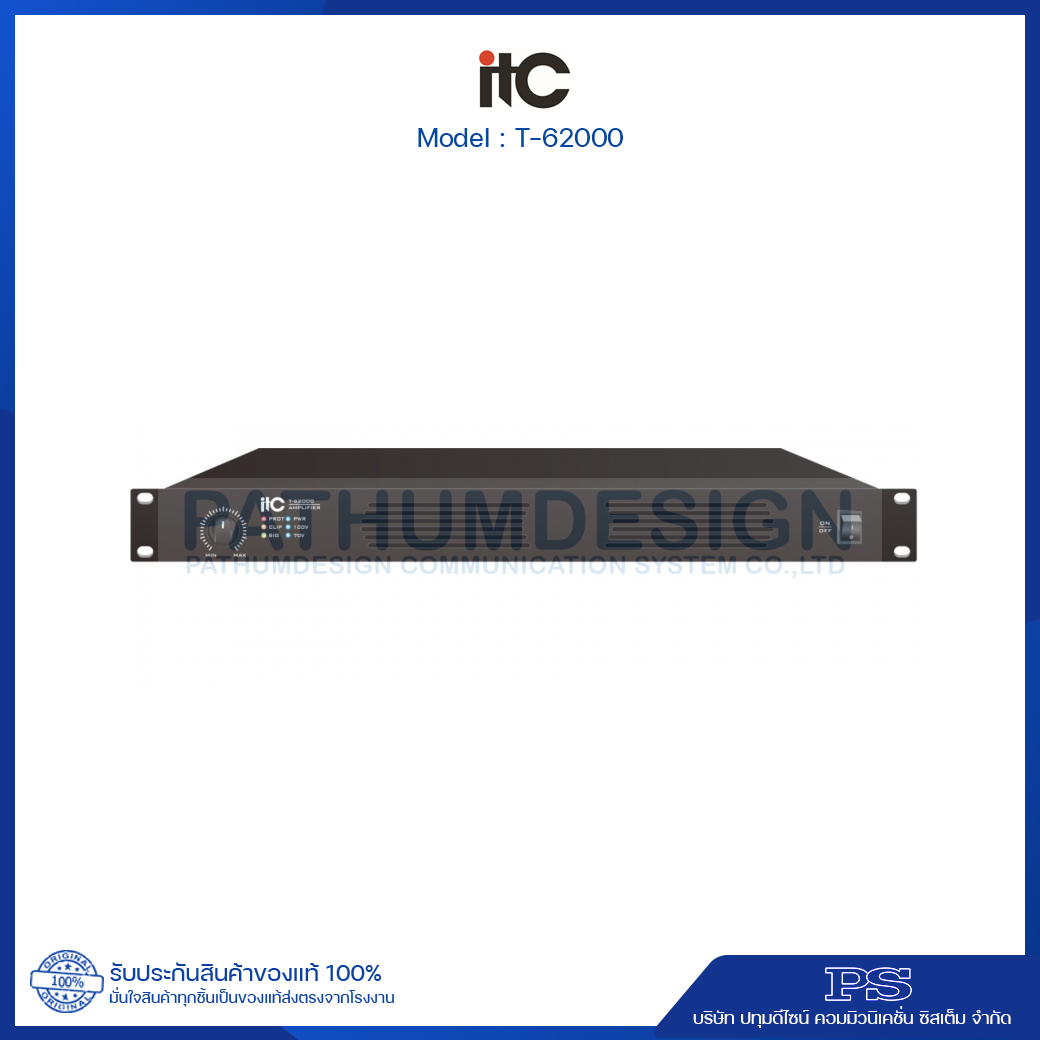

ITC T-62000 Power Amplifier เครื่องขยายเสียง
Description
Broadcast power amplifier is a high performance switching power supply, single channel, high power, pure post level broadcast amplifier. Its structure is compact and reasonable. Smart protection circuitry provides advanced technology to protect internal circuitry and connected loads，and amplifiers and speakers can be protected under extreme conditions. It provides regional power amplification for broadcast system, suitable for large area of broadcast sound reinforcement, including large and medium schools, buildings, clubs, bars, parks and so on.
Specifications
Model T-62000
Rated Power Output 2000W
Speaker Outputs 70V, 100V
output Sensitivity & Source Impedance 775mV/470Ω, Balanced XLR interface
Frequency Response 80Hz~16KHz(+1dB, -3dB )
Noise-signal Ratio >90dB
Total Harmonic Distortion 1kHz 0.5%, 1/3 output power
Ground Line Suspension Switch Signal ground line optional chassis or suspension
Heat Radiation Forced air cooling from front to back, start the built-in fan when radiator temperature is up to 45 degrees
Protection Over heat, over load & short circuit
Power Supply ~220-240V 50/60Hz
Power consumption 2500W
Dimension 484x260x44mm
Weight 5.3Kg
Material Quality Black aluminum panel, SPCC cold rolled plate material case
