Feature
- Desktop design, beautiful appearance, light weight and easy to carry.
- Support adaptation to different sound effect venue ranges: This series has 3 models, 120W, 60W and 40W, which can be selected according to the required range.
- The output terminal is selectable and can be connected to a fixed resistance 4~16 ohm output or a 100V output, supporting both short-distance music playback and long-distance broadcasting.
- The latest high-reliability switching power supply and digital power amplifier core technology.
- 1-channel XLR microphone audio input with 48V power supply and independent volume adjustment control.
- 2 line audio inputs, each with independent volume adjustment.
- LCD screen display, with automatic playback of MP3 audio format songs and power-off memory function.
- With priority function, when there is microphone 1 input, other input audio signals can be muted.
- Built-in power, signal, distortion, protection and other indicator lights.
- Support power amplifier short circuit, overload, over-temperature and other protection functions.
- With MP3 player and remote control function, it supports playing MP2, MP3, WMA, APE, FLAC, AAC, MP4, M4A, WAV, AIF, AIFC and other file formats from U disk and TF card.
- Support FM radio and Bluetooth reception functions, and can be connected to computers, mobile phones and other devices.
Specification
|

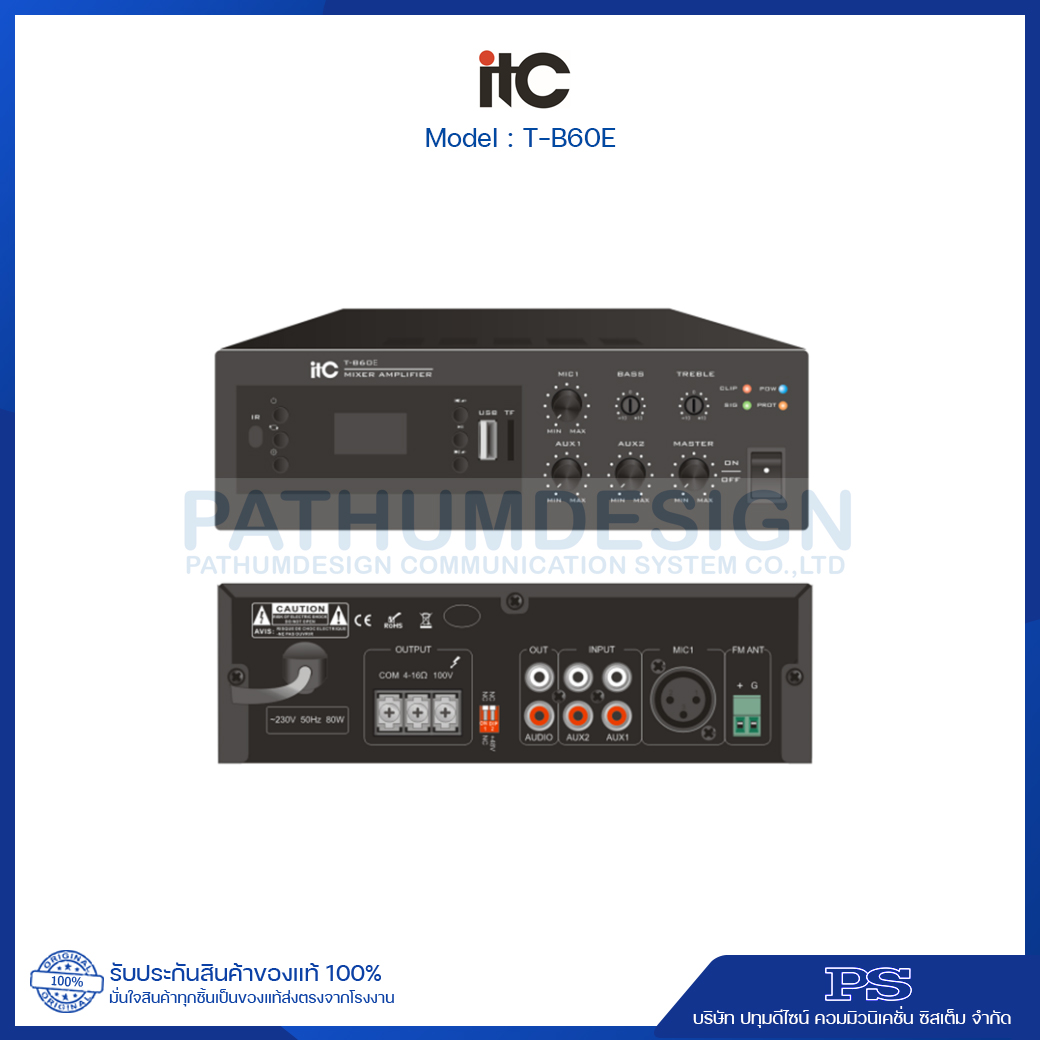

Model |
T-B60E |
||
|
Rated output power |
60W |
||
|
Speaker output |
4～16Ω/100V |
||
|
Input sensitivity & source impedance
|
MIC input: +5mV, balanced XLR connection terminal |
||
|
AUX1-2 input: 350mV, unbalanced RCA connection terminals |
|||
|
Tone |
Bass: 100Hz±10dB, Treble: 10KHz±10dB |
||
|
Frequency response |
80～16KHz(-3dB) |
||
|
SNR |
≥75dB |
||
|
THD |
Rated power output, distortion ≤1% |
||
|
Priority function |
Support, MIC1 input has priority over other inputs |
||
|
Protection |
Overheating protection, short circuit protection, overload protection |
||
|
Input power |
~220V 50Hz |
||
|
Power consumption |
120W |
||
|
weight |
2.3Kg |
||
|
Size |
215×208×65mm |
||
|
