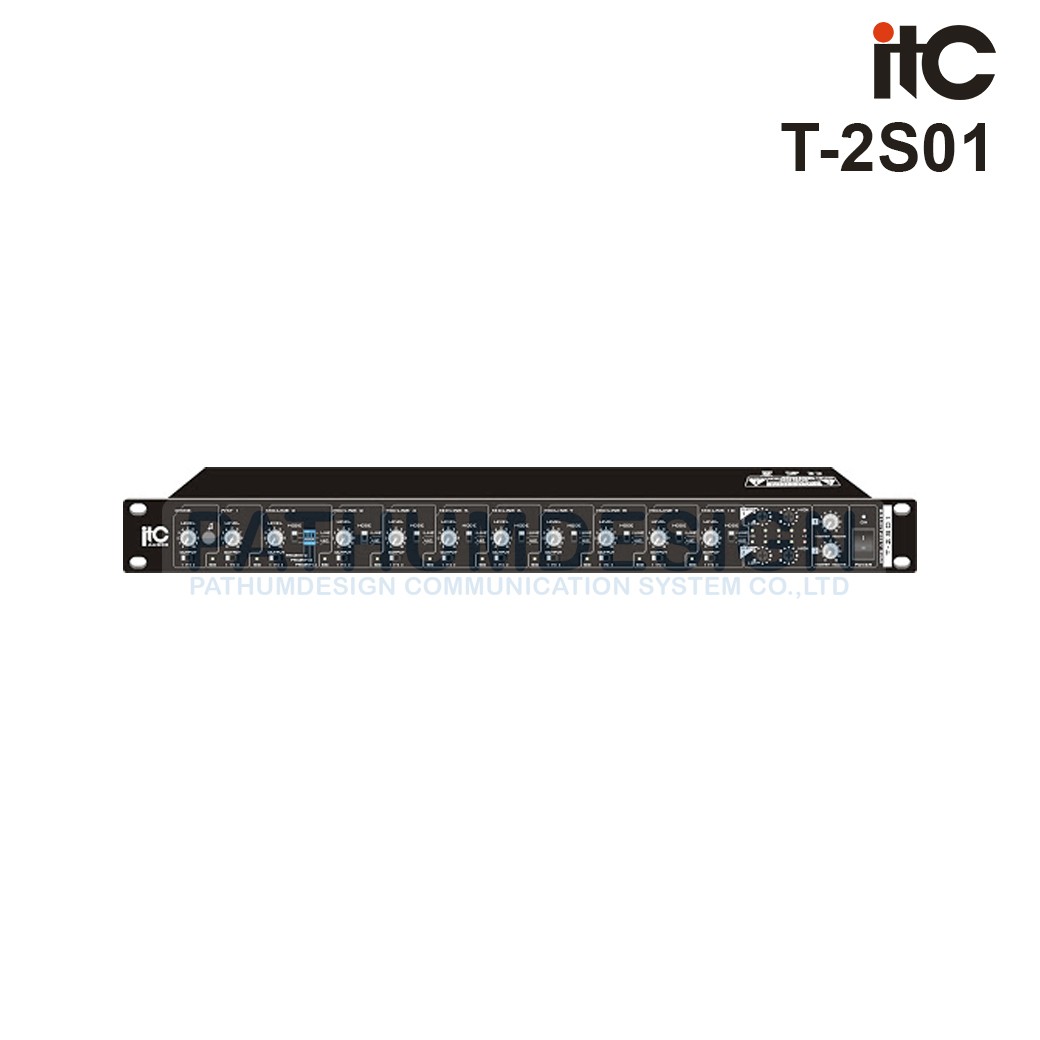

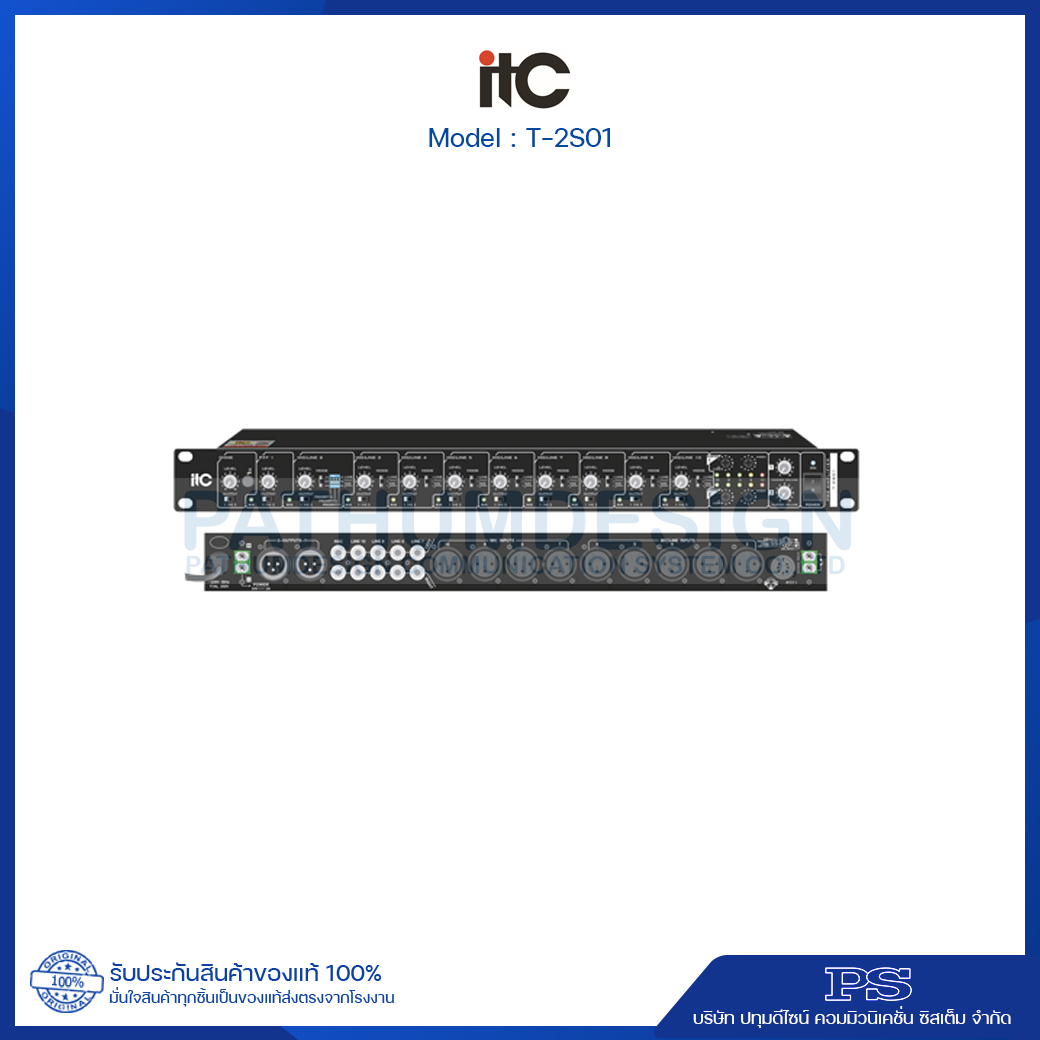

ITC T-2S01 Mixer Amplifier เครื่องขยายเสียง
Descriptions
* 2 channel mixer of 10 inputs
* Remote paging console T-319 as mic 1 with highest input priority
* Mic 2-4 with VOX selector over inputs 5-10 and phantom power
* All the 10 inputs with mic, line and high pass filtering selector
* Inputs 7-10 either by XLR mic inputs or by dual RCA line inputs
* Dual channel XLR line outputs
* All inputs include inputs1-10, MIC (remote paging console T-319), chime could be selected to have channel1, channel 2 and channel 1+2 outputs.
* Built-in 2/4 tone pre-set chime, remote chime trigger and local trigger on front panel
* Volume controls are provided over chime, MIC1, inputs 2-10, channel 1 and channel 2 masters. Bass and treble tone control are provided for both channel 1 and channel 2.
* Indicators for input 1-10, power and 2 channel level meters
* AC 110 or 230V and DC 24V operation
Specification
Model | T-2S01 |
Input Sensitivity/Impedance | |
MIC/ Line | ±2.45mV/5KΩ balanced, ±245mV/5KΩ balanced |
Line RCA In | 500mV/5KΩ unbalanced |
Output Level/Impedance | |
Master 1, 2 | +4dBu/200Ω balance |
REC | 0dBu/10KΩ unbalanced |
Frequency Response | |
Less Than | -1dB(20Hz~20KHz) |
S/N Ratio | |
MIC | More than 60dB |
Line | More than 75dB |
THD | |
MIC | Less than 0.05% |
Line | More than 0.03% |
Cross-talk | |
MIC | More than 60dB |
Line | More than 75dB |
Power Consumption Power | 13W |
Power Supply | ~110V/60Hz or ~230V/50Hz & DC 24V |
Dimensions | 484x295x44mm |
Weight | 3.9Kg |
