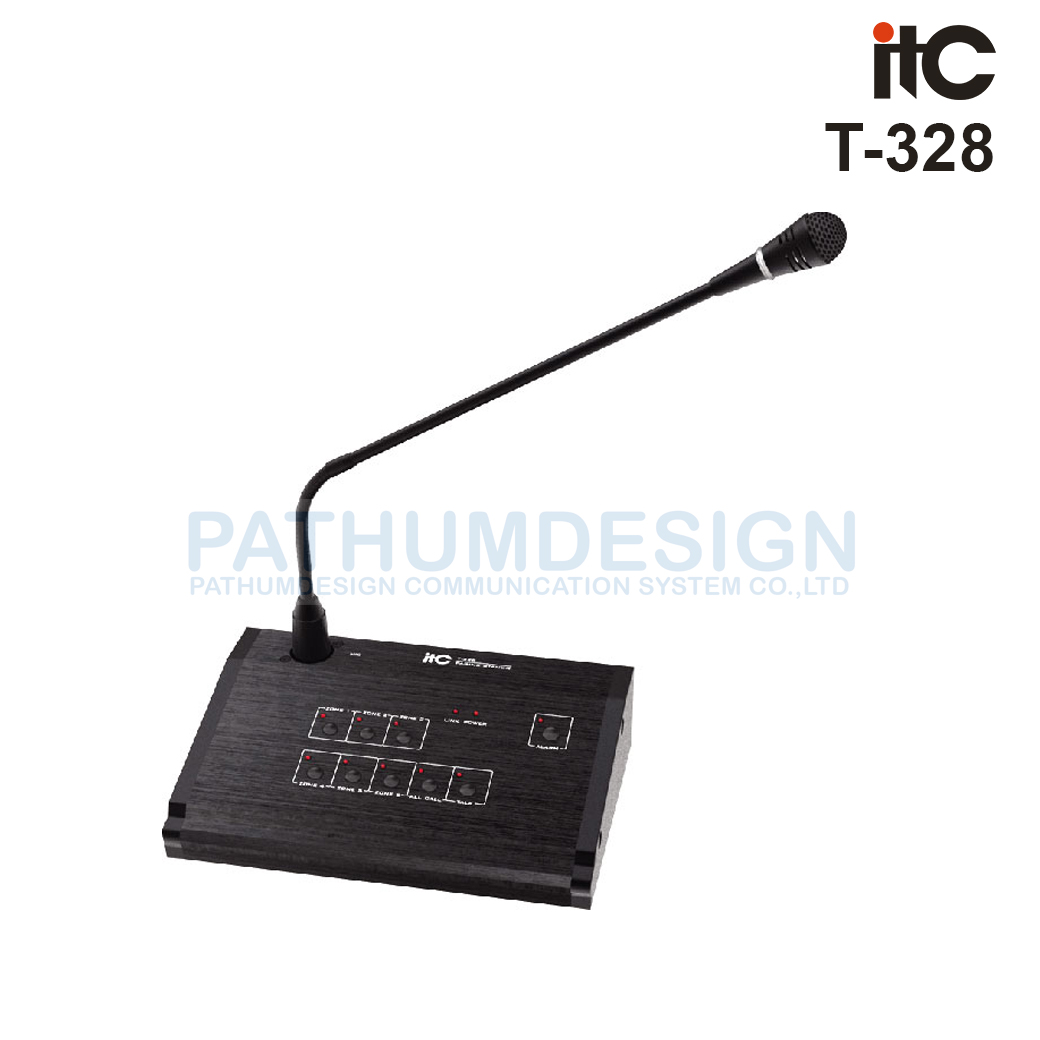

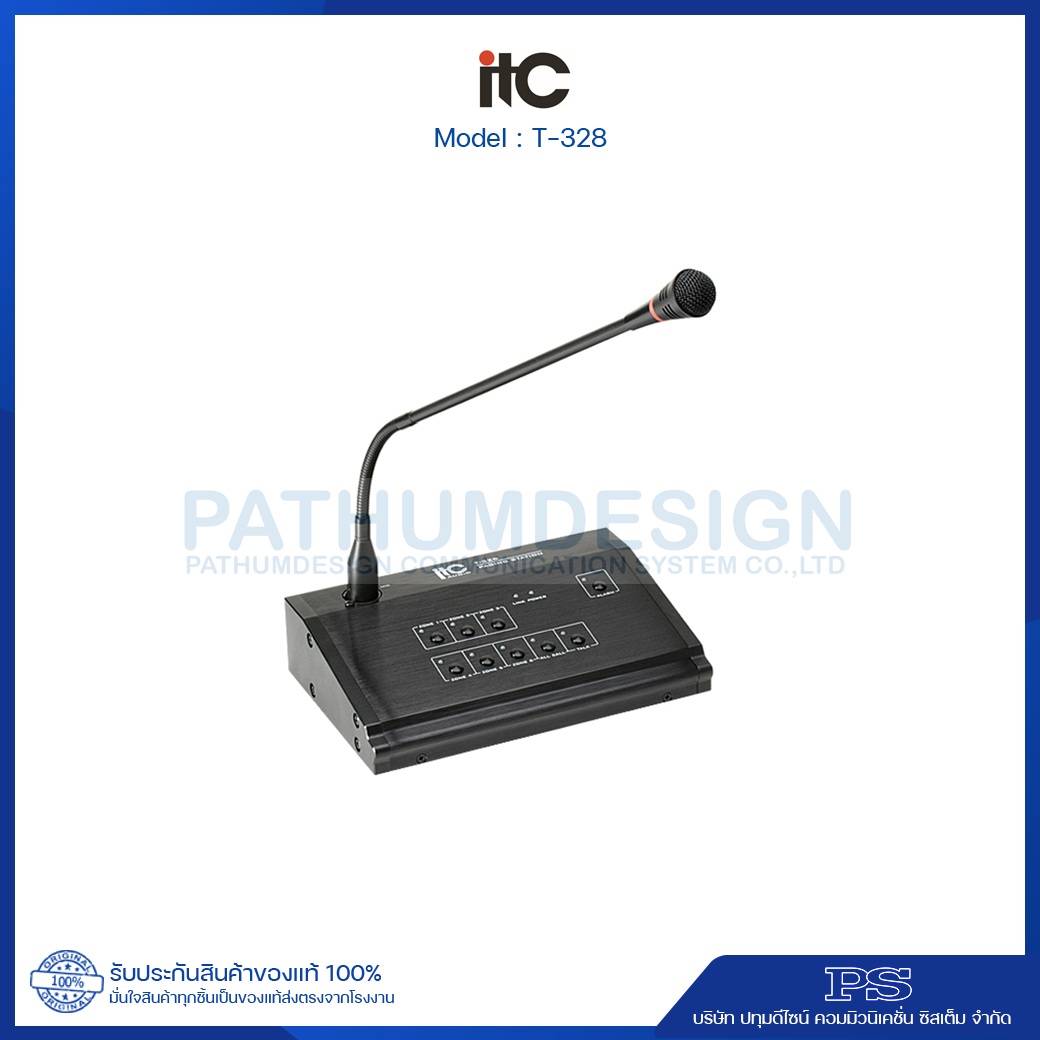

ITC T-328 Paging Station Microphone ITC T-328 Paging Station Microphone
หมวดหมู่สินค้า: ITC
รหัส : PS15ITC1094
สินค้ารับประกัน 1 ปี ราคายังไม่รวมภาษีมูลค่าเพิ่ม ค่าแรงติดตั้ง และค่าจัดส่ง
จาก 13,000.00 บาท ลดทันที 10%
ราคา 11,700.00 บาท

09 พฤศจิกายน 2566

ผู้ชม 874 ผู้ชม

ITC T-328 6 Zone Remote Paging Console with T-6245
  • Frequency Response 100Hz~17KHz(+1, -3dB)
  • Sensitivity -50/-2dB 2, 5/500mV
  •  S/N Ratio >68dB
  •  Power Supply DC 24V



  • Zone selection Push the switch for one zone or all zone and the zone led turn on.
  • Announcement After selecting the zone where to make the announcement, then keep pushing the talk button till the led turn on, the internal chime will be heard, after that, the user could proceed with the announcement. If the zone selected is already taken by another connected paging console, the talk led starts blinking which means line is busy.
  • Pre-recorded message 3 remote trigger After selecting the zones, push the alarm button to activate the pre-recorded voice message 3 broadcasting. Based on the setting of continuous and once play modes from T-6245, the accordingly activity will be taken.
  • Priority The remote paging announcement with priority over mic1, chime and pre recorded message broadcasting.
  • Pre-recorded messages Three different voice messages could be recorded and stored in the mixer, while each message’s broadcasting time max is 3 minutes. Capacity of 6 paging console working at the same time



คุณสมบัติ

Model

T-328

Sensitivity

-50/-2dB 2, 5/500mV

S/N Ratio

>68dB

Frequency Response

100Hz~17KHz(+1, -3dB)

Phantom Power

12V

Bass

±12dB at 100Hz

Treble

±12dB at 10KHz

Chime

2 tone active for contact free in priority and BGM

Normal Distortion

>0.1%

OPERATING CONDITION



Power Supply

DC 24V

Dimensions

200x120x55mm

Weight

0.96Kg

Max number of paging console

6
