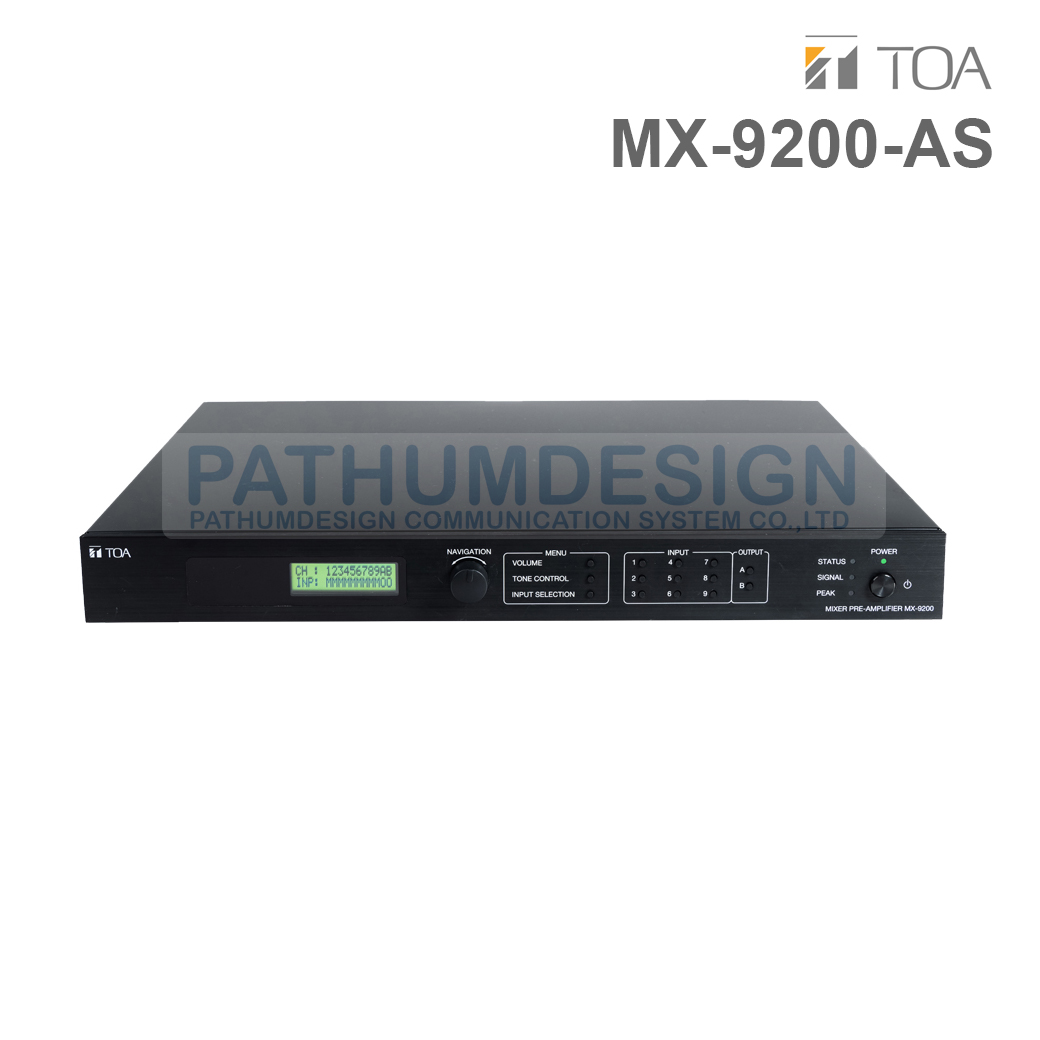

TOA MX-9200 AS Smart Mixer Pre-Amplifier
MX-9200 is a wireless mixer pre-amplifier equipped with 9 inputs including 4 inputs MIC with phantom, 1 selectable input with option of MIC or AUX, 3 selectable inputs with options of MIC or LINE and 1 selectable input with option of MIC or streaming from smartphone. Parameter settings like Volume, Bass, Middle, Treble, Mute on individual input channel and 2 output channels can be easily adjusted remotely with an android touch screen device connected by Bluetooth.
Specifications
| Power Source | 220 - 240 V AC, 14 W |
|---|---|
| Audio Input | Input CH 1 with Phantom option 19 V DC: - CHIME MIC: Balanced, Selectable sensitivity -55 dB (1.8 mV)/ -30 dB (30 mV), 2.2 kΩ, rated 1 kHz, RJ45 connector - MIC: Balanced, Selectable sensitivity -55 dB (1.8 mV)/ -30 dB (30 mV), 2.2 kΩ, rated 1 kHz, Phone jack connector Input CH 2-4 with Phantom option 19 V DC: - Balanced, Sensitivity -55 dB (1.8 mV), 2.2 kΩ, rated 1 kHz, Phone jack connector Selectable Input CH 5 with options: - MIC: Balanced, Sensitivity -55 dB (1.8 mV), 2.2 kΩ, rated 1 kHz, Phone jack connector - AUX: Unbalanced, Sensitivity 0 dB (1.8 mV), 10 kΩ, rated 1 kHz, RCA jack connector Selectable Sensitivity Input CH 6-8, Removable terminal 3 pins with sensitivity options: - LINE: Balanced, Sensitivity 0 dB, 2.2 kΩ, rated 1 kHz - MIC: Balanced, Sensitivity -55 dB (1.8 mV), 2.2 kΩ, rated 1 kHz Selectable Sensitivity Input CH 9, Removable terminal 3 pins with sensitivity options: - MIC: Balanced, Sensitivity -55 dB (1.8 mV), 2.2 kΩ, rated 1 kHz - STREAMING: Unbalanced, Sensitivity 0 dB, 10 kΩ, rated 1 kHz |
| Audio Output | Audio OUT A & B, Balanced, Removable terminal 3 pins Optional output level: 0 dB / -10 dB (300 mV) / -20 dB (100 mV), 600 Ω, rated 1 kHz |
| Control Ouput | 9 Shortcut switch IN, 2 Shortcut switch OUT, 1 Shortcut switch VOLUME, 1 Shortcut switch TONE CONTROL, 1 Shortcut switch INPUT SELECTION, 1 Navigation switch (Right, Left, Push) |
| Tone Control | Bass ± 13 dB at 100 Hz, Middle ± 13 dB at 1 kHz, Treble ± 13 dB at 10 kHz |
| Distortion | Under 1 % at 1 kHz, rated power |
| Frequency Response | 30 Hz - 20 kHz, ± 3dB |
| Indicator | LCD display with backlight Green, POWER indicator (Green), STATUS indicator (Green), SIGNAL indicator (Green), PEAK indicator (RED) |
| Connection | Bluetooth 4.2, USB Type B (PC Setting/Update Firmware) |
| Operating Temperature | 0 °C to +40 °C |
| Operating Humidity | Under 90 % RH (no condensation) |
| Finish | Front Panel: Aluminium Hair Line, Paint, Black Case: Steel Plate, Paint, Black |
| Dimensions | 420 (W) × 59 (H) × 339.7 (D) mm |
| Weight | 3.3 kg |
| Accessory | 6P connector x 2, 3P connector x 2 |
