หมวดหมู่สินค้า: TOA
รหัส : PS15TOA1047
สินค้ารับประกันคุณภาพ 1 ปี ราคายังไม่รวมค่าแรงติดตั้ง และค่าจัดส่ง
ราคาสินค้ายังไม่รวมภาษีมูลค่าเพิ่ม 7%
จาก 7,000.00 บาท
ลดทันที 5%
ราคา 6,650.00 บาท
18 มีนาคม 2567
ผู้ชม 477 ผู้ชม

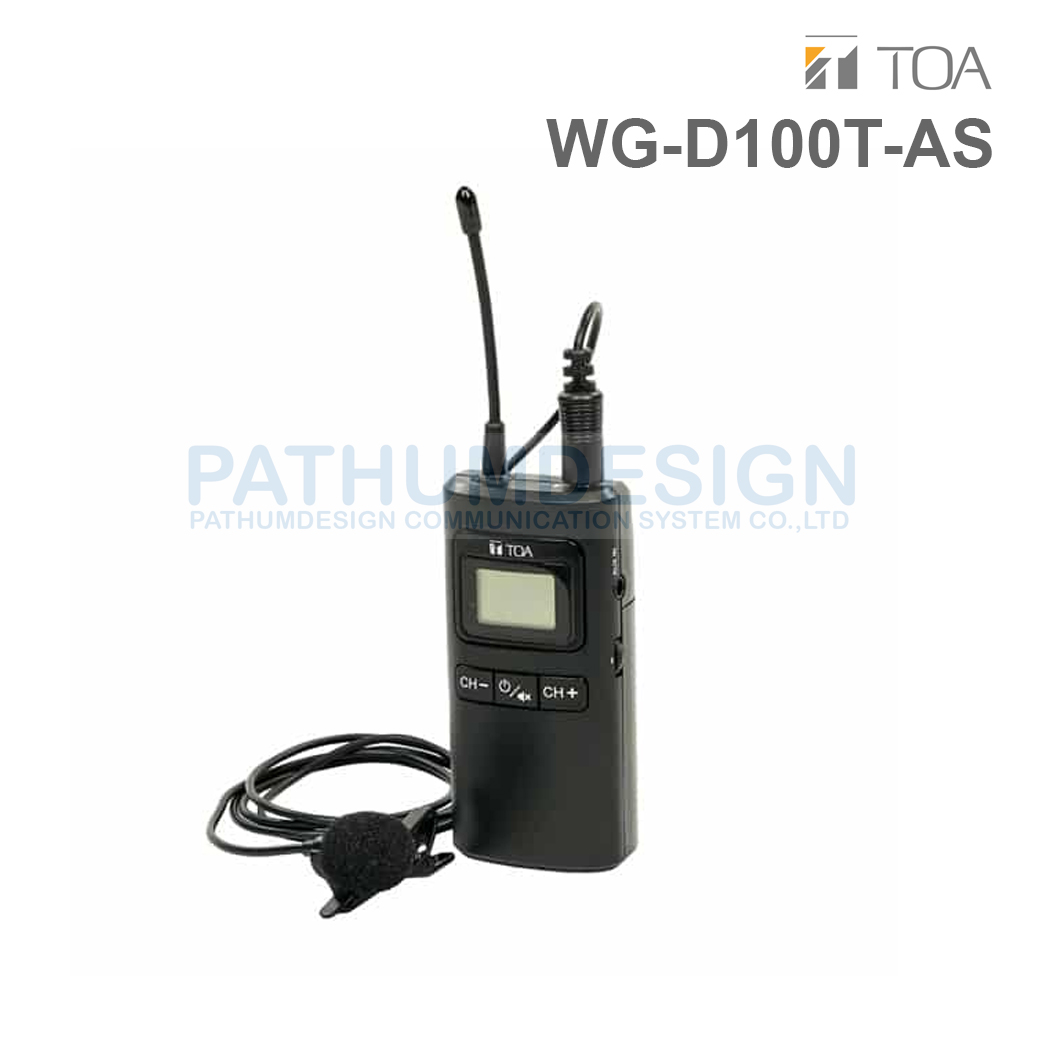

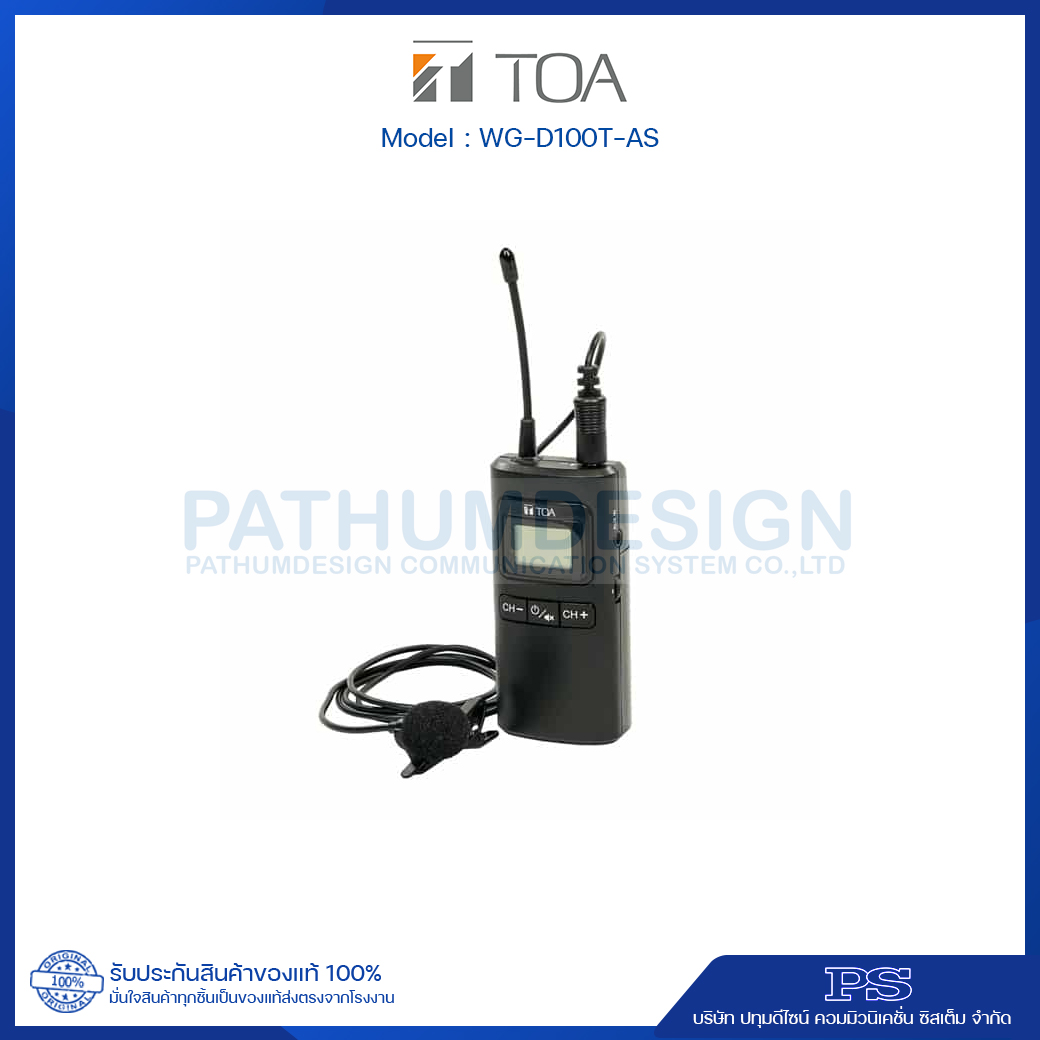

TOA WG-D100T-AS Digital Wireless Guide Transmitter
The WG-D100 Series is a digital wireless tour guide system that convinces with crystal-clear digital audio quality as well as secure and stable transmission
The light-weight receivers and transmitters with their elegant design and comfortable grip can be carried in hand, via clip or lanyard. The large LCD screen
and buttons make them easy to use. They can be charged individually via micro USB port or through the WG-TC12A battery charger.
Specification
| Frequency | 510 - 530 MHz, 803.3 - 805.7 MHz |
|---|---|
| Modulation | GFSK |
| Audio Sampling | 8 kHz 16 bit |
| Latency | 22 ms |
| Frequency Response | 65 Hz - 3.8 kHz |
| Dynamic Range | > 80 dB |
| Signal to Noise | > 70 dB |
| THD at 1kHz | < 1.5 % |
| Service Coverage | Indoor: 100 m / Outdoor: > 150 m |
| Operating Temperature | -10 °C - 50 °C |
| RF Output Power | 10 mW |
| 3.5mm Phone Jack | Mic In x 1 / AUX In x 1 |
| Microphone Source | Built-in & External |
| Input Level | Mic: -35.5 dBV / AUX: -25 dBV |
| Front + & - Buttons | Channel Selector |
| Power Button | Power On / Off and Mute |
| Side Momentary 3way Tact Switch | + : Volume Up |
| Center Push: Corresponding Frequency | |
| - : Volume Down | |
| Battery Life | Approx. 12 hours (data measured using 1 x AA NiMH 2600 mAh rechargeable battery) |
| Battery | Ni-MH type "AA" 1.2V x 1 / Alkaline "AA" 1.5V x 1 |
| Charging Source | DC 5V Micro USB |
| Charging Time | Depends on battery type and capacity |
| Charging Current | 255 ± 10 mA |
| LCD Display | Channel, Battery Indicator, Volume, Signal Strength |
| Antenna | Whip |
| Regulatory Compliance | CE FCC |
| Color | Black Frame |
| Dimensions | 40 (W) × 83.5 (H) × 24.6 (D) mm, Antenna length not included |
| Weight | 38.6 g (battery not included) |
| Accessory | Lapel Mic x 1, Belt Clip x 1, Lanyard (Black) x 1, Universal USB Adapter x 1, USB Cable x 1 |
