หมวดหมู่สินค้า: TOA
รหัส : PS15TOA1071
สินค้ารับประกันคุณภาพ 1 ปี ราคายังไม่รวมค่าแรงติดตั้ง และค่าจัดส่ง
ราคาสินค้ายังไม่รวมภาษีมูลค่าเพิ่ม 7%
จาก 12,400.00 บาท
ลดทันที 5%
ราคา 11,780.00 บาท
18 มีนาคม 2567
ผู้ชม 512 ผู้ชม

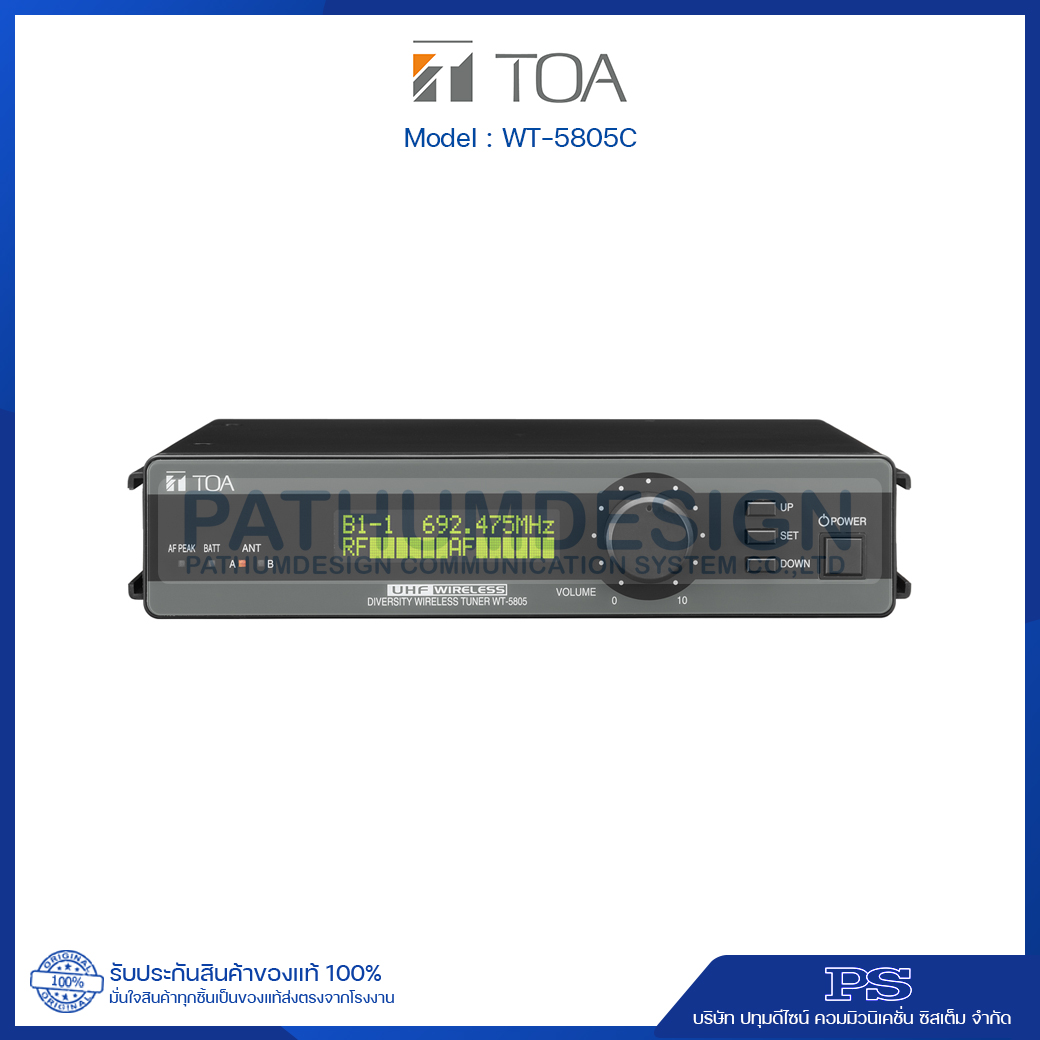

TOA WT-5805C AS (UHF Wireless Tuner) C04,QB02
|

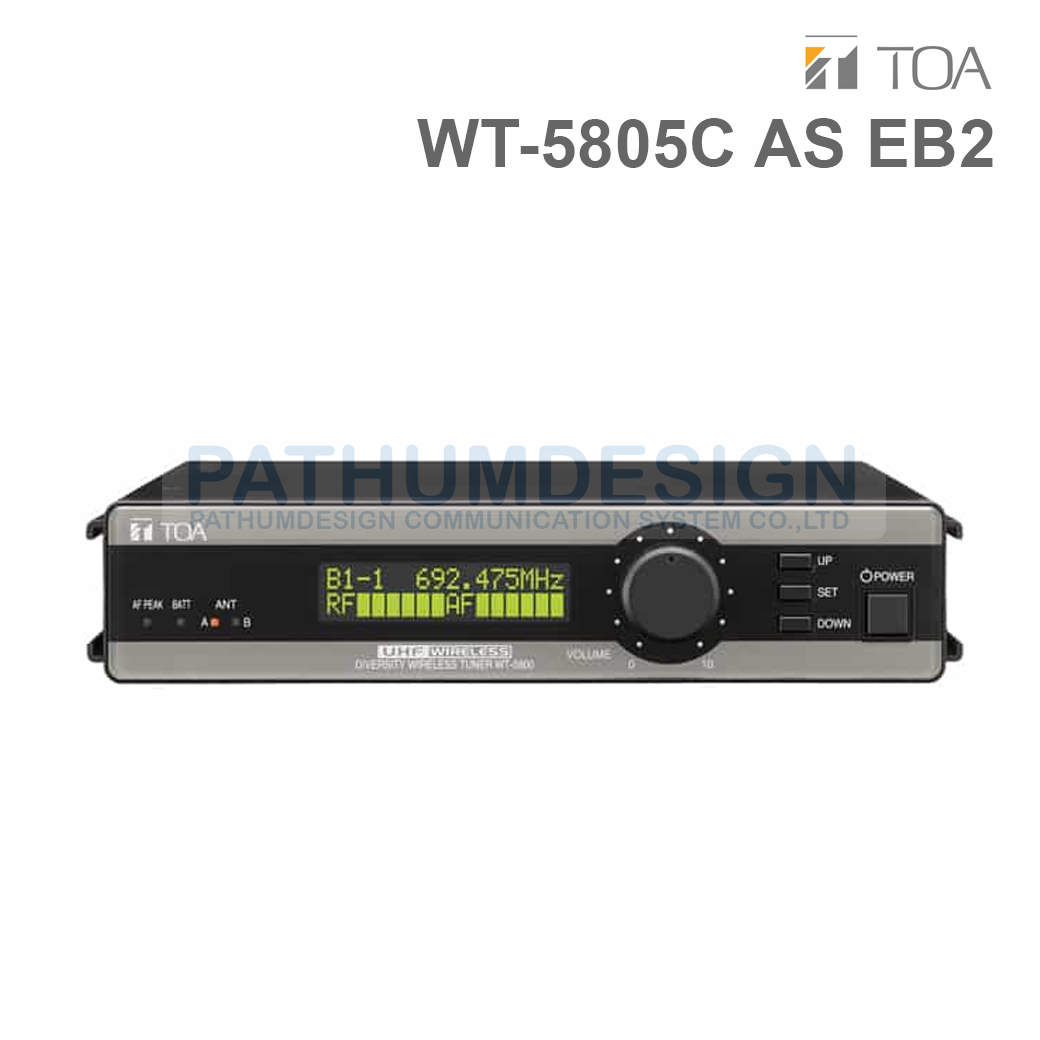

WT-5805C AS EB2 (UHF Wireless Tuner)
|
wireless tuner WT-5805 is a PLL-synthesizer controlled double superheterodyne diversity tuner to be used in UHF wireless systems. It employs a compander noise reduction circuit to minimize the influence of the ambient RF noise.
Specification
| POWER SOURCE | AC mains (supplied AC adapter must be used) |
|---|---|
| POWER CONSUMPTION | 200 mA (12 V DC) |
| RECEIVING FREQUENCY | 803 – 806 MHz, UHF |
| CHANNEL SELECTABLE | 64 selectable frequencies |
| RECEIVING SYSTEM | Double super-heterodyne |
| DIVERSITY SYSTEM | Space diversity |
| MIXING OUTPUT | MIC/LINE (selectable): -60 dB (*1) (MIC)/-20 dB (*1) (LINE), 600 Ω phone jack (unbalanced), 600 Ω XLR-3-32 type connector (balanced) |
| MIXING INPUT | -20 dB (*1), 10 kΩ, unbalanced, phone jack |
| ANTENNA INPUT | 75 Ω, BNC (phantom powering for antenna), 9 V DC, 30 mA (max) |
| RECEIVING SENSITIVITY | 90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation) |
| SQUELCH SENSITIVITY | 16 – 40 dBμV variable |
| SQUELCH SYSTEM | Using together of noise SQ, carrier SQ and tone SQ |
| TONE FREQUENCY | 32.768 kHz |
| INDICATOR | Audio (6 steps), RF (6 steps), ANT A/B, Audio (peak), Battery alarm |
| CHANNEL CHECK | Usable frequencies scanning |
| SIGNAL TO NOISE RATIO | 110 dB or more (A-weight, unbalanced output) |
| HARMONIC DISTORTION | 1 % or less (typical) |
| FREQUENCY RESPONSE | 100 Hz – 15 kHz, ±3 dB |
| OPERATING TEMPERATURE | -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) |
| OPERATING HUMIDITY | 30 % to 85 %RH (no condensation) |
| FINISH | Resin, black |
| DIMENSIONS | 210 (W) × 44 (H) × 205.1 (D) mm (8.27″ × 1.73″ × 8.07″) |
| WEIGHT | 700 g (1.54 lb) |
| ACCESSORY | AC adapter…1 |
| OPTION | Mounting bracket kit: MB-WT3 (for rack mounting one WT-5805C unit) MB-WT4 (for rack mounting two WT-5805C units) |
