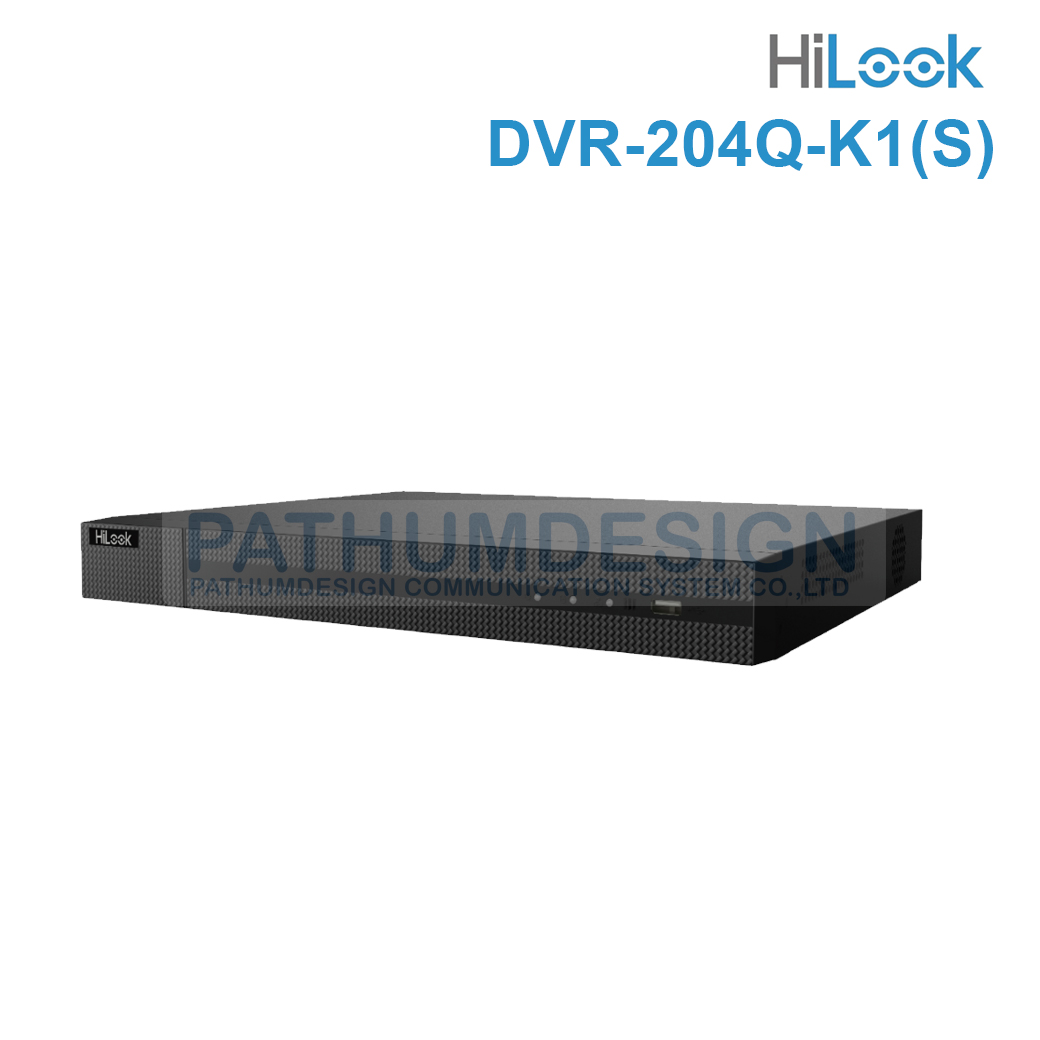

HiLook DVR-204Q-K1(S)

HiLook DVR-204Q-K1(S)
หมวดหมู่สินค้า: HILOOK
รหัส : PS09HL0511
สินค้ารับประกันคุณภาพ 2 ปี ราคายังไม่รวมค่าแรงติดตั้ง และค่าจัดส่ง ราคาสินค้ายังไม่รวมภาษีมูลค่าเพิ่ม 7%
ราคา 1,400.00 บาท
- +

แท็ก: HiLook DVR-204Q-K1(S)HiLookDVR-204Q-K1(S)4chกล้องวงจรปิดเครื่องบันทึกภาพ

25 ตุลาคม 2566

ผู้ชม 479 ผู้ชม

HiLook DVR-204Q-K1(S)

DVR 4CH. HDTVI HILOOK DVR-204Q-K1(S)

  • 4 CH HD-TVI/AHD/CVI/CVBS video
  • 1 CH Audio input
  • 2 CH IP video input (up to 6MP resolution)
  • 1 SATA interface Up to 10 TB
  • 4 MP lite@15fps
  • 1U case
Brand HILOOK
Model

204Q-K1
Supported Camera Types

TVI / AHD / CVI / Analog
Network

Network protocols : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
Interface

4 x BNC (1.0 Vp-p, 75Ω)
1 x 10M / 100M self-adaptive Ethernet interface
1 x HDMI
1 x VGA
Storage

1 SATA Interface
Up to 10 TB capacity for each disk
Power Supply

12 VDC
Power Consumption

≤ 8 W
Working Environment

Working Temperature : -10 oC to +55 oC (+14 oF to +131 oF)
Working Humidity : 10% to 90%
Video Input

Support HDTVI input : 4MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
Note : The 3 MP signal input is only available for the first channel of DVR-204Q-K1

Support AHD input : 4MP, 1080p25, 1080p30, 720p25, 720p30
Support CVI input : 4MP, 1080p25, 1080p30, 720p25, 720p30
Support CVBS input : PAL/NTSC
Support IP Video Input : Up to 6 MP resolution 2-ch (up to 6-ch)
Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Audio Input

1-ch RCA (2.0 Vp-p, 1 kΩ)
Audio Compression

G.711u
Video Output

HDMI/VGA Output : 1920 x 1080 / 60 Hz,1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz
Record Resolution

When 1080p Lite mode not enabled : 4MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF
When 1080p Lite mode enabled : 1080p lite/720p/VGA/WD1/4CIF/CIF
Video Bit Rate

32 Kbps-6 Mbps
Record Rate / Main Stream

When 1080p Lite mode not enabled :
For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p .@15fps
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/...@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA...@25fps (P)/30fps (N)

When 1080p Lite mode enabled :
For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps(N)
For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps
For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Record Rate / Extra Stream

WD1/4CIF/2CIF@12fps : CIF/QVGA/QCIF@25fps (P)/30fps (N)
Synchronous Playback

4-ch
User Access

32
USB Interface

2 x USB 2.0 Interfaces
