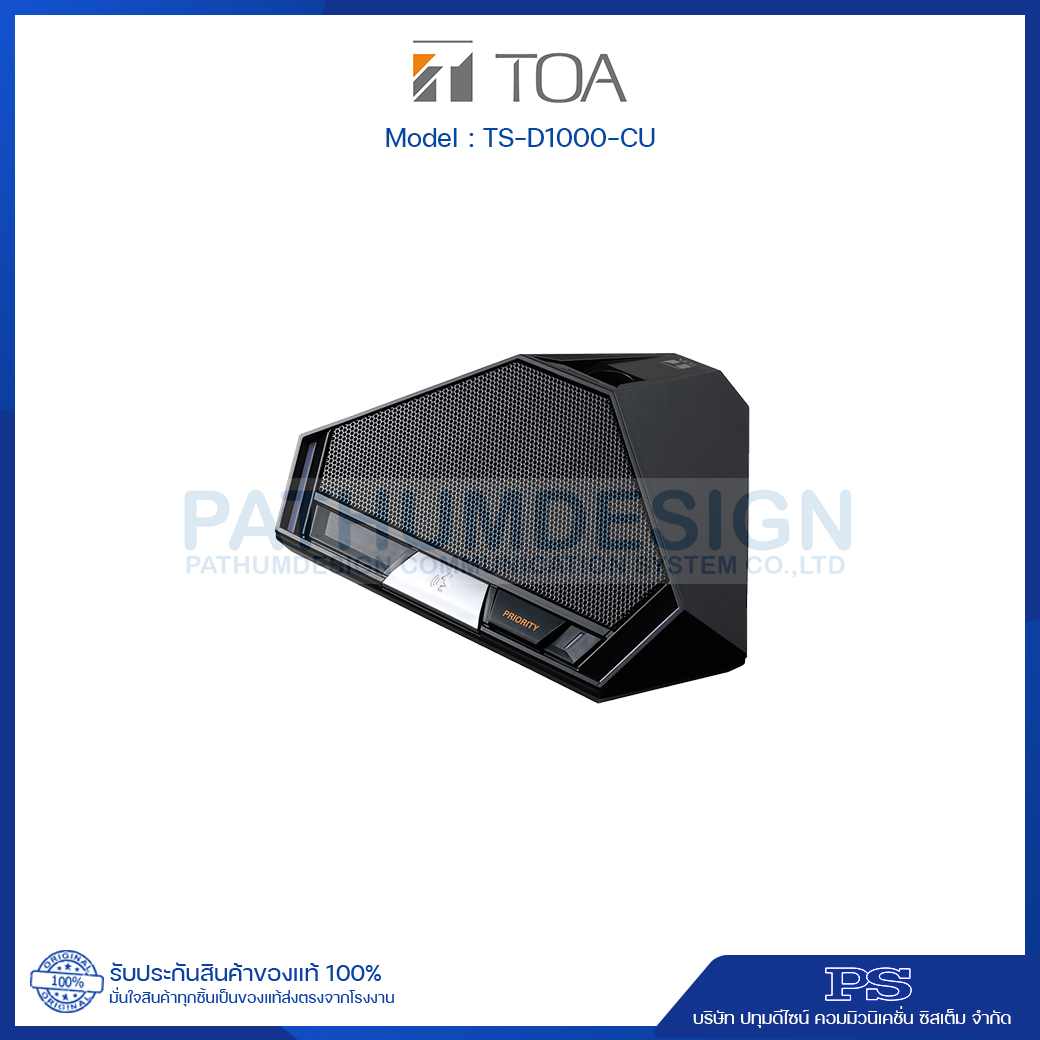

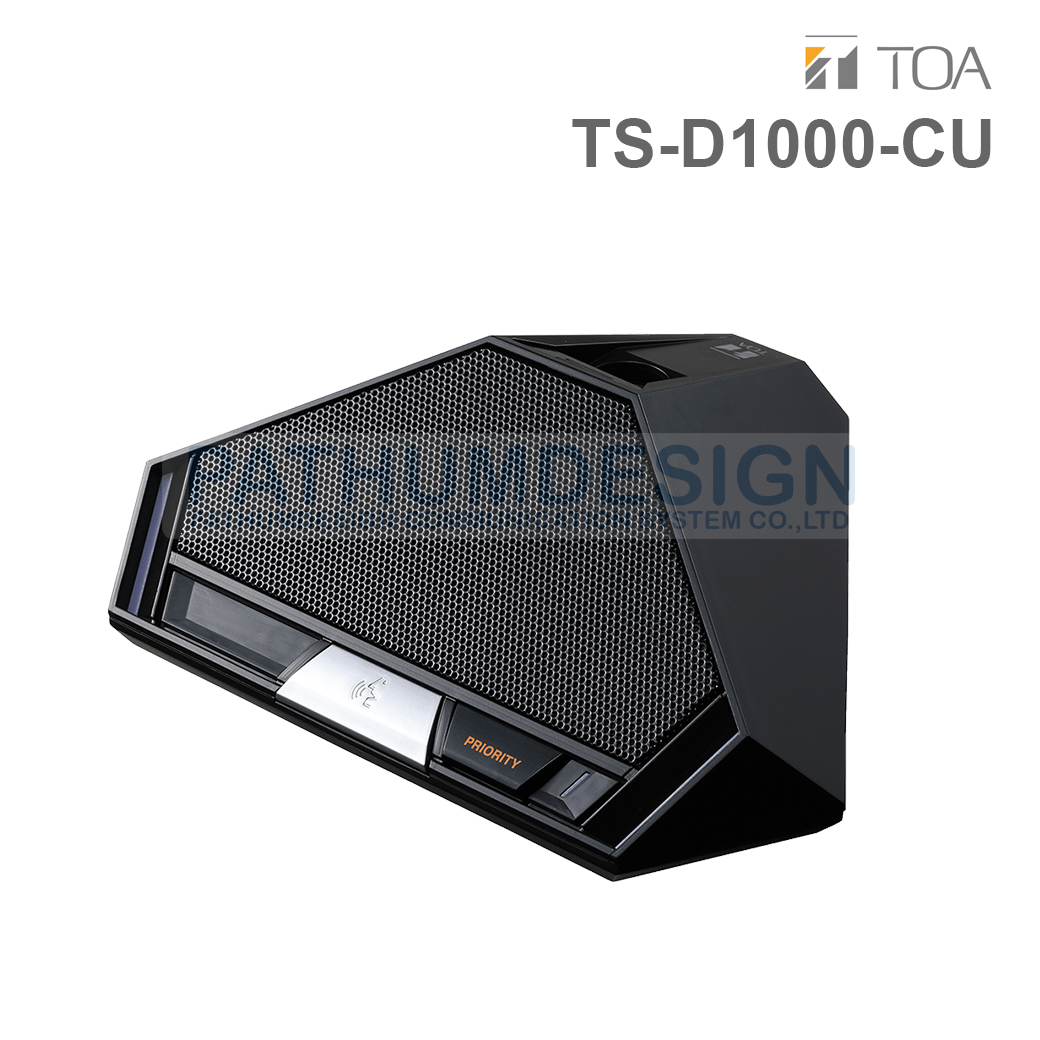

TS-D1000-CU Chairman Unit TS-D1000-CU Chairman Unit
หมวดหมู่สินค้า: TOA
รหัส : PS15TOA0770
สินค้ารับประกันคุณภาพ 1 ปี ราคายังไม่รวมค่าแรงติดตั้ง และค่าจัดส่ง ราคาสินค้ารวมภาษีมูลค่าเพิ่ม 7% แล้ว
จาก 13,200.00 บาท ลดทันที 5%
ราคา 12,540.00 บาท

18 มีนาคม 2567

ผู้ชม 441 ผู้ชม

TOA  TS-D1000-CU Chairman Unit of the TOA's Digital Conference System can be instantly used by simply connecting it to the TS-D1000-MU Master Control Unit using CAT5e STP LAN cables. Option microphones, TS-D1000-M1 or TS-D1000-M2 comes in 2 different length to fit every application's need.


Power Source 24 V DC (supplied from the TS-D1000-MU Master Control Units (option),
                                        TS-D1000-SU Sub Control Units (option),
                                        TS-D1000-EX Extension Units (option))
Power Consumption 1.5 W or less
Signal to Noise Ratio 65 dB or more (A-weighted)
Input Microphone terminal: XLR-3-31 type
Output Monitor speaker: 8 Ω, 0.4 W
Earphone: ø3.5 mm mini Jack (3P:monaural) × 2
Speaker Output 75 dB SPL
Connecting Terminal RJ45 connector x 2
LED Indicator Power Indicator, Speech indicator
Function Speech function, Priority speech function, Earphone volume control (x2)
Operating Temperature 0 ℃ to +40 ℃
Operating Humidity 90 %RH or less (no condensation)
Finish Case: ABS resin, black, matte finish, paint
Speaker Net: Steel plate, black, matte finish, paint
Dimensions 208.9 (W) × 71.3 (H) × 160.5 (D) mm
Weight 880 g
Option Standard Microphone: TS-D1000-M1
Long Microphone: TS-D1000-M2
