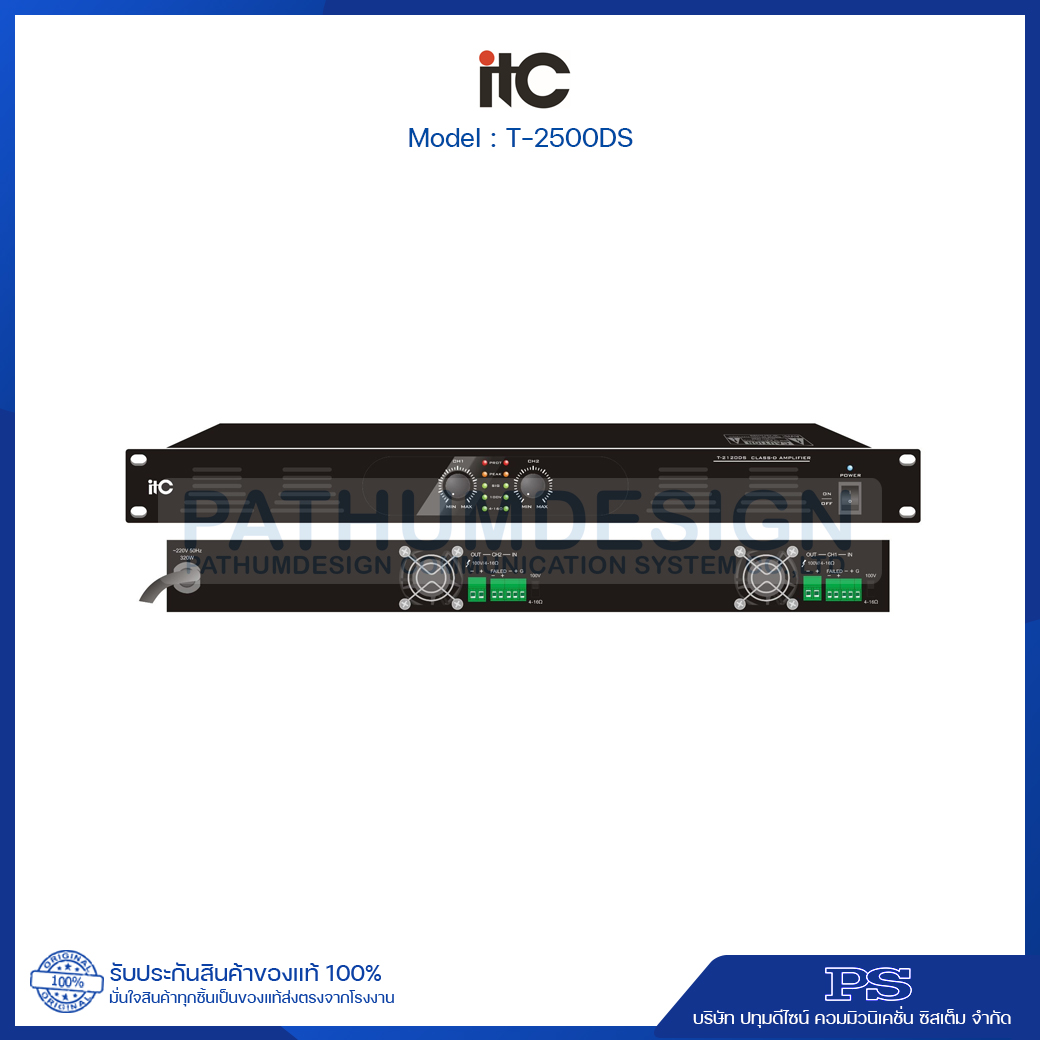

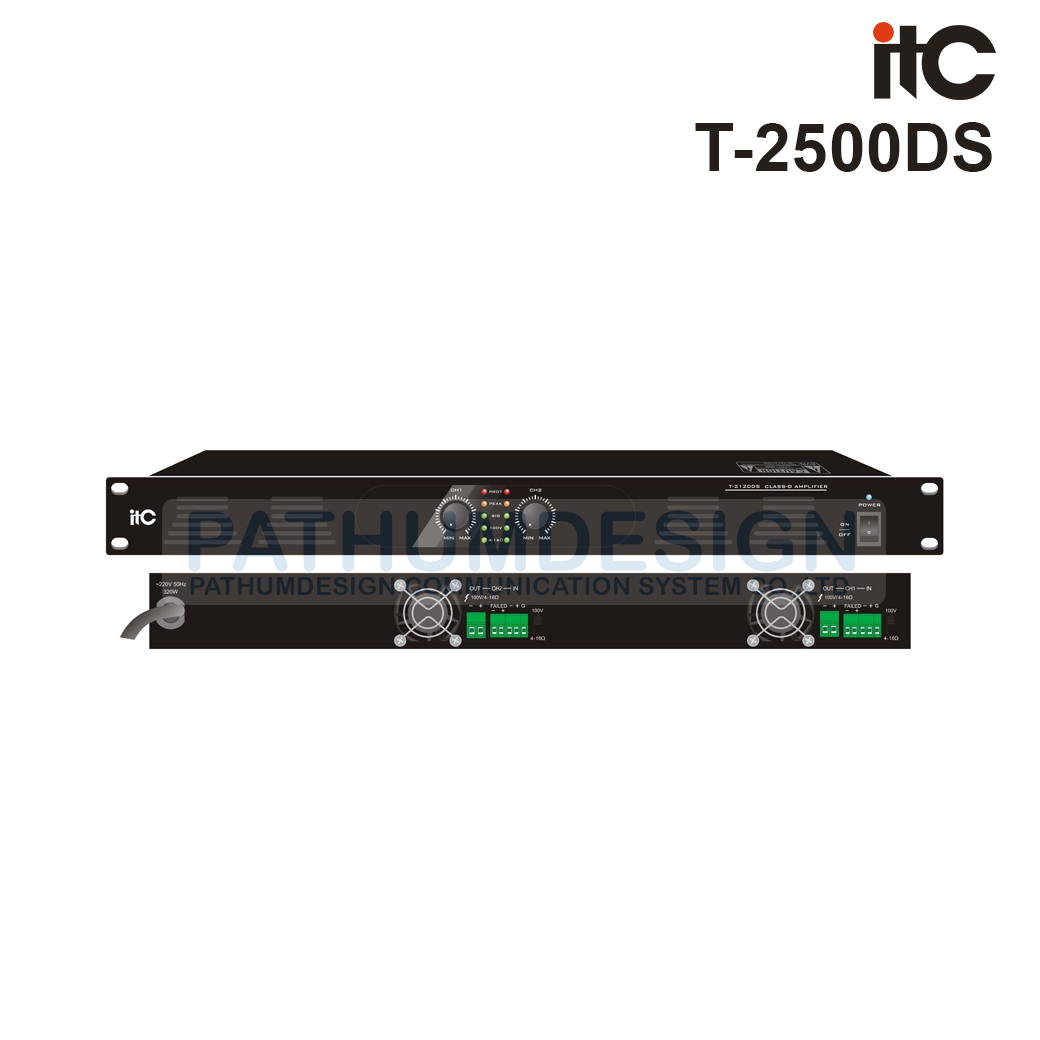

ITC T-2500DS 2x500W, Class-D Amplifier, 100V
Description:
Provide regional power amplification for broadcast systems, suitable for broadcast systems such as clubs, venues, shopping centers, etc. with multi-channel high-power amplifier requirements.
Features:
- Adopting high-efficiency Class-D amplifying circuit with built-in high-efficiency switching power supply, which makes the whole machine efficiency up to 85%.
- Reasonable heat dissipation layout is adopted inside the product, which enables the product to maintain a working temperature lower than 55 degrees even in extremely harsh working environment, greatly extending the service life of the equipment.
- 1U standard 19-inch industrial chassis design.
- Providing 2 channel of 100 v or 4-16 Ω output terminal wiring speaker.
- Without transformer output 100V and can switch constant resistance 4-16Ω output.
- The fault output function can remotely monitor the working state of amplifier
- The product has short circuit, overload and overheat protection.
- Support 2-channel independent power supply function.
- 85% high-efficiency amplifier with low power loss and heat output.
- 2-channel European terminal balanced input and 2-channel European terminal output.
Specifications
|
Model |
T-2120DS |
T-2240DS |
T-2350DS |
T-2500DS |
|
Rated Power Output |
2×120W |
2×240W |
2×350W |
2×500W |
|
Rated Output |
100V/4-16Ω |
|||
|
Input Sensitivity |
±385mV/20KΩ,Balance input |
|||
|
(impedance) |
|
|||
|
Overload Source Electromotive Force |
>11dB |
|||
|
Frequency Response |
80Hz~16KHz (+1, -3dB) |
|||
|
Signal-to-noise Ratio |
≥85dB |
|||
|
THD |
≤0.1% at 1KHz, 1/3 Rated power |
|||
|
Control |
Remote power control and fault indication |
|||
|
Indicator Light |
Signal, peak, protection, power |
|||
|
Protection |
Overheat, overload, short circuit |
|||
|
Cooling |
Fan forced cooling |
|||
|
Power Supply |
~220V/50Hz |
|||
|
Power Consumption |
320W |
650W |
950W |
1250W |
|
Dimension |
484×300×44mm |
|||
|
Weight |
4.4Kg |
4.5Kg |
4.6Kg |
4.7Kg
|
