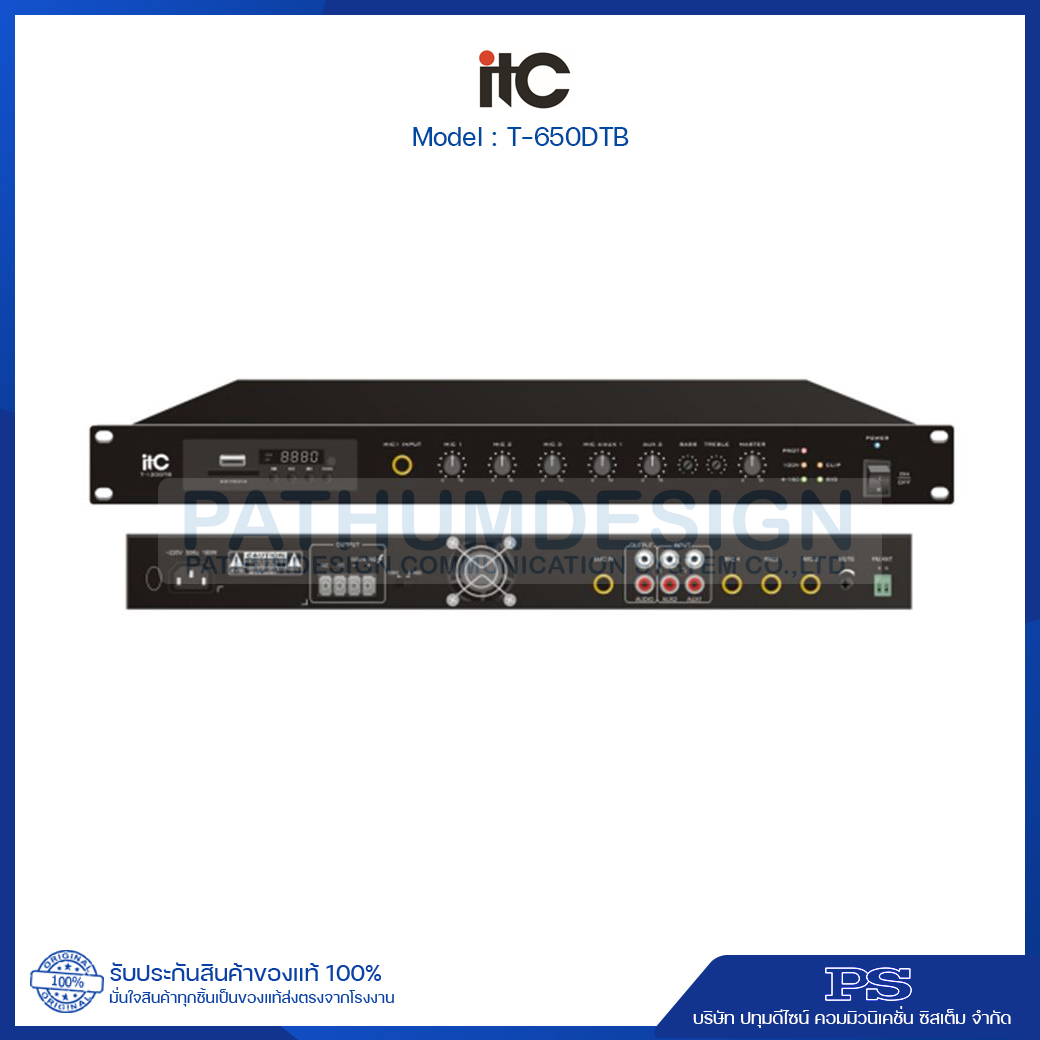

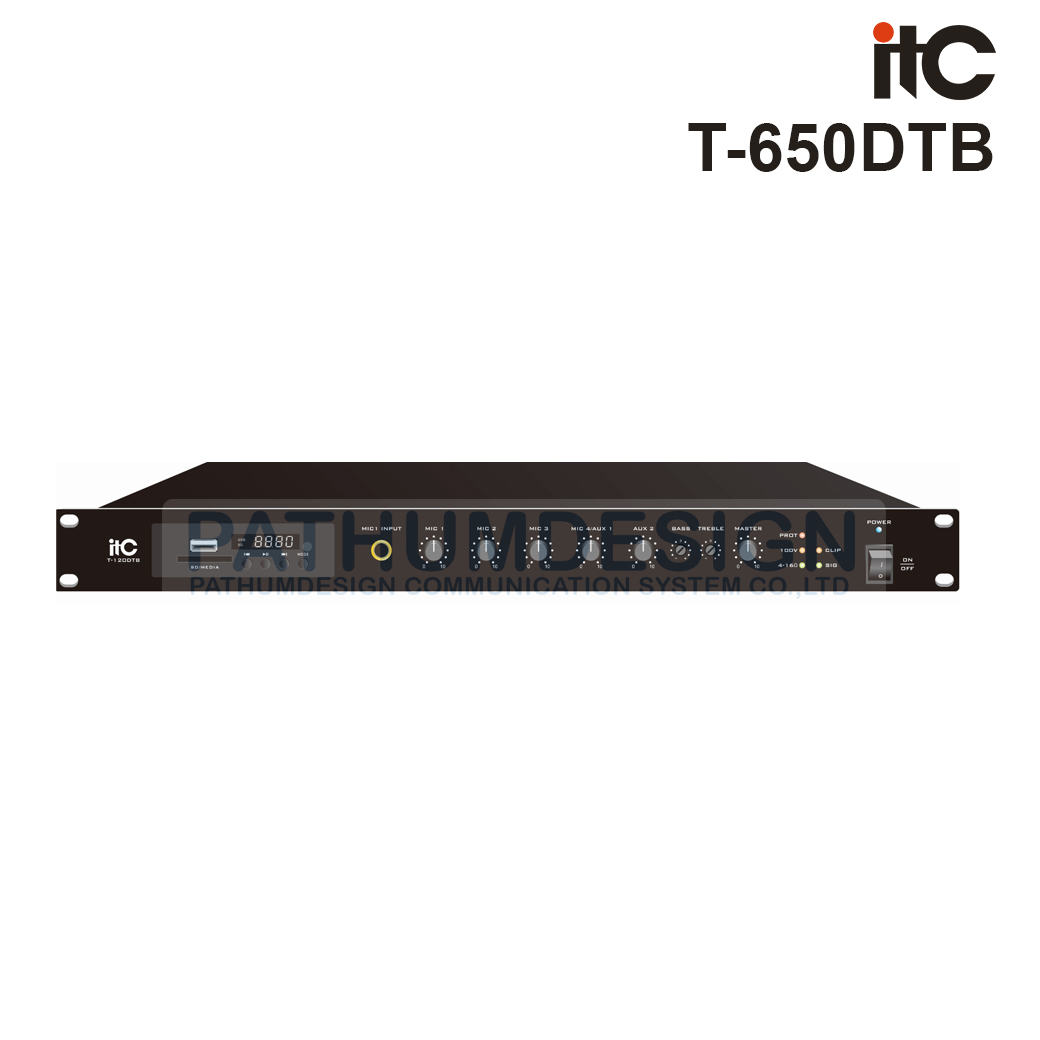

ITC T-650DTB 650W Mixer Amplifier Class-D
with MP3/Tuner/Bluetooth&USB, 4 Mic, 2 Aux, 1 Emc
Digital Mixer Amplifier with MP3/TUNER/Bluetooth, for background music playback of small and medium-sized indoor venues such as small and medium-sized supermarkets, shopping malls, and leisure cafes.
Features
- Standard rack mounted design (1U), exquisite SMT process design.
- With MP3 function module, adopt LCD display, support playback of various file formats in U disk such as MP3, WMA, APE, FLAC, WAV, and AAC; with TF card, support mobile phone Bluetooth function, and can display song names.
- Support mp3/TUNER/Bluetooth remote control function.
- 1 channel EMC input, 2 channel AUX input, 4 channel MIC input.
- Channel priority function EMC>MIC1>MIC2, MIC3, AUX1, AUX2.
- Each input has independent volume adjustment, and the total volume has treble, bass adjustment and volume control function.
- The device is equipped with level indication, overload and protection indicators.
- The device has good self-protection such as short circuit, overload and overheating.
- Two output modes: constant voltage output 100V, constant resistance output 4-16Ω.
- The high-efficiency energy-saving switching power supply is perfectly combined with the high-energy saving and ultra-stable design of class D digital power amplifier.
- Wide voltage supply: 180V-240V can work normally.
- Standby power supply 24V switching without delay (optional).
Specifications:
|
Model |
T-650DTB |
|
Output |
4-16Ω, 100V |
|
RMS Power |
650W |
|
Input Sensitivity And Impedance |
MIC1,2,3,4 input: 5mV / 600Ω unbalanced 6.3 connection terminal; |
|
AUX1,2 input: 350mV / 10KΩ unbalanced RCA connection terminal; |
|
|
EMC input: 775mv / 10KΩ unbalanced 6.3 connection terminal |
|
|
Output Sensitivity & Source Impedance |
MIX OUT: 1000mV / 470Ω unbalanced RCA connection terminal |
|
Tone |
Bass: ± 10dB at 100Hz; |
|
Treble: ± 10dB at 10KHz |
|
|
Frequency Response |
50Hz ~16KHz (+ 1dB, -3dB) |
|
SNR |
MIC1,2,3: 66dB; AUX1,2: 80dB |
|
THD |
< 0.5% (at 1KHz, 1/3 rated power) |
|
Mute Function |
MIC 1 is prior to MIC2-4, AUX1-2 audio input; EMC is prior to all audio inputs |
|
Channel Crosstalk Attenuation |
≥50dB |
|
Heat Dissipation |
Side-in and rear-out forced fan cooling; fan starts automatically when the device is turned on; infinitely variable speed |
|
Protection |
Overheat protection, overcurrent protection, short circuit protection |
|
Power Supply |
~ 220 -240V/ 50Hz |
|
Power Consumption |
850W |
|
Dimension |
484 ×300 × 44mm |
|
Weight |
4.3kg |
