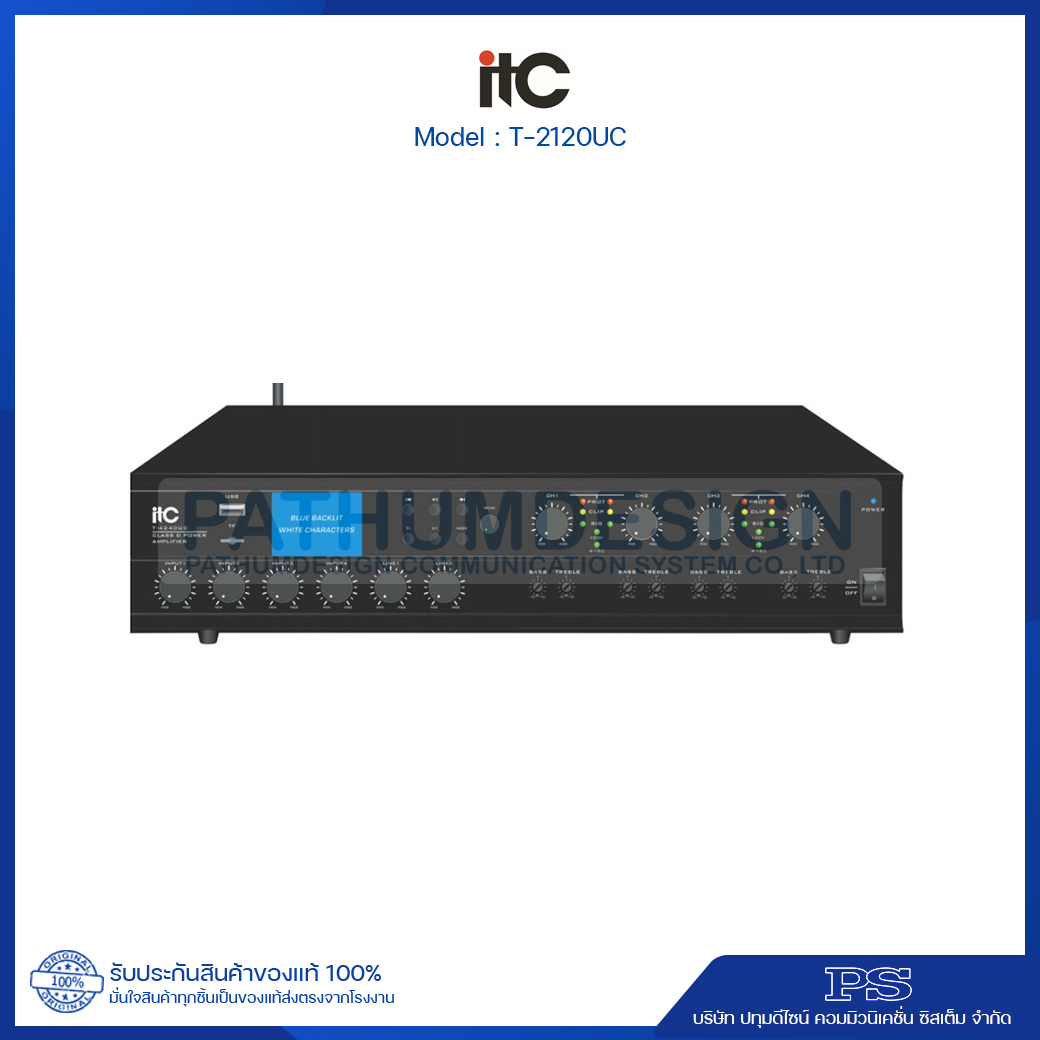

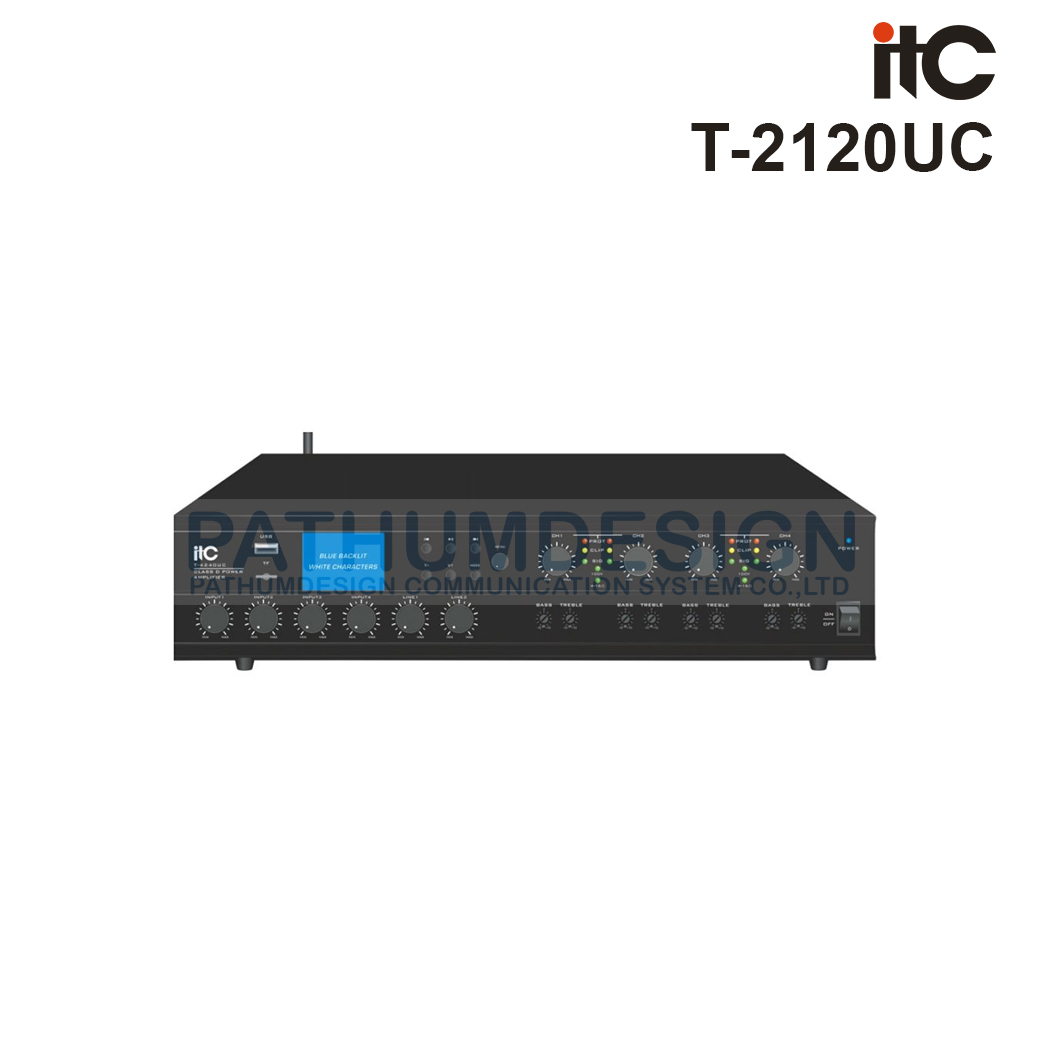

ITC T-2120UC เพาเวอร์มิกเซอร์ 6-ch 2x120 วัตต์
It meets thedemands of emerging markets to provide high-quality equipment at affffordable prices. The UC series amplififiers enjoy two outputs of 4R/100V and multiple functions, which are applicable worldwide. The series combines many functions for convenient and flflexible usage, including Bluetooth and USB media players; low impedance function (4 ohm/8 ohm) and high impedance output (100V); each output channel is equipped with separate bass and treble control. It is suitable for clubs, stadiums, shopping centers and other broadcasting systems on demand of multi-channel high-power amplififier.
Feature
- 120W/240W constant impedance/voltage high performance digital amplififier (4-16R/100V) with 4 channel outputs.
- Built-in MP3 recording function.
- 6-channel independent volume control.
- 6-channel audio sources can be input to each channel output through matrix confifiguration.
- MIC1-4 input with adjustable gain.
- 4-channel outputs support independent amplififier tone adjustment.
- Support 4 remote microphone inputs.
- Built-in MP3 (U disk/SD card) player function.
- Built-in FM radio function.
- Adopt high-grade OLED screen.
- 4-channel outputs support the remote panel control.
- Distortion, protection, signal, output status indicator.
- MIC 1-4 channels support phantom power.
- 1-4 Channels enjoy priority and mixing selection function.
- Enjoy priority input port of EMC alarm sound source.
- ALARM port to play the specifified alarm track.
- Built-in Bluetooth function and high-gain Bluetooth antenna to connect to mobile phones / computers.
- 4-channel MUTE ports can be connected to the fifire control port.
- Priority: MUTE>EMC>REMOTE MIC> MIC1-4>MIC5-6 LINE5-6.
Specification
| Model | T-2120UC | T-2240UC | T-4120UC | T-4240UC |
| Output terminal | 4-16Ω, 100V | |||
| Output power | 2*120W | 2*240W | 4*120W | 4*240W |
| Input sensitivity & impedance |
MIC1-6 input: 5mV-350MV±40MV/600Ω AUX1-4 input: 350mV±40MV/10KΩ unbalanced RCA connection terminal EMC input: 775mV/10KΩ unbalanced European connection terminal |
|||
| Output sensitivity & source impedance | OUT1-4 OUT: 1000mV/470Ω unbalanced RCA connection terminal | |||
| Tone |
Bass: ±10dB at 100Hz Treble: ±10dB at 10KHz |
|||
| Frequency response | 80～16KHz(+1dB,-3dB) | |||
| SNR | MIC1-6: 66dB; AUX1-4: 80dB | |||
| THD | < 0.5% (at 1KHz, 1/3 rated power) | |||
| Phantom power | 48V(±2V) | |||
