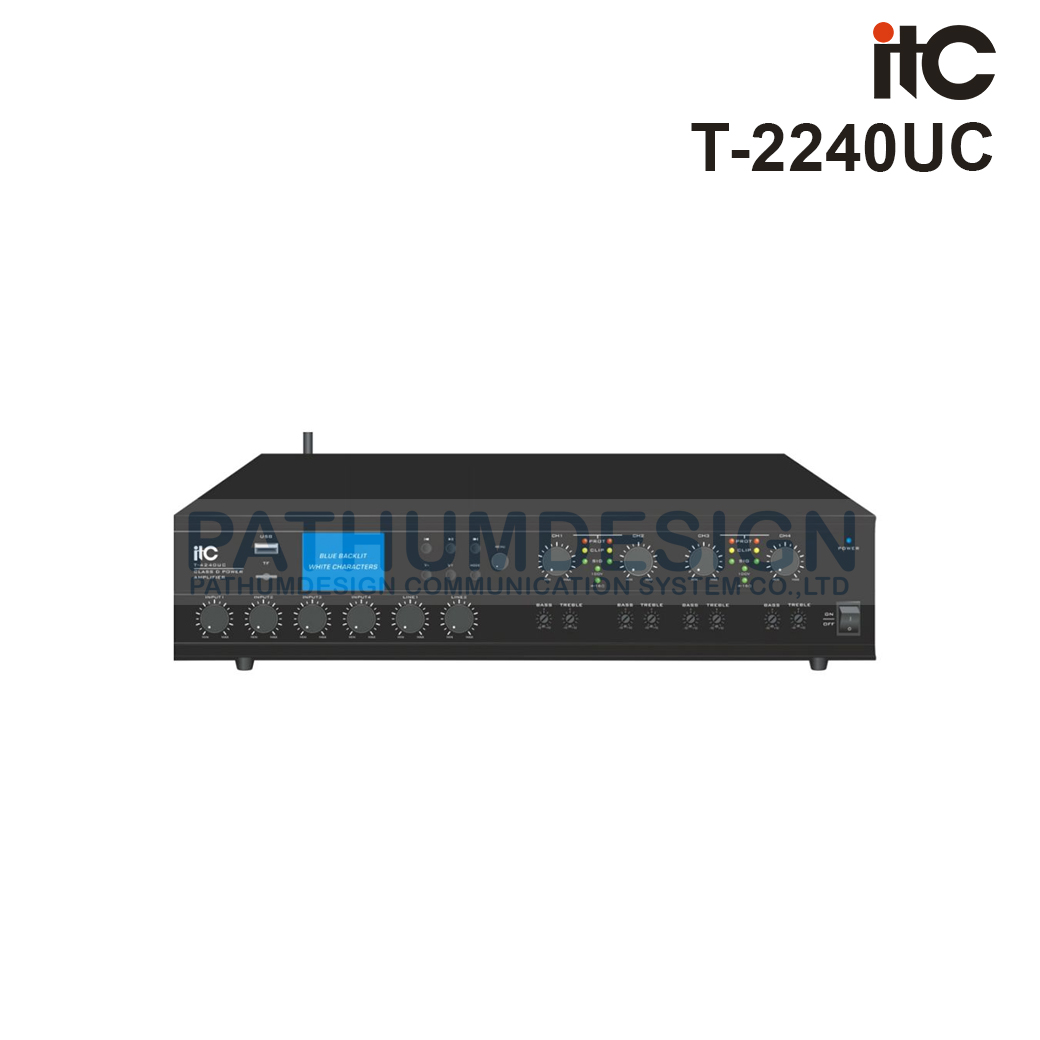

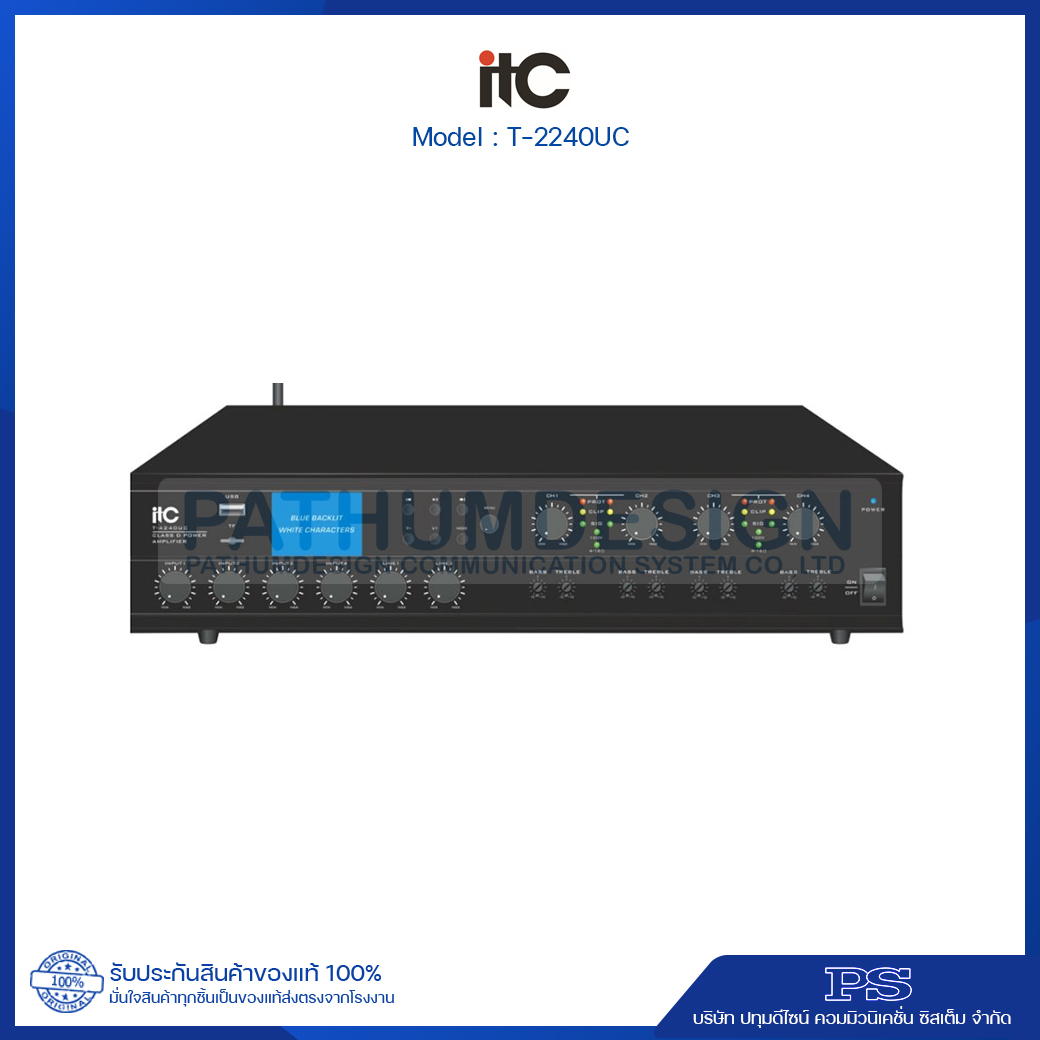

ITC T-2240UC Marix Digital Mixer Amplifier 4x120W ITC T-2240UC Marix Digital Mixer Amplifier 4x120W
หมวดหมู่สินค้า: ITC
รหัส : PS15ITC1518
สินค้ารับประกันคุณภาพ 1 ปี ราคายังไม่รวมค่าแรงติดตั้ง และค่าจัดส่งสินค้า ราคาสินค้ายังไม่รวมภาษีมูลค่าเพิ่ม 7%
จาก 40,000.00 บาท ลดทันที 10%
ราคา 36,000.00 บาท

10 พฤศจิกายน 2566

ผู้ชม 361 ผู้ชม

ITC  T-2240UC เพาเวอร์มิกเซอร์ 2x240 วัตต์



     It meets thedemands of emerging markets to provide high-quality equipment at affffordable prices. The UC series amplififiers enjoy two outputs of 4R/100V and multiple functions, which are applicable worldwide. The series combines many functions for convenient and flflexible usage, including Bluetooth and USB media players; low impedance function (4 ohm/8 ohm) and high impedance output (100V); each output channel is equipped with separate bass and treble control. It is suitable for clubs, stadiums, shopping centers and other broadcasting systems on demand of multi-channel high-power amplififier.



Feature

  • 120W/240W constant impedance/voltage high performance digital amplififier (4-16R/100V) with 4 channel outputs.
  • Built-in MP3 recording function.
  • 6-channel independent volume control.
  • 6-channel audio sources can be input to each channel output through matrix confifiguration.
  • MIC1-4 input with adjustable gain.
  • 4-channel outputs support independent amplififier tone adjustment.
  • Support 4 remote microphone inputs.
  • Built-in MP3 (U disk/SD card) player function.
  • Built-in FM radio function.
  • Adopt high-grade OLED screen.
  • 4-channel outputs support the remote panel control.
  • Distortion, protection, signal, output status indicator.
  • MIC 1-4 channels support phantom power.
  • 1-4 Channels enjoy priority and mixing selection function.
  • Enjoy priority input port of EMC alarm sound source.
  • ALARM port to play the specifified alarm track.
  • Built-in Bluetooth function and high-gain Bluetooth antenna to connect to mobile phones / computers.
  • 4-channel MUTE ports can be connected to the fifire control port.
  • Priority: MUTE>EMC>REMOTE MIC> MIC1-4>MIC5-6 LINE5-6.



Specification

Model T-2120UC T-2240UC T-4120UC T-4240UC
Output terminal 4-16Ω, 100V
Output power 2*120W 2*240W 4*120W 4*240W
Input sensitivity & impedance

MIC1-6 input: 5mV-350MV±40MV/600Ω

AUX1-4 input: 350mV±40MV/10KΩ unbalanced RCA connection terminal

EMC input: 775mV/10KΩ unbalanced European connection terminal

Output sensitivity & source impedance OUT1-4 OUT: 1000mV/470Ω unbalanced RCA connection terminal
Tone

Bass: ±10dB at 100Hz

Treble: ±10dB at 10KHz

Frequency response 80~16KHz(+1dB,-3dB)
SNR MIC1-6: 66dB; AUX1-4: 80dB
THD < 0.5% (at 1KHz, 1/3 rated power)
Phantom power 48V(±2V)
