หมวดหมู่สินค้า: ITC
รหัส : PS15ITC1523
สินค้ารับประกันคุณภาพ 1 ปี ราคายังไม่รวมค่าแรงติดตั้ง และค่าจัดส่งสินค้า
ราคาสินค้ายังไม่รวมภาษีมูลค่าเพิ่ม 7%
จาก 60,000.00 บาท
ลดทันที 10%
ราคา 54,000.00 บาท
10 พฤศจิกายน 2566
ผู้ชม 583 ผู้ชม

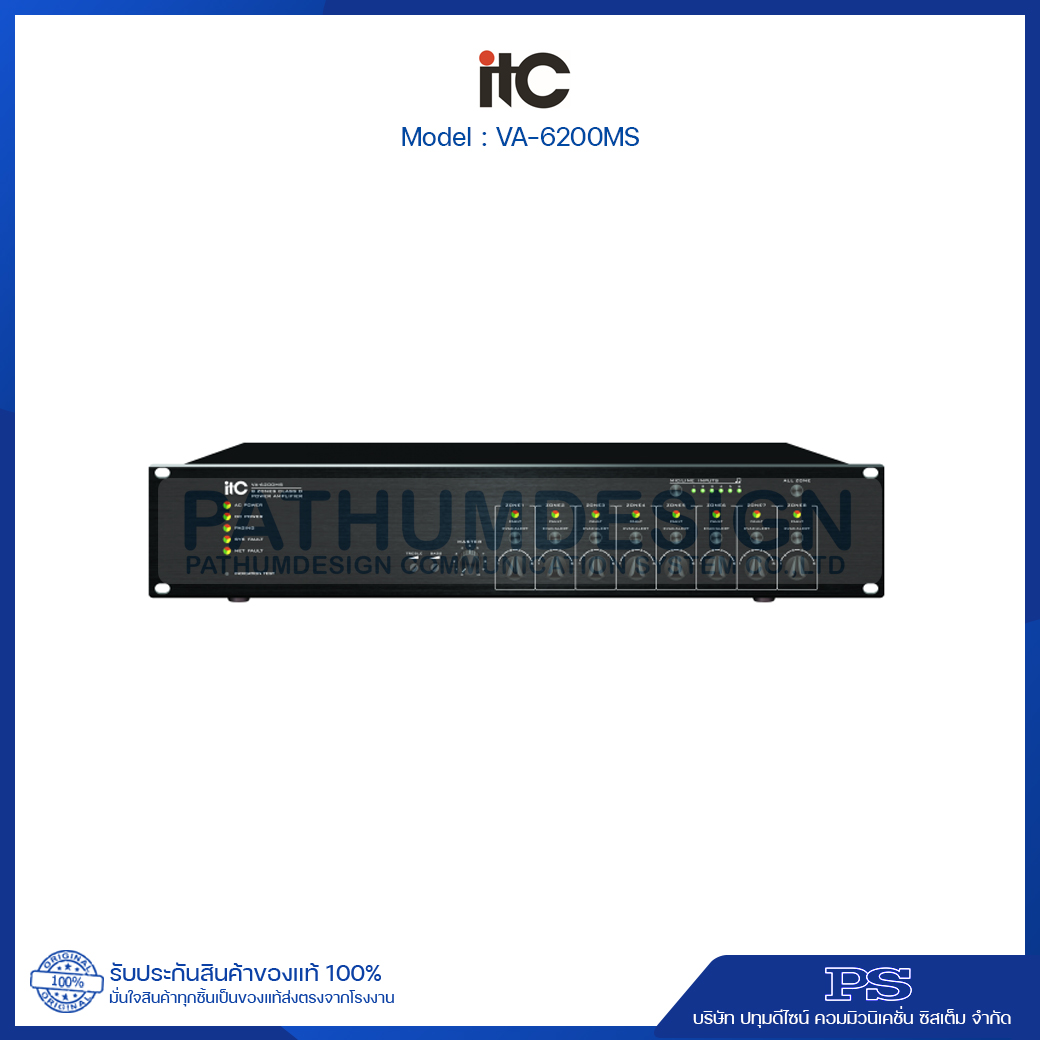

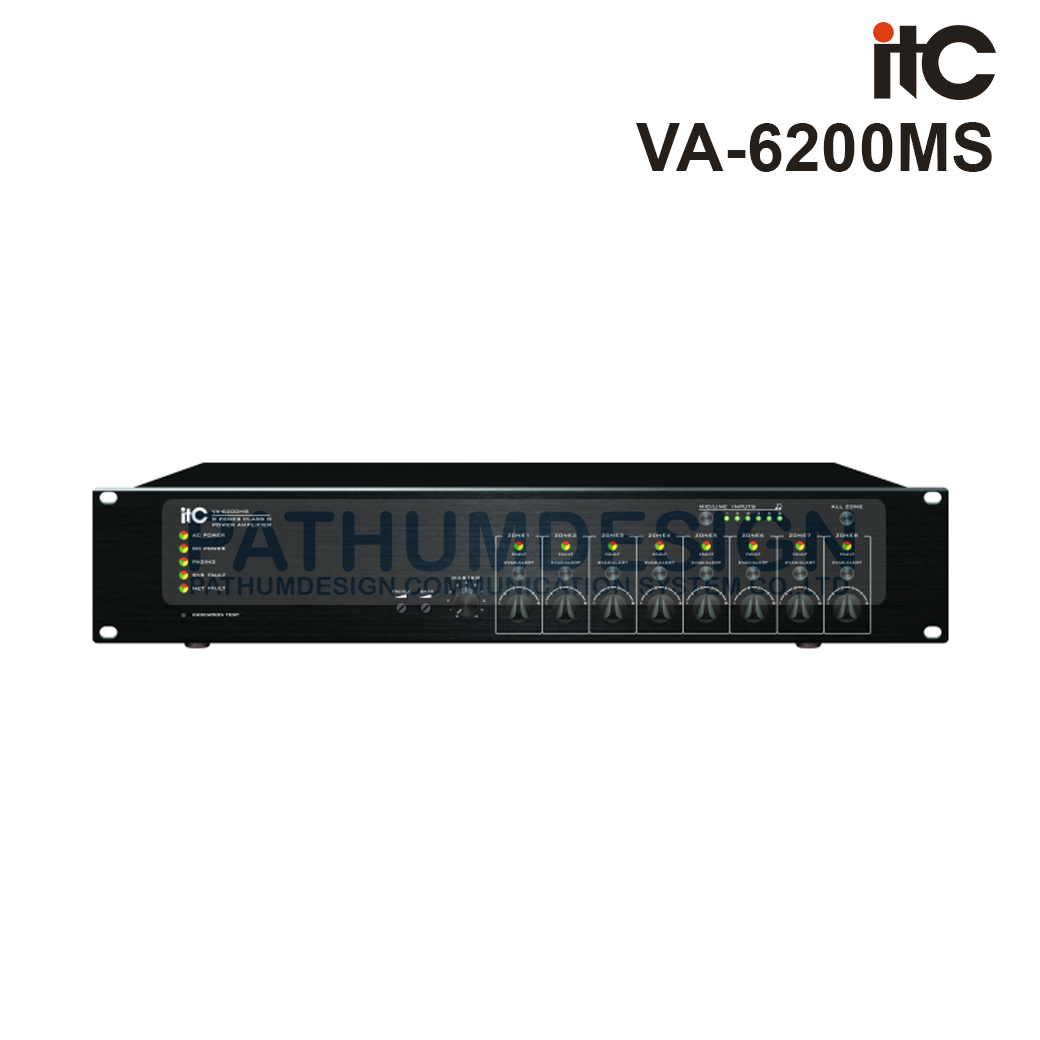

ITC VA-6200MS EVAC Extension Controller, Built-in 500W, & 8 Zone
Features
- Built-in 500W amplifier, with 8 zones and A+B independent dual speaker loop output, each zone has independent LED indicator light, output control button and volume adjustment.
- Audio processing with 6 general audio inputs, it can connect with external microphone, CD player, tuner and etc, it can play any audio source in any zone.
- Connecting with one backup amplifier, when built-in amplifier damaged, it will switch to backup
- amplifier automatically.
- Automatically monitor every zone speaker loop status in real-time
- There are 8 channels trigger input/output ports, which can trigger the pre-edited voice message to the specified zones or (trigger) the relative external power supply to realize timely warning for the relative incident.
- Extension port can connect controller and next extension device.
Back Panel
Specifications
| Product Model | VA-6200MS |
| Rated Power Output | 500W |
| MIC1-2 Input Frequency Response | 80Hz~20KHz |
| Output Voltage | 100V |
| Weight | 10.5kg |
| Maximum Current | 3A |
| Maximum Power Consumption | 600W |
| AUX3-6 Input Distortion | |
| AUX3-6 Input Frequency Response | 80Hz~20KHz |
| AUX3-6 Input SNR | >70dB |
| AUX3-6 Input Sensitivity | 350mV/10kΩ |
| Alarm Output | 8 |
| Alarm Input | 8 |
| Zone Input | 8 |
| Spare Amplifier Input | 100V |
| Spare Amplifier Audio Signal Output | 1V |
| 24V Relay Output | 8 |
| Short Circuit mode | No voltage short circuit |
| Type of cooling | air-cooled |
| Output Volume Control | 6 |
| Guard mode | delay/overheat/ short circuit/ overload |
| Supply Voltage | ~ 230V, 50/60Hz |
| Spare Voltage | 24V DC, ±20% |
| Fuse Size | 250V/5A, slow type |
| Dimensions (L x W x D) | 484 x 88 x 353mm |
| MIC1-2 Input Distortion | |
| MIC1-2 Input SNR | >65dB |
| MIC1-2 Input Sensitivity | 5mV/6/600Ω |
