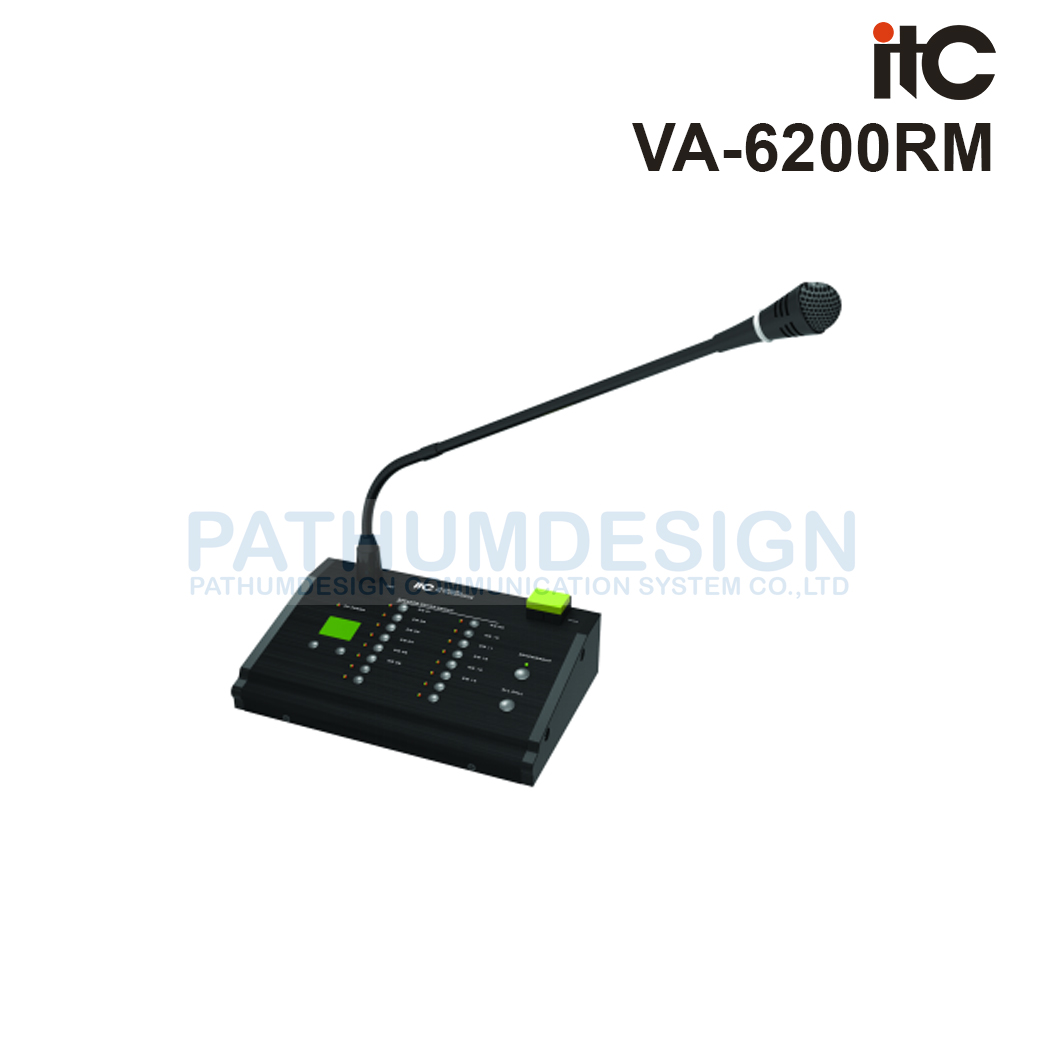

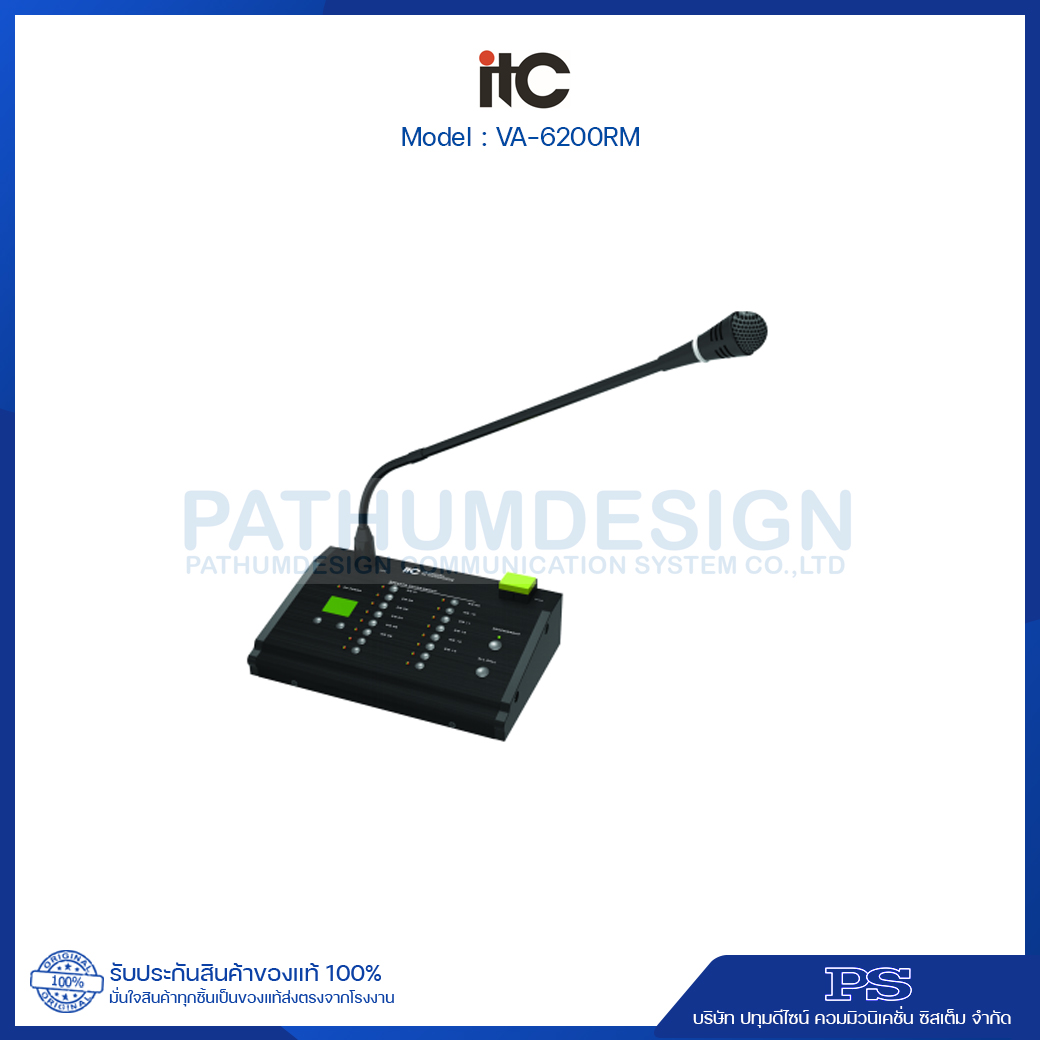

ITC VA-6200RM EVAC System Remote Paging Microphone
Features:
* Support 16 zones, group paging button.
* System max support 32 remote paging microphones.
* Microphone support anti-misoperation plug.
* Support line audio input, and input/output volume is adjustable.
* Paging priority can be set by software.
* Support 24 DC power supply.
* Remote MIC/Controller has 2 cascade interfaces, 1 in and 1 out.
* Optional paging to the main controller or extension controller.
Specifications
Model |
VA-6200RM |
MIC |
Capacitor Microphone |
MIC Sensitivity |
10mV/600Ω |
MIC Frequency Response |
200Hz~10KHz |
MIC SNR |
>65dB |
Line Input Sensitivity |
775mV/10KΩ |
Line Input Frequency Response |
80Hz~16KHz |
Line Input SNR |
>70dB |
Signal Output |
1V |
Distortion |
<1% (Rated output power ), 1KHz |
Supply Voltage |
24V DC |
Dimension (L x W x D) |
256 x 52 x 149mm |
Net Weight |
1.3kg |
Back Panel
