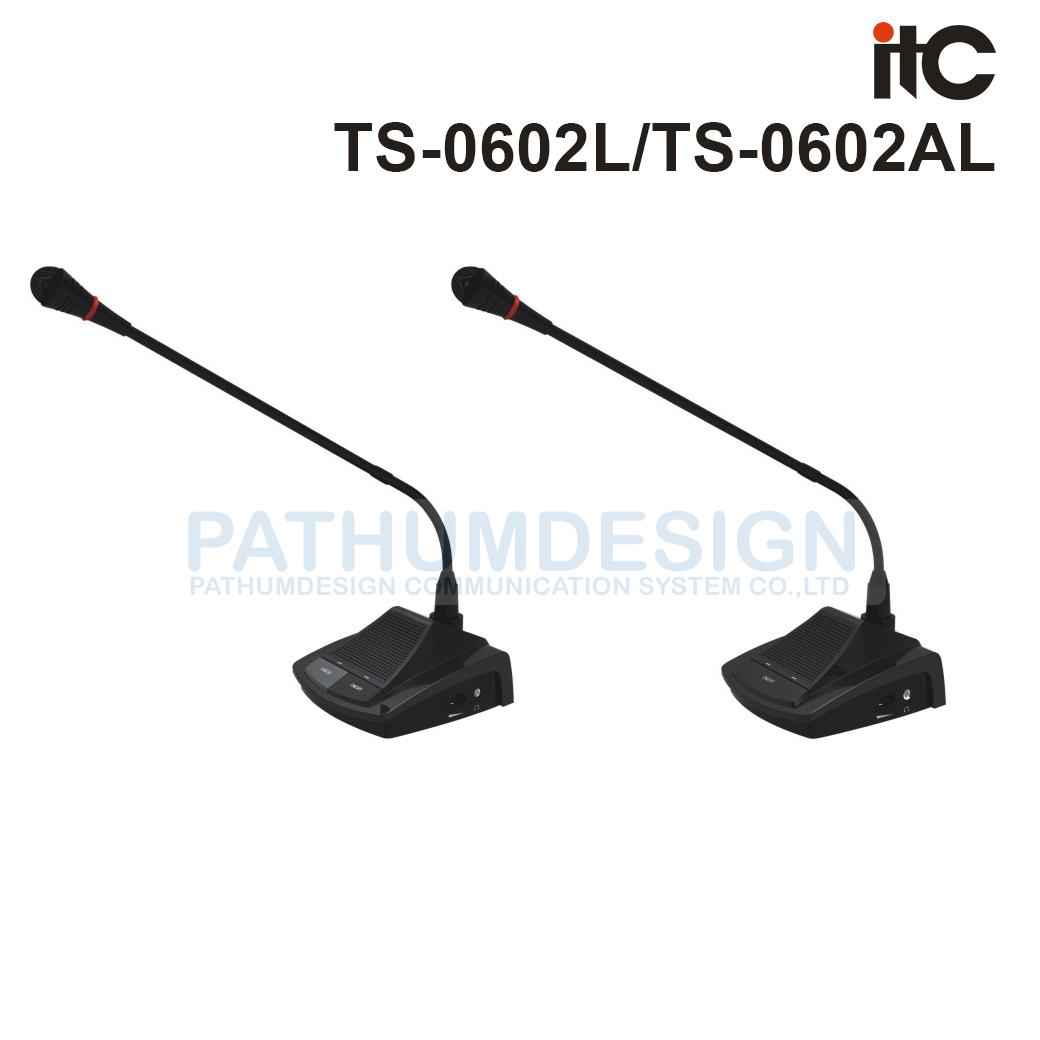

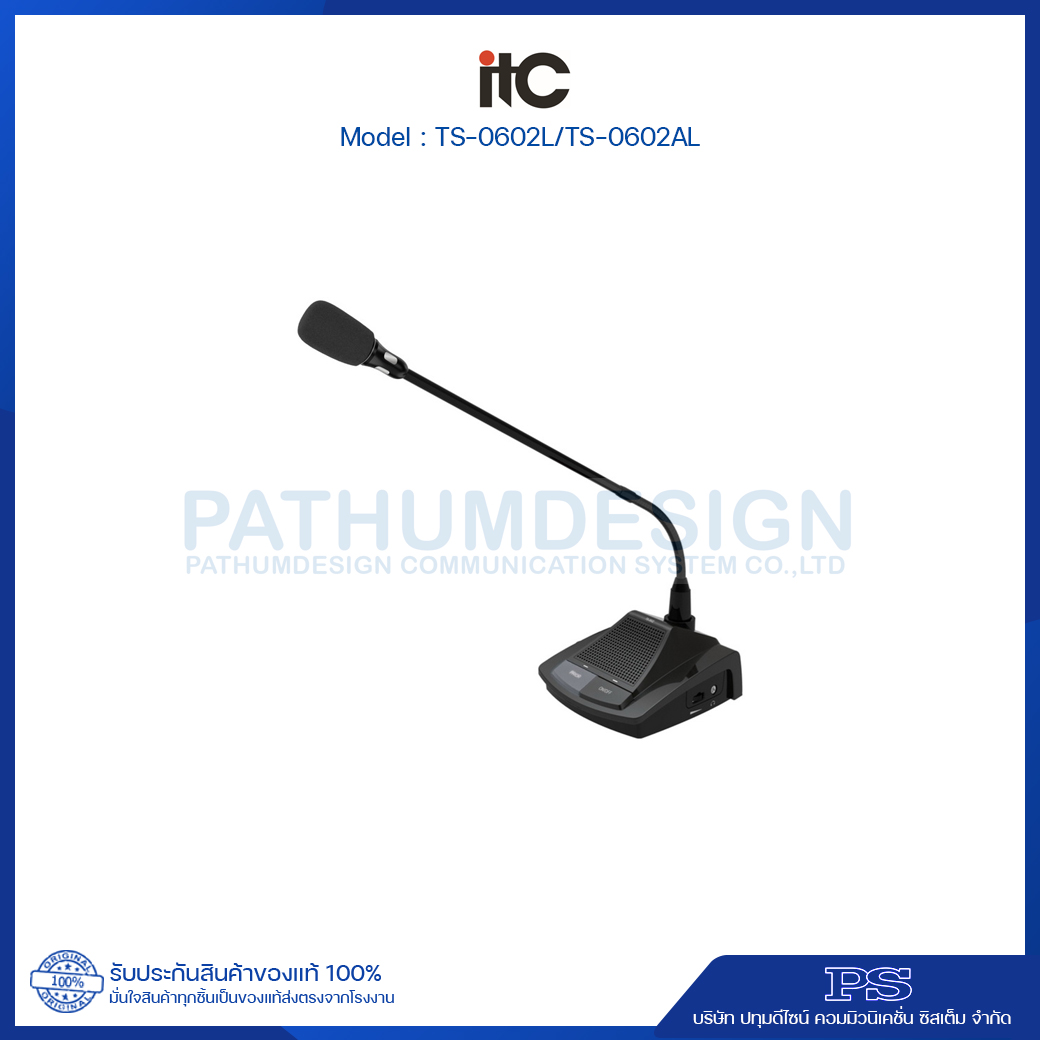

ITC TS-0602L/TS-0602AL Discussion Chairman
ไมโครโฟนประชุม ระบบดิจิตอล สำหรับประธาน /ผู้ร่วมประชุม
Feature:
* With new numerical control design.
* With ring-shaped speech indicator light that can show the status of speech. Red light stands for speaking , green light stands for waiting for a speech.
* The special microphone shield design can eliminate the low frequency sound even without using the windproof cotton cover.
* The reelable condenser microphone pole and professional large heart-shaped condenser microphones core make the unit a high sensitivity and intelligibility of the speech.
* The microphone has high and adjustable sensitivity.
* The power of the units is supplied by system host at 24V safe voltage.
* The units are connected by 8-core cables in “T” shape.
* With two groups of 3.5mm stereo sound output socket, can be used for record and earphone connection.
* Built-in HIFI speaker and volume control; with squeal-suppressed function. The built-in HIFI speaker will shut off automatically when the microphone is turned on.
* With discussion / automatic video-tracking function.
Specification:
|
Model |
TS-0602L |
TS-0602AL |
|
Microphone type |
Heart shaped projection electrets microphone |
Cardioid electret microphone |
|
Frequency response |
80Hz~16KHz |
80Hz~16KHz |
|
SNR |
1KΩ |
1KΩ |
|
Sensitivity |
-34±2dB(0dB=1V/Pa,at 1kHz) |
-34±2dB(0dB=1V/Pa,at 1kHz) |
|
Maximum SPL |
100dB(THD>3%) |
100dB(THD>3%) |
|
SNR |
>80dB |
>80dB |
|
Crosstalk |
>70dB |
>70dB |
|
Dynamic range |
>80dB |
>80dB |
|
THD |
<0.1% |
<0.1% |
|
MAX power consumption |
2W |
2W |
|
Headphone load |
8-32Ω |
8-32Ω |
|
Headphone volume |
Max 40mW |
Max 40mW |
|
Headphone jack |
3.5mm mono jack |
3.5mm mono jack |
|
Standard |
IEC60914 |
IEC60914 |
|
Connector |
Comes with 1.8m aviation 8-core |
Comes with 1.8m aviation 8-core |
|
Hand-in-hand extension |
YES |
YES |
|
Power supply |
Controller power supply DC24V |
Host power supply DC24V |
|
Colour |
Black |
Black |
|
Weight |
0.86kg |
0.86kg |
|
Microphone rod height |
409mm |
409mm |
|
Dimension (LxWxH) |
144×128×62mm |
144×128×62mm |
|
Installation method |
Desktop |
Desktop |
