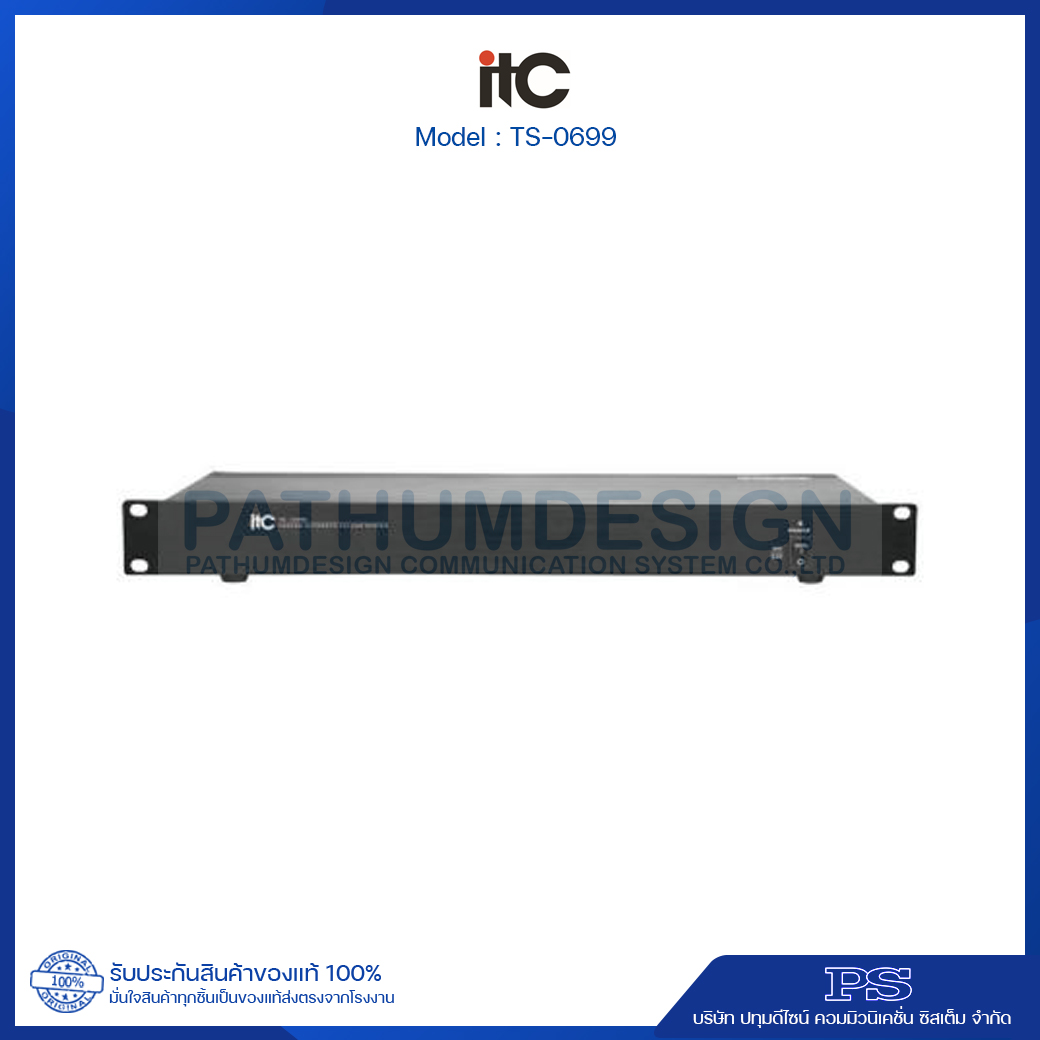

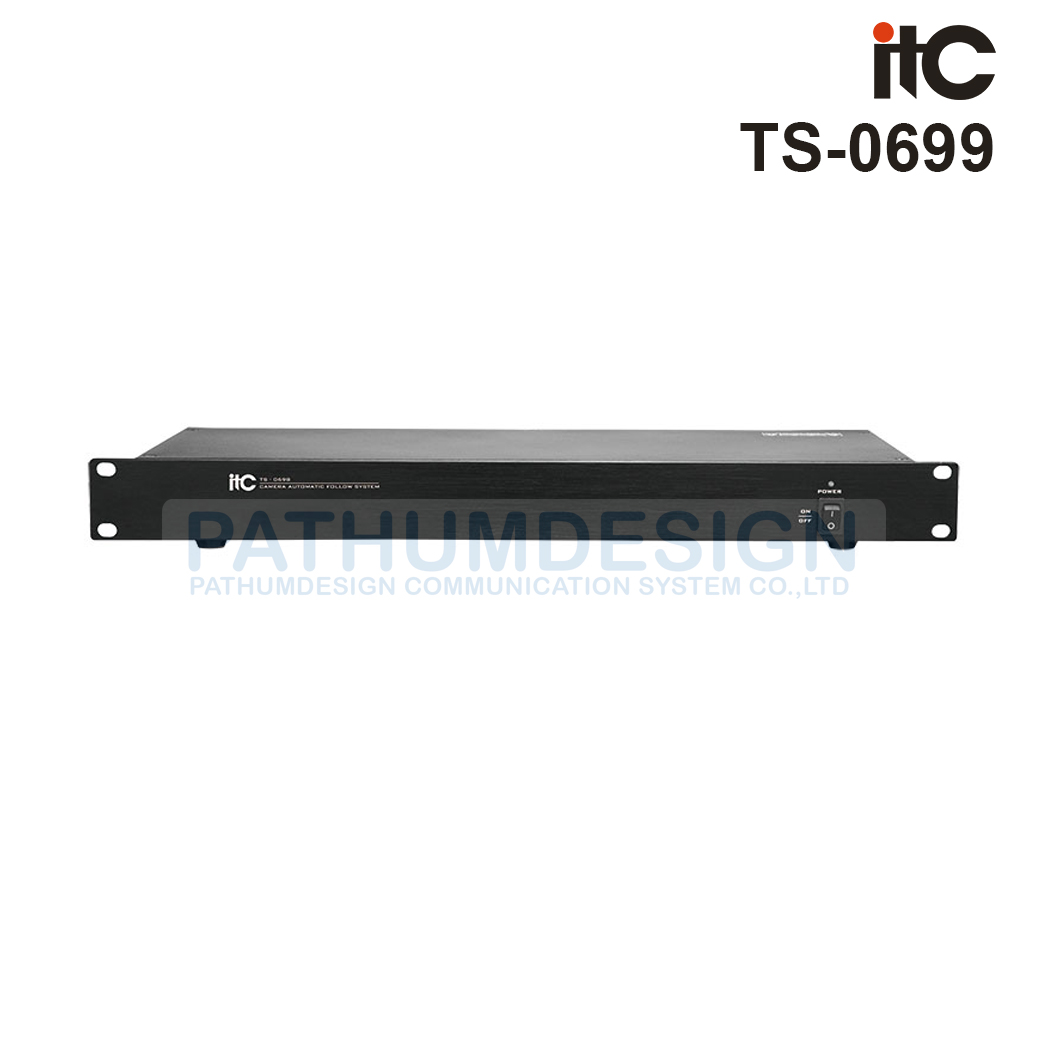

ITC TS-0699 Auto Video-Tracking Controller
เครื่องควบคุมภาพเสียงแบบอัตโนมัติ
Description:
The camera tracking controller applies digital technology and video technology to the conference system product and integrates with the digital conference system to achieve the camera tracking function.
Feature:
* 5 channel HD digital component serial interface (SD-SDI, HD-SDI and 3G-SDI) signal input.
* 2 channel HD digital component serial interface (SD-SDI, HD-SDI and 3G-SDI) signal output.
* Video input resolution up to 1920 × 1080P@60Hz.
* Video output resolution up to 1920 × 1080P@60Hz.
* Dial switch selects the camera baud rate and communication protocol.
* The serial port to connect the conference controller to achieve camera tracking function.
* Two channel camera 485 control port, up to 5 cameras can be connected.
* Support Pelco_D protocol and VISCA camera with 485 control port.
Specification:
|
Model |
TS-0699 |
|
Video Interface |
Female port BNC connector |
|
Gain |
0dB |
|
Lock Rate |
Automatic |
|
Operating Standard |
SMPTE259M; SMPTE292M; SMPTE424M |
|
Signal Type |
SD-SDI, HD-SDI, 3G-SDI |
|
Maximum Resolution |
1920×1080P@60Hz |
|
Return Loss |
<-15 dB @ 1MHz ~ 1.5GHz; <-10 dB @ 1.5GHz ~ 3GHz |
|
Maximum Rate |
2.97Gbps |
|
Input and Output Levels |
0.80Vp-p+/- 10% |
|
Input and Output Impedance |
75 Ω |
|
Balanced Type |
Adaptive |
|
Maximum Input Distance |
100 meter |
|
Control Port |
1×CONTROL,1×CONFERENCE,Control by PC or Conference controller to achieve camera tracking |
|
Power |
AC100-240V 50~60HZ |
|
Maximum Power Consumption |
15W |
|
Weight |
About 3Kg |
|
Size (mm) |
484×210×44mm |
|
Color |
Black |
|
Operating Temperature |
-10℃~ +60℃ |
|
Environment Humidity |
Relative humidity, no condensation |
