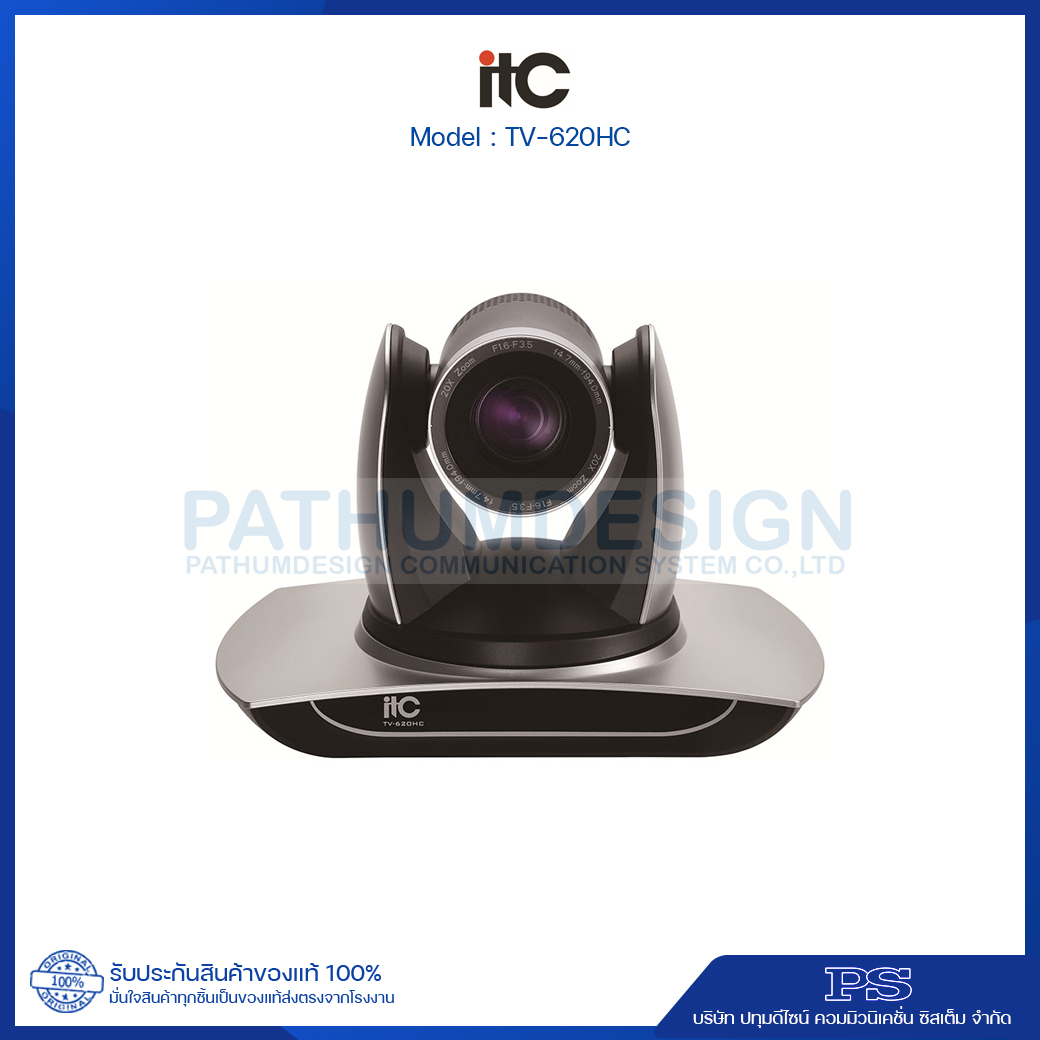

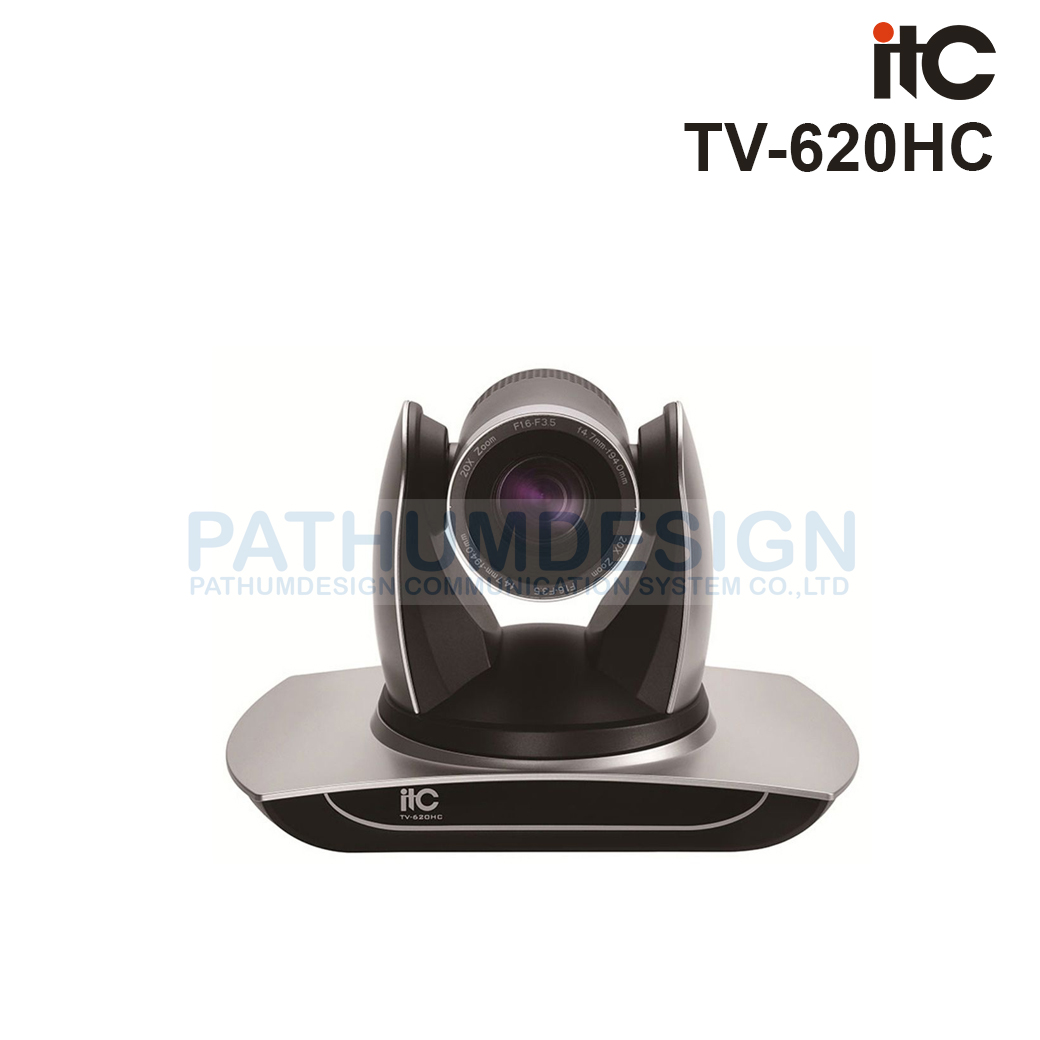

ITC TV-620HC HD Video Conference Camera, 20X, Full HD
การประชุมทางวิดีโอโดยระบบการประชุมแบบ HD ติดตามอัตโนมัติกล้อง Ptz
Description:
With completed function, excellent performance, rich interface;Advanced ISP processing technology and algorithms to make vivid image, uniform screen brightness, better light layering, high definition, good color reducibility. Support H.265 / H.264 encoding to make the picture more smooth and clear with low bandwidth . Applicable to remote education, teaching recording and broadcasting, conference system, remote training, telemedicine, trial system, emergency command system, etc.
Feature:
* Full HD image:adopt1/2.8 inch high-quality image sensor, the max resolution up to 1920×1080, the output frame rate up to 60 FPS.
* Leading auto-focus technology: advanced auto-focus algorithm makes the lens fast, accurate and stable to complete auto focus.
* Low noise high SNR: low noise CMOS effectively ensures the camera's video ultra-high SNR. Adopt advanced 2D, 3D noise reduction technology, further reduce the noise while ensuring image resolution.
* Audio input interface: support 16000,32000,44100,48000 sampling frequency, support AAC, MP3, G711 audio coding.
* Super mute PTZ: adopt high-precision stepper motor and precision motor drive control to ensure PTZ low speed operation smoothly without noise .
* Various video output interface: support DVI (HDMI), 3G-SDI, wired LAN; 3G-SDI support 1080P60.
* Various video compression standard: support H.265 / H.264 video compression; support compression up to 1920x1080 resolution 60 FPS; support 2×1920×1080 resolution 30 FPS.
* Various network protocols: support ONVIF, GB/T28181, RTSP, RTMP protocol, RTP multicast, meanwhile support RTMP push mode, easy link streaming media server (Wowza, FMS)
* Low power consumption sleep function: support low power consumption sleep / wake up, power consumption less than 400mW when sleep.
* Various control protocol: support VISCA, PELCO-D, PELCO-P protocol, support automatic identification protocol. Support network full command VISCA control protocol.
* Multiple Preset Bits: Support up to 255 presets (remote control setting adjust to 10).
Specification:
|
Model |
TV-620HC |
|
Image Sensor |
1/2.8 inch high quality CMOS sensor. |
|
Effective Pixels |
2.07 million,16: 9 |
|
Video Signal |
ST interface video format: 1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97 |
|
Lens Zoom |
20× optical zoom, f＝4.7~94mm. 10× digital zoom |
|
Perspective |
2.9° (narrow angle) ~55.4° (wide angle) |
|
Aperture Coefficient |
F1.6 ～ F3.5 |
|
Min Illumination |
0.5Lux(F1.8, AGC ON) |
|
Digital Noise Reduction |
2D﹠3D DNR. |
|
White Balance |
Automatic/ manual/one key white balance 3000K/ 4000K/5000K/6500K |
|
Focus |
Automatic/ manual/one key focus |
|
SNR |
>55dB |
|
Video Interface |
DVI（HDMI）、 3G-SDI、LAN |
|
Image Stream |
Dual stream output |
|
Video Compression Format |
H.265, H.264; Dual stream output. |
|
Control Signal Interface |
RS-232, with loop RS-232 output |
|
Control protocol |
VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps |
|
RS485 Interface |
1 Channel RS485 Control Interface |
|
Audio Input Interface |
A-IN, Dual channeltwo channel 3.5mm line input |
|
Audio Compression Format |
AAC、MP3、G.711 |
|
Network Interface |
100M network interface(10/100 BASE-TX), support network VISCA control protocol |
|
Network Protocol |
RTSP, RTMP, ONVIF, GB/T28181, RTP multicast |
|
Power Interface |
HEC3800 power socket (DC12V) |
|
Horizontal Rotation |
-170°～+170° |
|
Pitching Rotation |
-30°～+90° |
|
Horizontal Control Speed |
0.1 ～100°/s |
|
Pitch Control Speed |
0.1～45°/s |
|
Power Adapter |
Input AC110V-AC220V,Output DC12V/1.5A |
|
Input Current |
1A（MAX） |
|
Power Consumption |
12W(MAX) |
|
Working Temperature |
-10℃～+50℃ |
|
Working Humidity |
20%～80% Non condensing |
|
Size（W*H*D） |
258mm×172mm×169mm |
|
Weight |
1.54kg |
